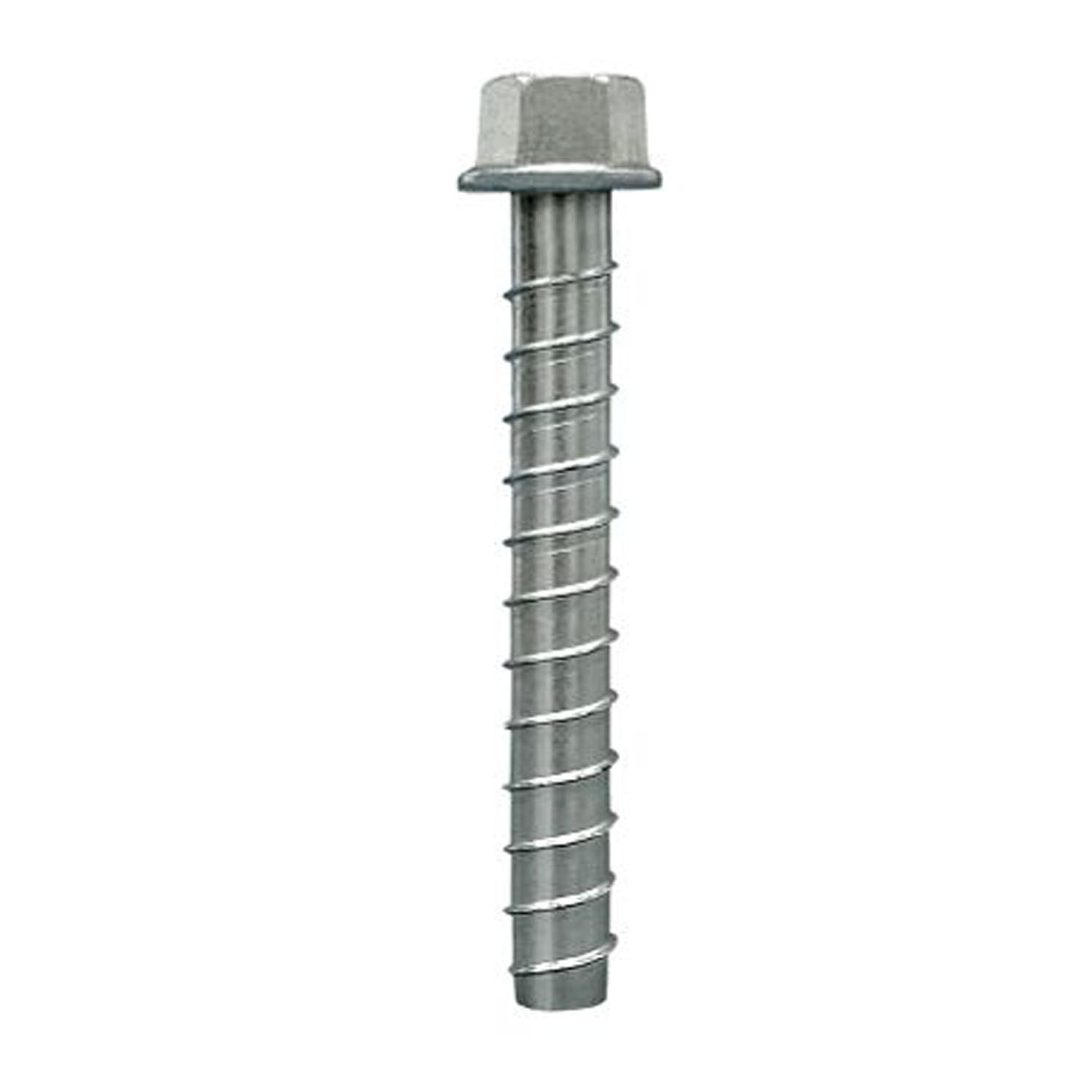

ZINC PLATED TITEN HD HEAVY-DUTY SCREW ANCHORS (MULTIPLE SIZES AVAILABLE)

ZINC PLATED TITEN HD HEAVY-DUTY SCREW ANCHORS (MULTIPLE SIZES AVAILABLE)

1/4" X 2-3/4" COUNTERSUNK

Simpson Strong-Tie

581158

THDB25234CS

3/8" X 3" COUNTERSUNK

Simpson Strong-Tie

581159

THD37300CS

1/2" X 3"

Simpson Strong-Tie

580045

THD50300H

1/2" X 4"

Simpson Strong-Tie

581247

THD50400H

1/2" X 5"

Simpson Strong-Tie

581248

THD50500H

1/2" X 6"

Simpson Strong-Tie

581249

THD50600H

1/4" X 1-7/8"

Simpson Strong-Tie

581255

THDB25178H

1/4" X 2-3/4"

Simpson Strong-Tie

581256

THDB25234H

1/4" X 3"

Simpson Strong-Tie

581257

THDB25300H

1/4" X 4"

Simpson Strong-Tie

581258

THDB25400H

3/4" X 10"

Simpson Strong-Tie

581251

THD75100H

3/4" X 4"

Simpson Strong-Tie

581252

THD75400H

3/4" X 5"

Simpson Strong-Tie

581253

THD75500H

3/4" X 6"

Simpson Strong-Tie

581262

THDT75600H

3/4" X 7"

Simpson Strong-Tie

581145

THD75700H

3/8" X 2-1/2"

Simpson Strong-Tie

581245

THD37212H

6/8" X 4"

Simpson Strong-Tie

581260

THDB62400H

6/8" X 5"

Simpson Strong-Tie

581261

THDB62500H

6/8" X 6"

Simpson Strong-Tie

580046

THDB62600H

Description

A high-strength screw anchor for use in cracked and uncracked concrete, as well as uncracked masonry. The Titen HD offers low installation torque and outstanding performance. Designed for use in dry, interior, non-corrosive environments or temporary outdoor applications.

Key Features

  • Tested in accordance with ACI 355.2, AC193 and AC106
  • Qualified for static, wind and seismic loading conditions
  • Thread design undercuts to efficiently transfer the load to the base material
  • Standard fractional sizes
  • Specialized heat-treating process creates tip hardness for better cutting without compromising the ductility
  • No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
  • Hex-washer head requires no separate washer, unless required by code, and provides a clean installed appearance
  • Removable — ideal for temporary anchoring (e.g., formwork, bracing) or applications where fixtures may need to be moved
  • Reuse of the anchor will not achieve listed loads and is not recommended
