WEDGE-ALL WEDGE ANCHORS (MULTIPLE OPTIONS AVAILABLE)

WEDGE-ALL WEDGE ANCHORS (MULTIPLE OPTIONS AVAILABLE)

1" X 12" ZINC

Simpson Strong-Tie

581154

WA11200

1" X 6" ZINC

Simpson Strong-Tie

581131

WA16000

3/8" X 2-1/4" ZINC

Simpson Strong-Tie

581142

WA37214

3/8" X 2-3/4" ZINC

Simpson Strong-Tie

581149

WA37234

3/8" X 2-3/4" STAINLESS STEEL

Simpson Strong-Tie

581307

WA372344SS

3/8" X 3" STAINLESS STEEL

Simpson Strong-Tie

581119

WA373004SS

3/8" X 3-1/2" ZINC

Simpson Strong-Tie

581308

WA37312

3/8" X 3-3/4" ZINC

Simpson Strong-Tie

581129

WA37334

3/8" X 3-3/4" STAINLESS STEEL

Simpson Strong-Tie

581108

WA373344SS

3/8" X 5" ZINC

Simpson Strong-Tie

2104268

WA37500

3/8" X 5" STAINLESS STEEL

Simpson Strong-Tie

581122

WA375004SS

1/2" X 4-1/4" STAINLESS STEEL

Simpson Strong-Tie

581310

WA504144SS

1/2" X 4-1/4" GALVANIZED

Simpson Strong-Tie

581311

WA50414MG

1/2" X 5-1/2" STAINLESS STEEL

Simpson Strong-Tie

581124

WA505124SS

1/2" X 8-1/2" ZINC

Simpson Strong-Tie

581125

WA50812

5/8" X 10" ZINC

Simpson Strong-Tie

581312

WA62100

5/8" X 3-1/2" ZINC

Simpson Strong-Tie

581155

WA62312

5/8" X 5" GALVANIZED

Simpson Strong-Tie

581313

WA62500MG

5/8" X 5" STAINLESS STEEL

Simpson Strong-Tie

581314

WA626004SS

5/8" X 8-1/2" ZINC

Simpson Strong-Tie

581316

WA62812

3/4" X 10" ZINC

Simpson Strong-Tie

581317

WA75100

3/4" X 4-1/4" ZINC

Simpson Strong-Tie

581150

WA75414

3/4" X 5-1/2" STAINLESS STEEL

Simpson Strong-Tie

581120

WA755124SS

3/4" X 7" ZINC

Simpson Strong-Tie

581147

WA75700

3/4" X 8-1/2" ZINC

Simpson Strong-Tie

581148

WA75812

7/8" X 6" ZINC

Simpson Strong-Tie

581123

WA87600

7/8" X 8" ZINC

Simpson Strong-Tie

581322

WA87800

Description

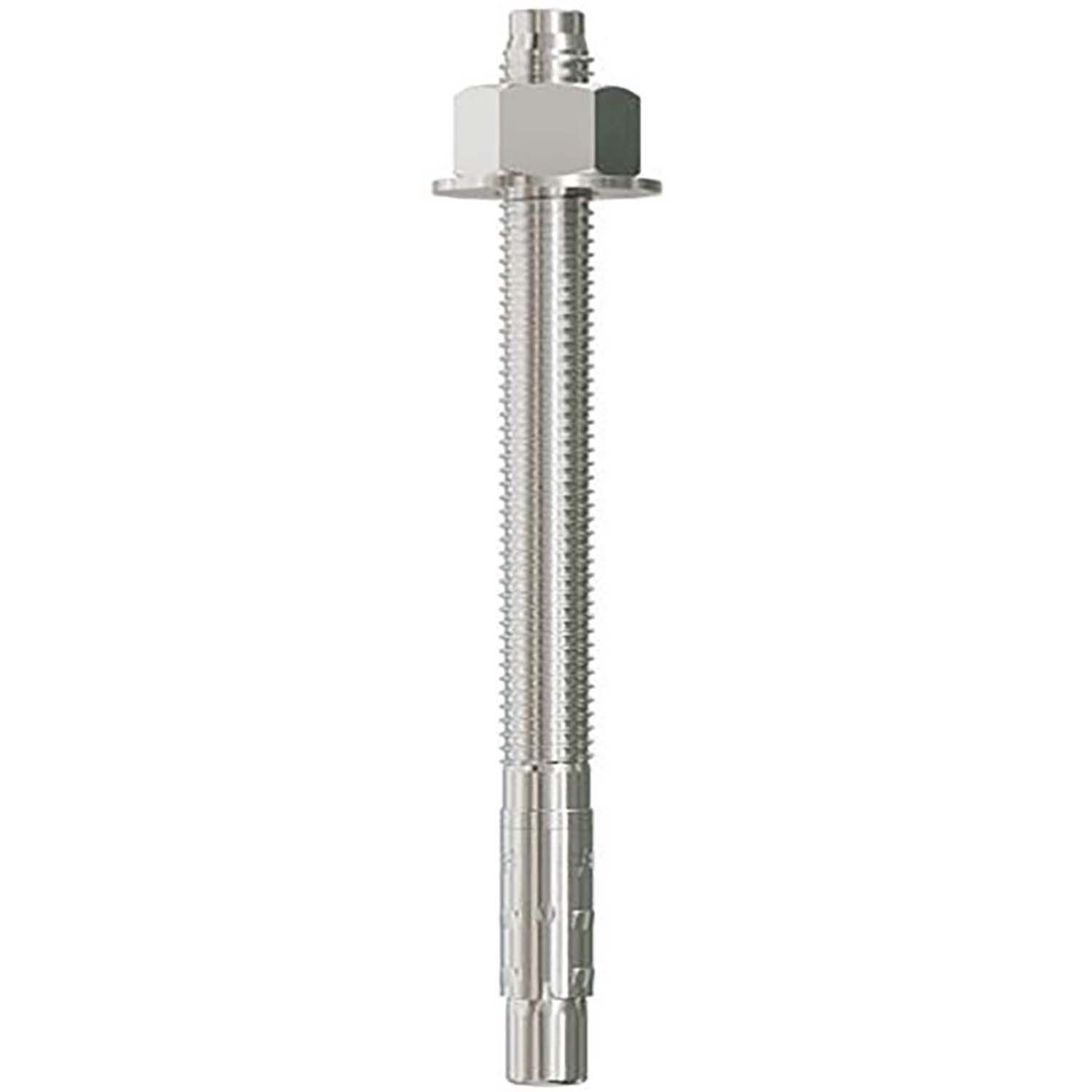

The Wedge-All wedge-style expansion anchor is intended for use in solid concrete or grout-filled masonry. This anchor is best suited in installations where a building code approval for seismic and cracked/uncracked concrete is not required. Threaded studs are set by tightening the nut to the specified torque.

Key Features

  • One-piece, wrap-around clip ensures uniform holding capacity
  • Threaded end is chamfered for ease of starting nut
  • Available in a wide range of diameters and lengths
Wedge-All Design Information.pdf
Wedge-All Design Information.pdf
