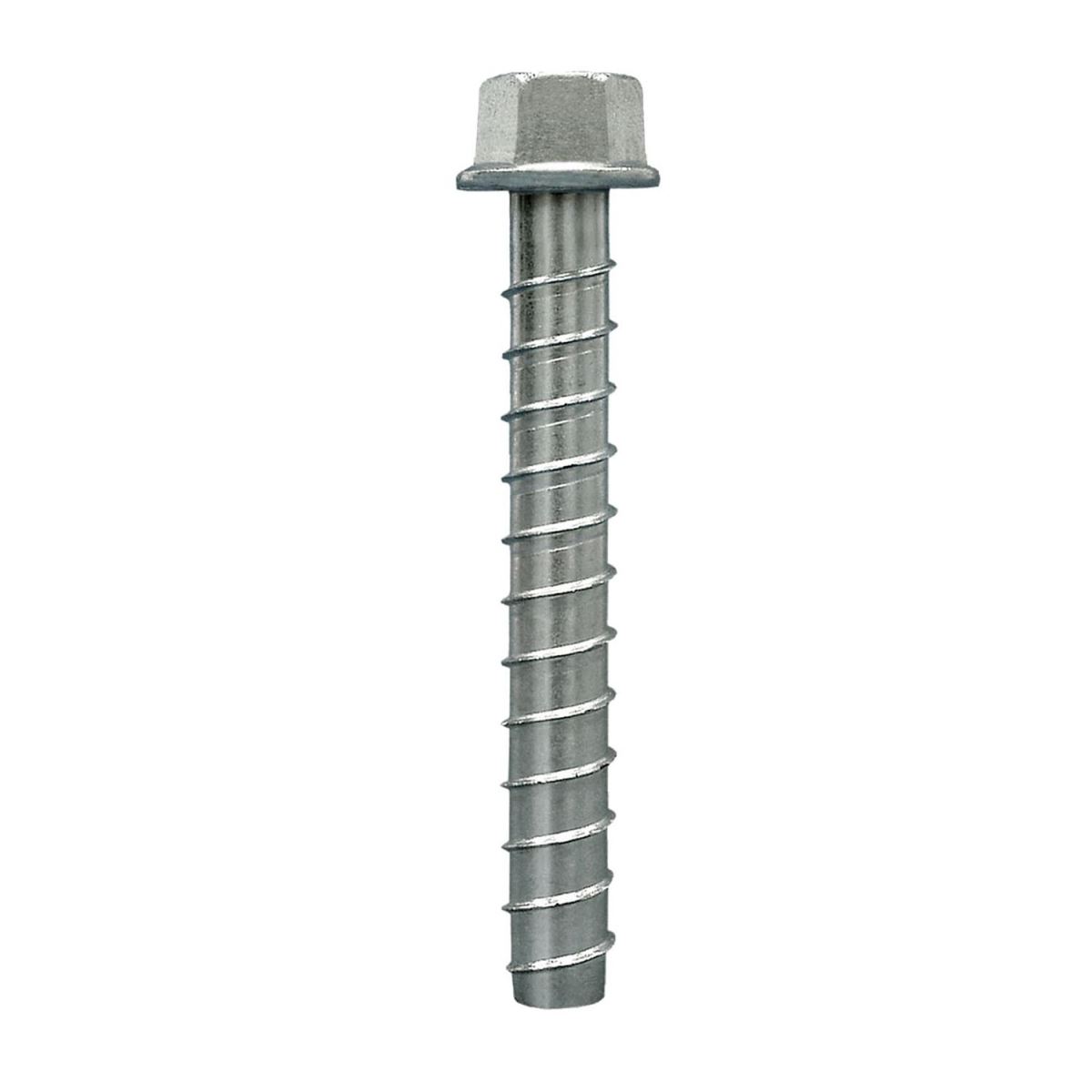

TITEN MECHANICALLY GALVANIZED HD HEAVY-DUTY SCREW ANCHOR (MULTIPLE SIZES AVAILABLE)
3/8" X 4"
Simpson Strong-Tie
581137
THD37400H
3/8" X 5"
Simpson Strong-Tie
581143
THD37500H
3/8" X 3"
Simpson Strong-Tie
581246
THD37300H
Description
A high-strength screw anchor for use in cracked and uncracked concrete, as well as uncracked masonry. The Titen HD offers low installation torque and outstanding performance. Designed for use in dry, interior, non-corrosive environments or temporary outdoor applications.
Key Features
- Tested in accordance with ACI 355.2, AC193 and AC106
- Qualified for static, wind and seismic loading conditions
- Thread design undercuts to efficiently transfer the load to the base material
- Standard fractional sizes
- Specialized heat-treating process creates tip hardness for better cutting without compromising the ductility
- No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
- Hex-washer head requires no separate washer, unless required by code, and provides a clean installed appearance
- Removable — ideal for temporary anchoring (e.g., formwork, bracing) or applications where fixtures may need to be moved
- Reuse of the anchor will not achieve listed loads and is not recommended
