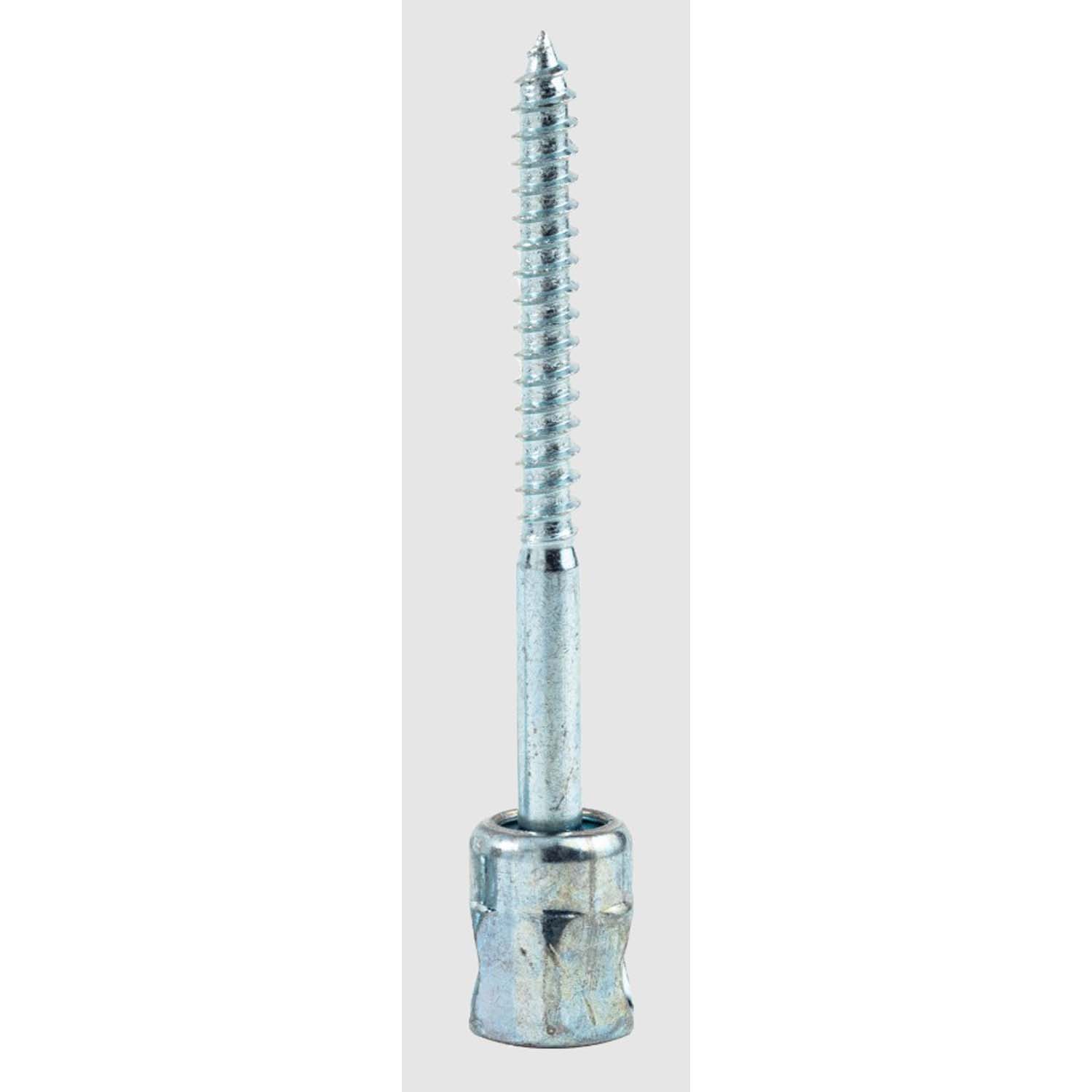

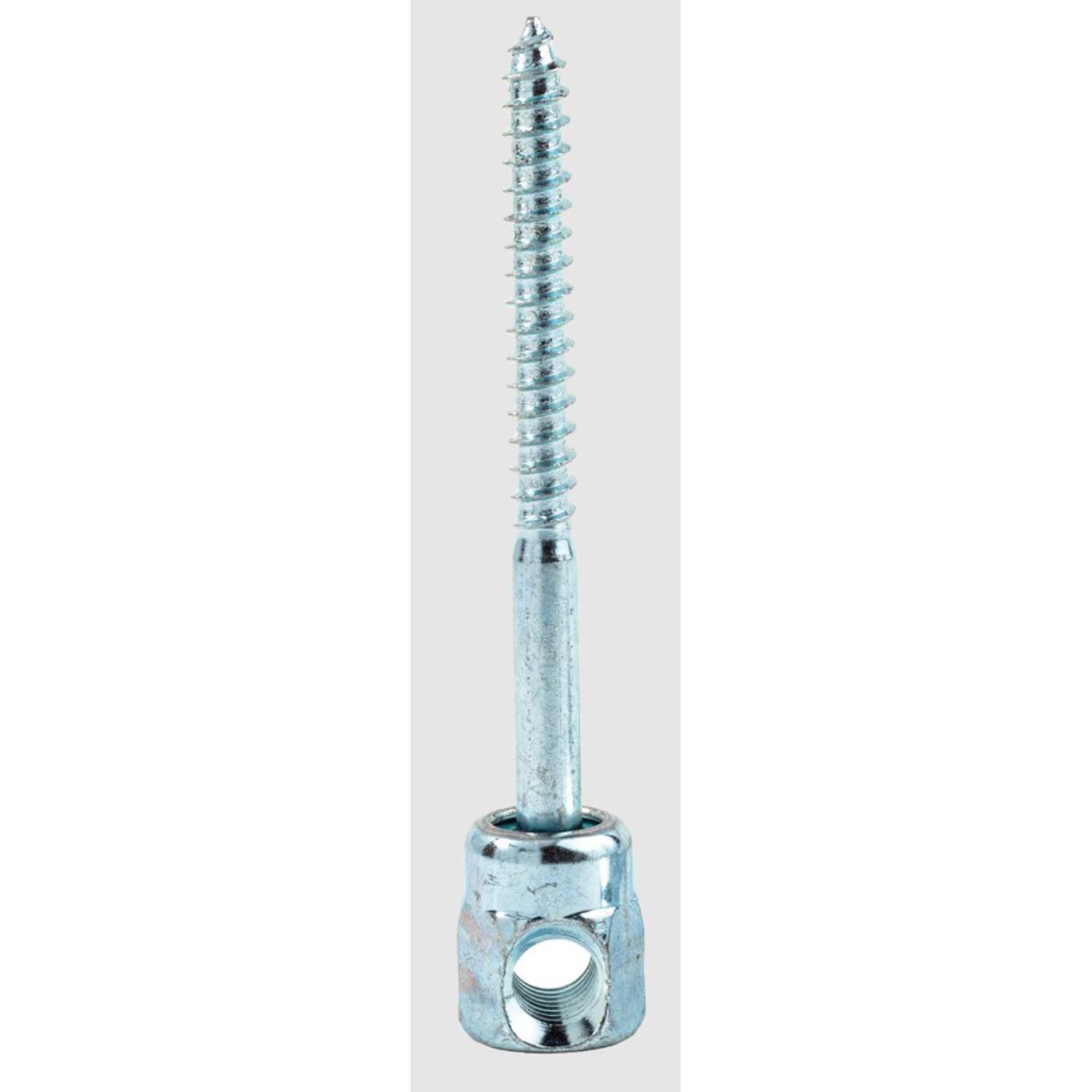

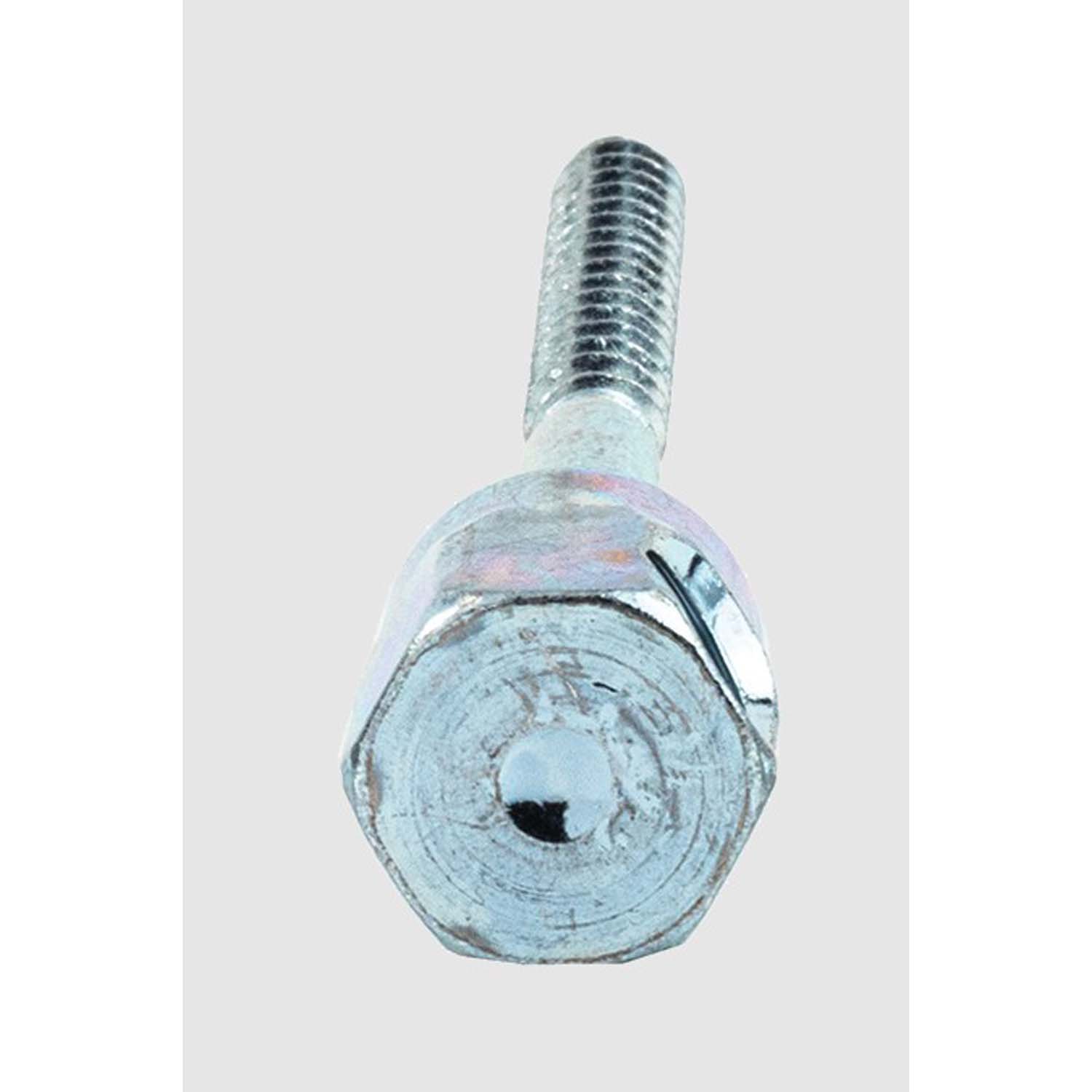

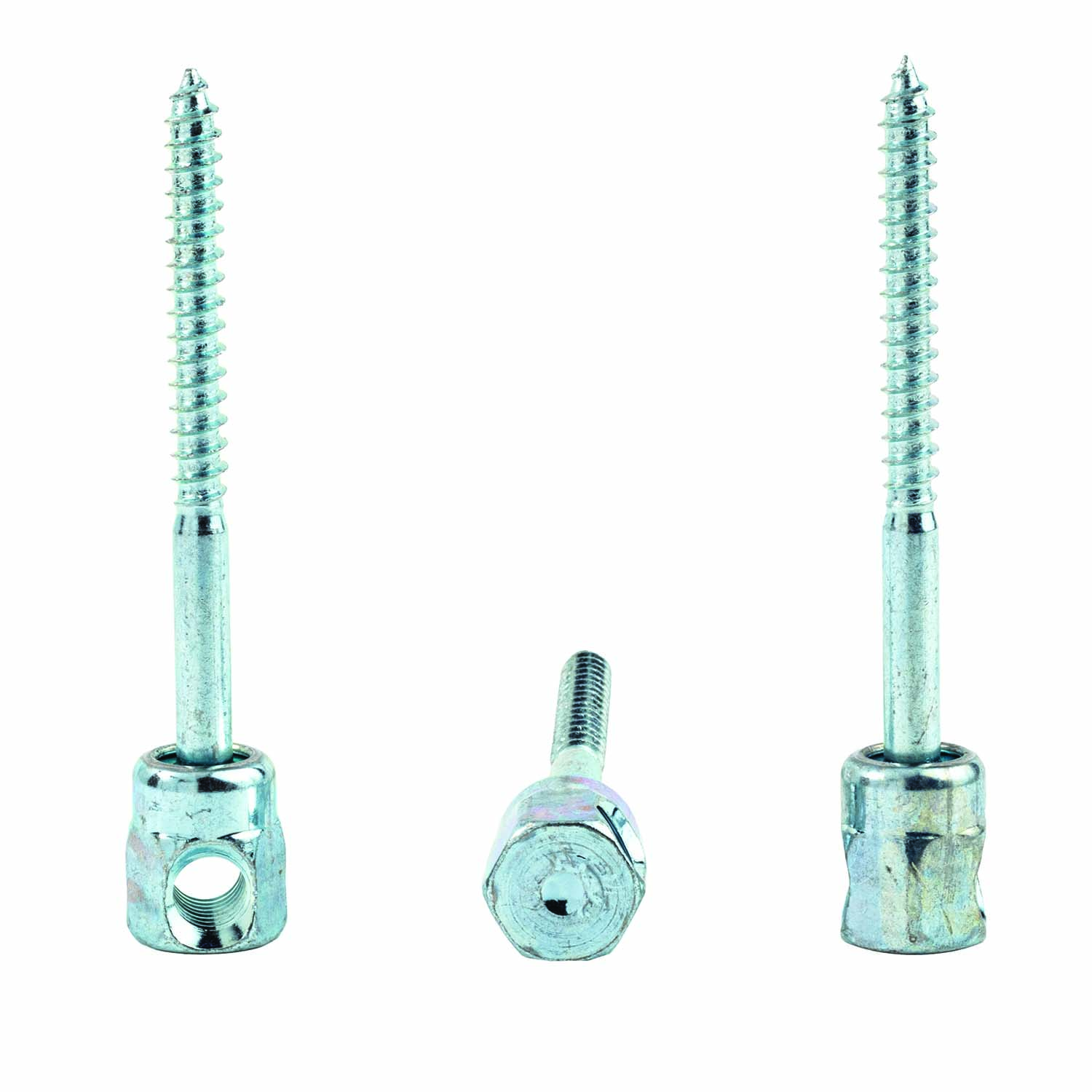

SWG 30 3 SIDEWINDER FOR WOOD FOR 3/8 ROD

Key Features

• No pre-drilling required
• Quick to install using the Sammy Nut Driver with an 18V cordless drill
• Saves time from traditional methods
• Reduces installation costs
• Assembled in the U.S.A.
• Specifications:
  • Product Length: 3"
  • Product Diameter: 1/4"
  • Material: Steel
  • Finish: Electro-Zinc
  • Material Grade: •C1022 screw •C1010 cap
  • Approvals (FM/UL): No
  • Rod Size: 3/8" (0.375)
  • Part Number: 8023925
  • Model: SWG 30
  • Screw Description: SWG 30 3" SDWNDR FOR WOOD 3/8" ROD
  • Installation Tool: #14 SW Red Nut Driver (Part #: 8114910)
  • Mount Orientation: Horozontal
  • Substrate: Wood
  • UL Test Load: 1500lbs
  • Ultimate Shear (Fir lbs): 1884 (Fir)
• Applications:
  • Hanging pipe and fire sprinkler systems
  • Hanging electrical fixtures, conduit, lighting systems, and cable trays
  • Hanging HVAC ductwork
  • Installs horizontally into the side of wood structures for hanging threaded rod
