Product | |
---|---|
1/4" X 1-3/4" 100 PACK
Dewalt 581330 PFM1411020 |
|
1/4" X 3" 100 PACK
Dewalt 581332 PFM1411100 |
|
3/8" X 4" 50 PACK
Dewalt 581334 PFM1411240 |
|
3/8" X 4" 50 PACK
Dewalt 581336 PFM1411280 |
|
3/8" X 5" 50 PACK
Dewalt 581338 PFM1411300 |
|
1/2" X 3" 50 PACK
Dewalt 581340 PFM1411380 |
|
1/2" X 4" 50 PACK
Dewalt 581341 PFM1411420 |
|
1/2" X 5" 25 PACK
Dewalt 581343 PFM1411460 |
|
1/2" X 6" 25 PACK
Dewalt 581345 PFM1411480 |
|
5/8" X 4" 25 PACK
Dewalt 581347 PFM1411580 |
|
5/8" X 5" 25 PACK
Dewalt 581350 PFM1411600 |
|
5/8" X 6" 25 PACK
Dewalt 581353 PFM1411640 |
|
3/4" X 4" 20 PACK
Dewalt 581356 PFM1411720 |
|
3/4" X 5" 20 PACK
Dewalt 581358 PFM1411760 |
|
3/4" X 6" 20 PACK
Dewalt 581360 PFM1411800 |
|
3/4" X 8" 10 PACK
Dewalt 581362 PFM1411840 |
Description

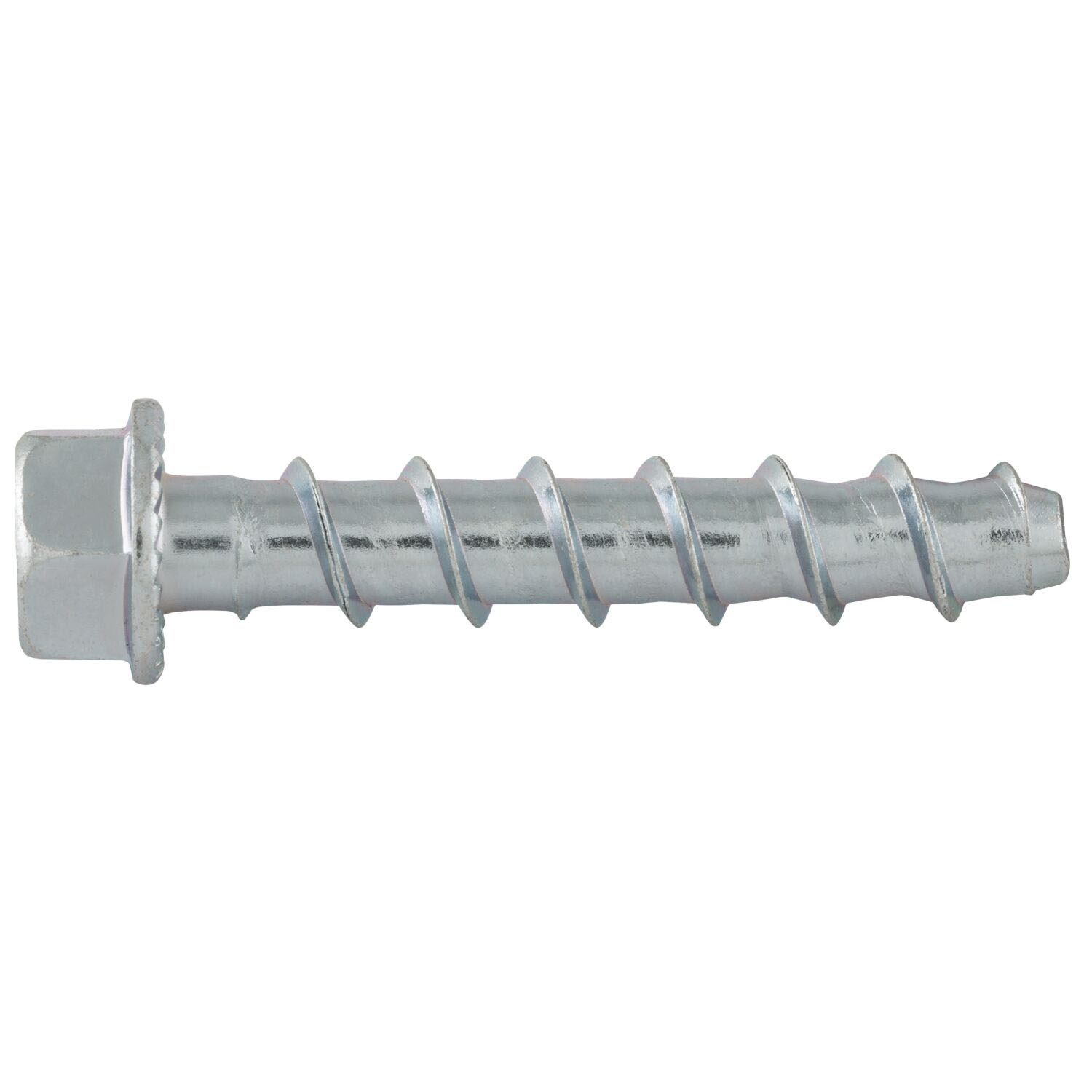

The Screw-Bolt+ anchor is a one piece, heavy duty screw anchor with a finished hex head or flat head (countersunk). Suitable base materials include normal-weight concrete, sand-lightweight concrete, concrete over steel deck, concrete masonry and solid clay brick. It is simple to install, easy to identify and fully removable. The patented thread design, designed for use with standard ANSI drill bits, reduces installation torque and enhances productivity. The steel threads along the anchor body tap into the hole during installation to provide keyed engagement and allow for reduced edge and spacing distances. The Screw-Bolt+ is available as bright zinc-plated or mechanically galvanized plating.
Key Features
- Designed for standard ANSI tolerance drill bits
- Patented thread design offers toughened threads for tapping high strength concrete
- Low installation torque in concrete and masonry
- Universal product for concrete and grouted/solid masonry
- Ratchet teeth on underside of hex washer head lock against the fixture
- Can be installed closer to a free edge than traditional expansion anchors
- Fully removable and reinstallable in same hole (see www.DEWALT.com)
- Fast installation with powered impact wrench, but can also be installed manually

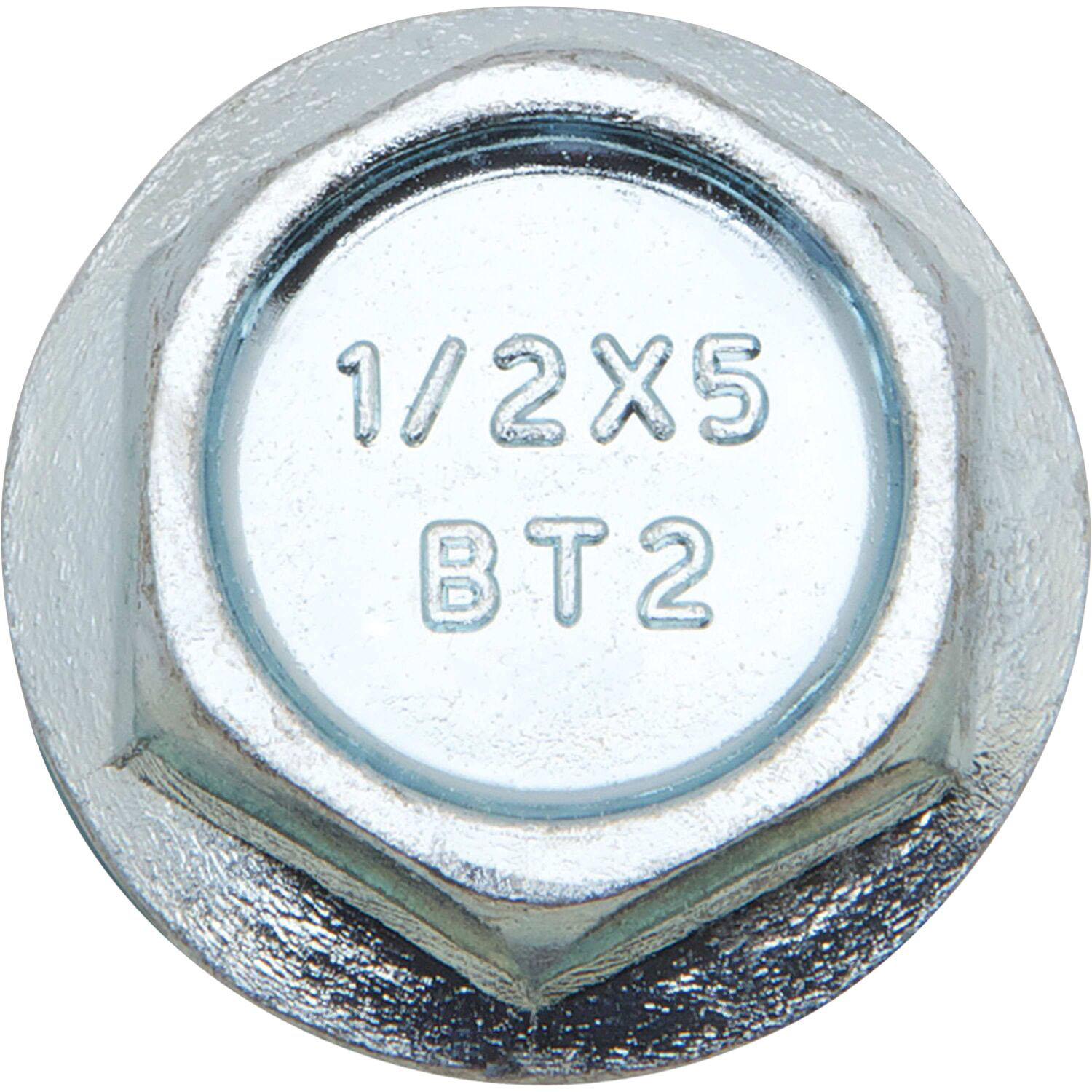

- Diameter, length and identifying marking stamped on head of each anchor
- One-piece, finished head design
