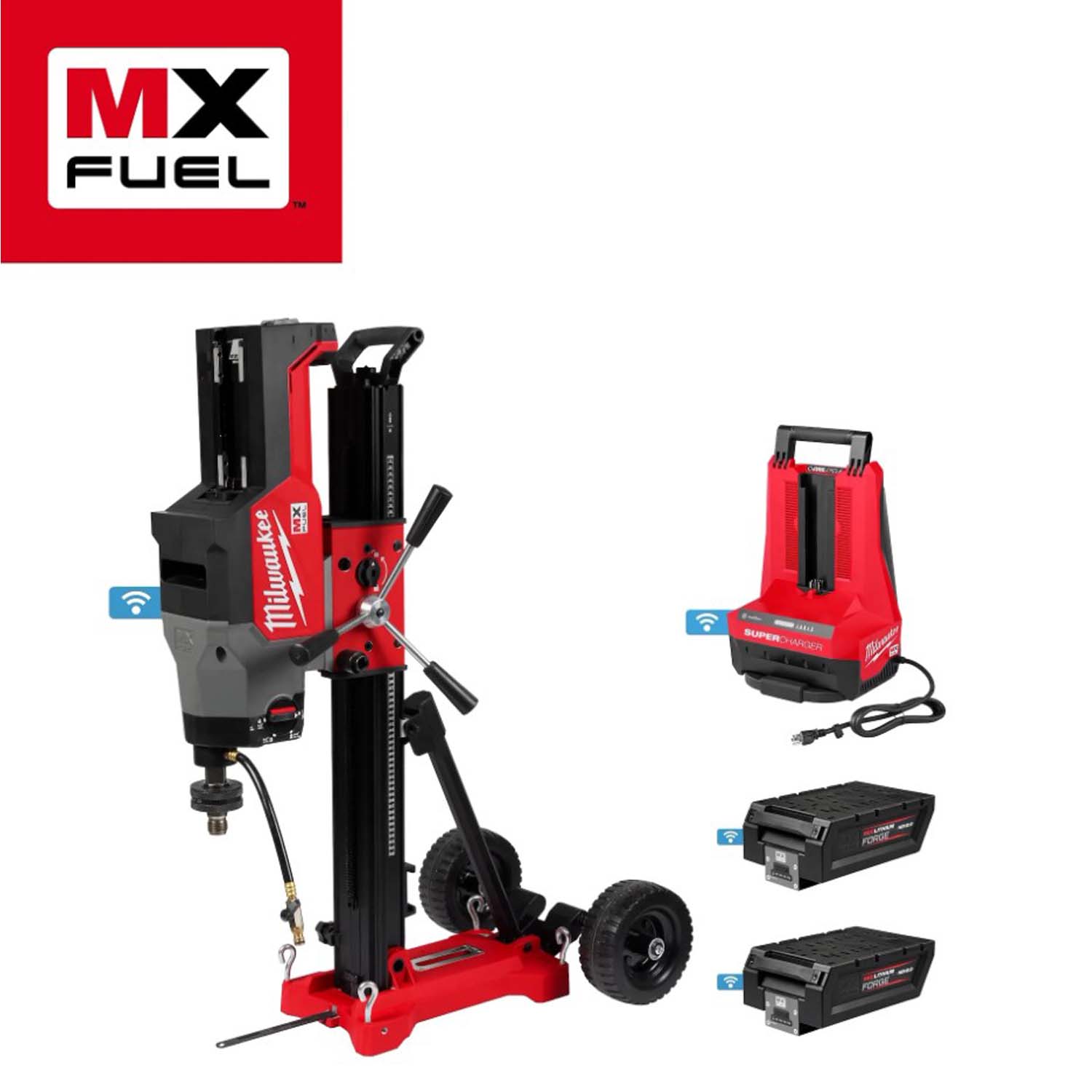

MX FUEL CORE RIG WITH STAND KIT

Description

Our MX FUEL™ Core Rig w/ Stand delivers unmatched productivity with the power to core up to 14” holes in reinforced concrete, the easiest coring anywhere, and four 10” holes through reinforced concrete per charge. The POWERSTATE™ Brushless Motor delivers the power to complete heavy-duty applications, coring up to 14” holes in reinforced concrete. REDLINK PLUS™ Intelligence ensures maximum performance and protection from overload, overheating, and over-discharge. The intuitive bit removal device, 3-piece modular design, and elimination of a cord maximize productivity, providing you with the easiest coring experience onsite. The MX FUEL™ Core Rig w/ Stand is kitted with two (2) MX FUEL™ REDLITHIUM™ FORGE™ HD12.0 batteries & a Super Charger. In just 65 minutes, you can charge an MX FUEL™ REDLITHIUM™ FORGE™ HD12.0 to 100%. Both the MX FUEL™ REDLITHIUM™ FORGE™ HD12.0 Battery & MX FUEL™ Super Charger are COOL-CYCLE™ Capable. COOL-CYCLE™ Active Cooling System provides high-speed cooling for less downtime. The active cooling feature works with MX™ batteries that have COOL-CYCLE™ capability. The core rig is compatible with all MX FUEL™ REDLITHIUM™ batteries, giving you the hardest working and most reliable power for equipment. Our MX FUEL™ Core Rig w/ Stand is ONE-KEY™ compatible so you can track, manage, and secure your equipment.

Key Features

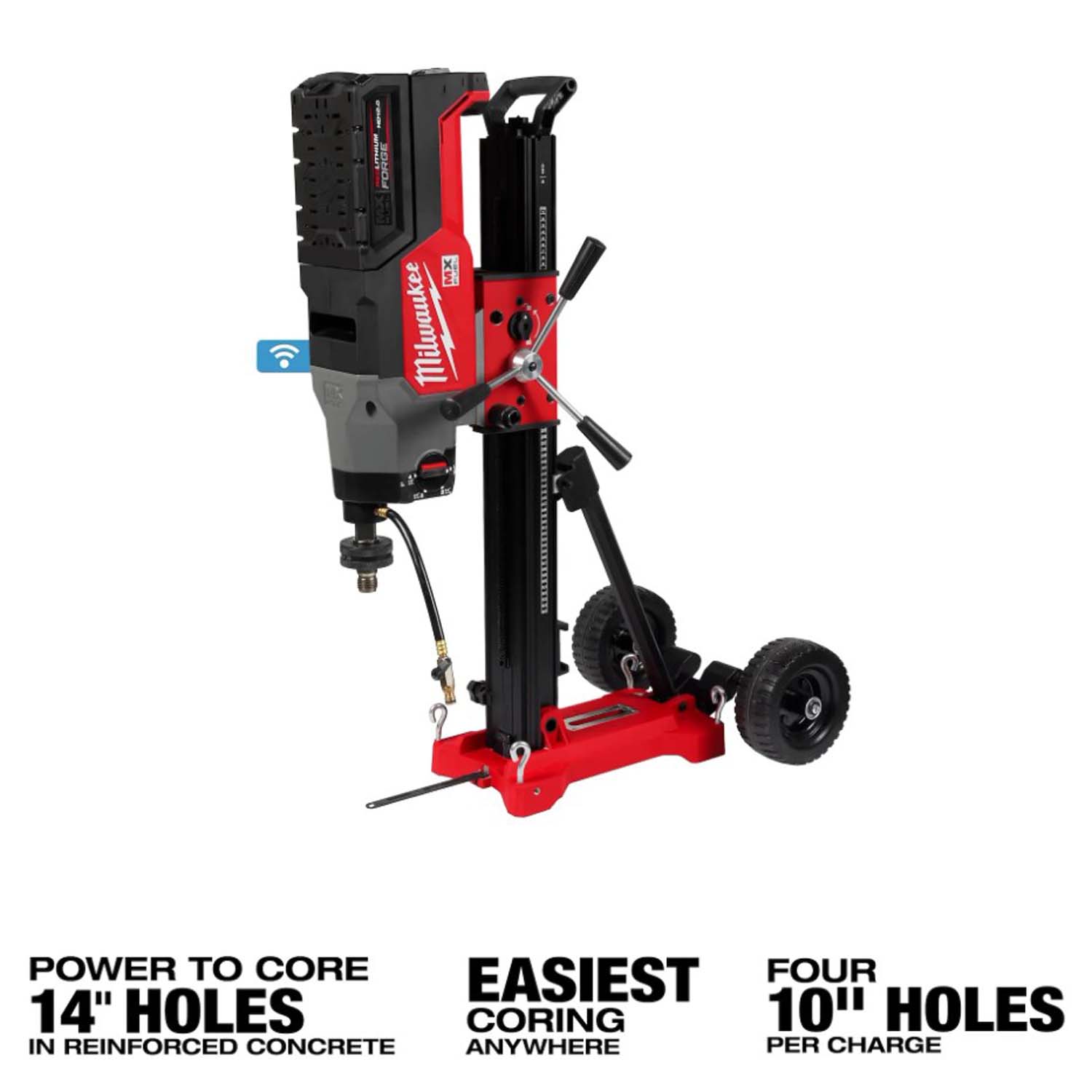

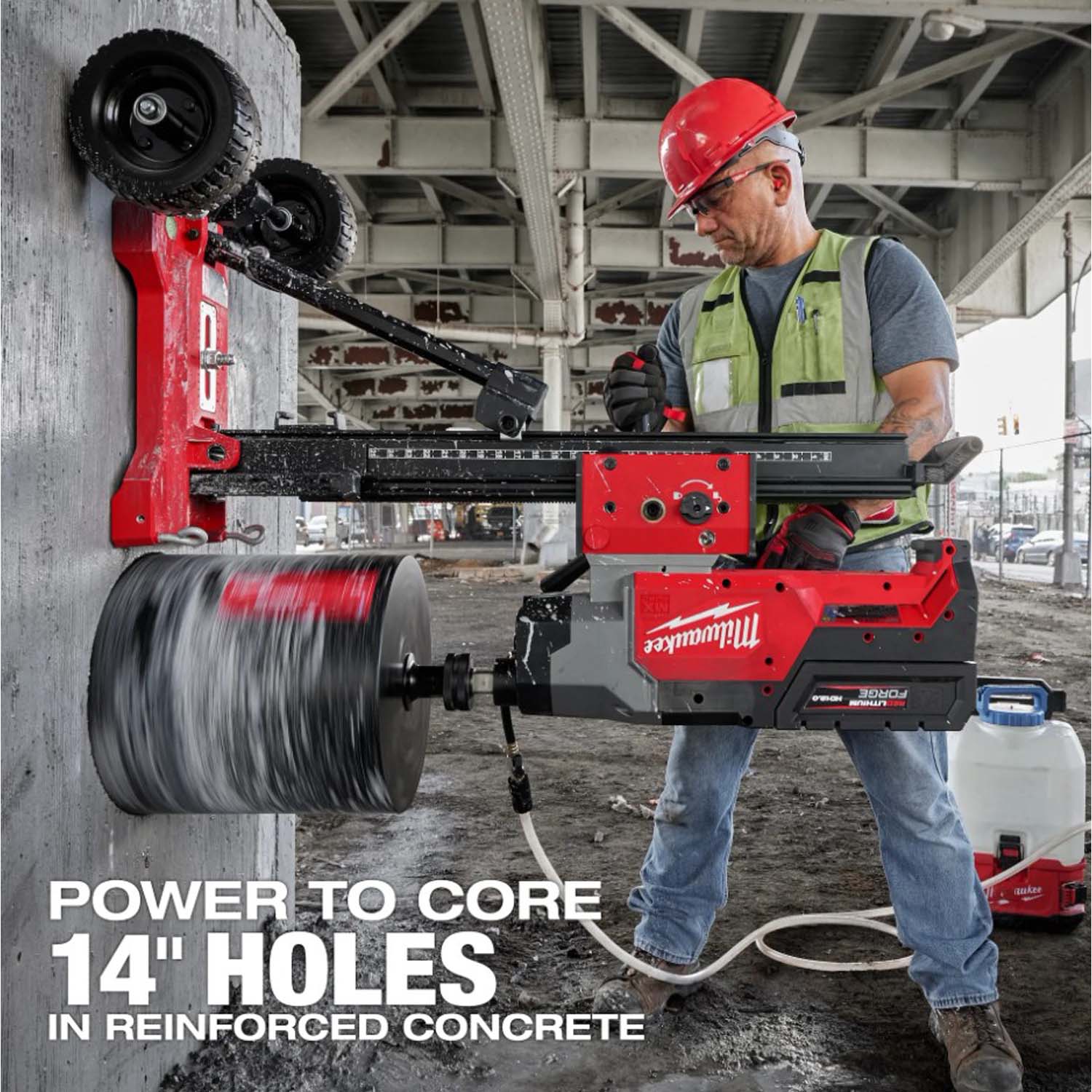

• Power to core up to 14” holes in reinforced concrete

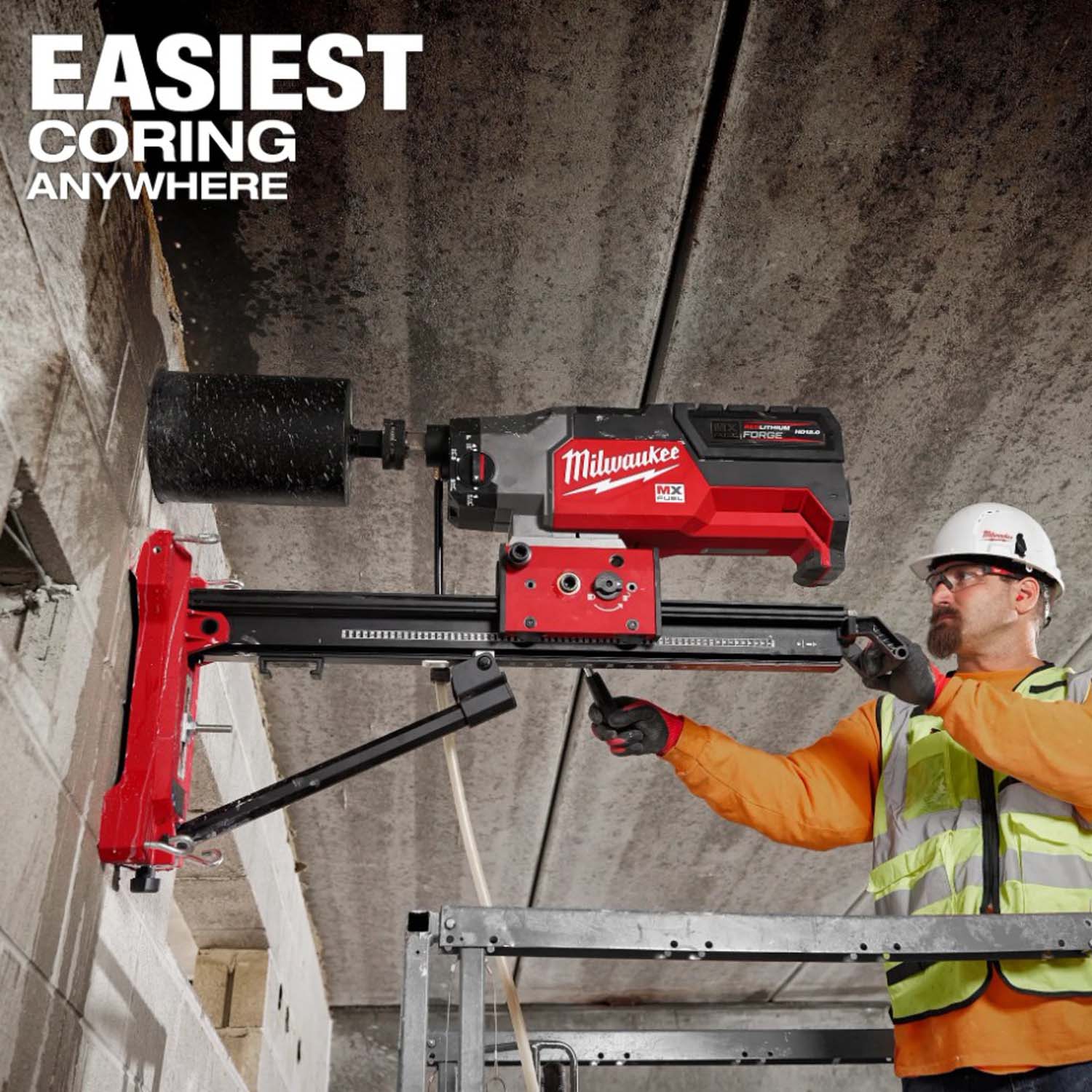

• Easiest coring anywhere

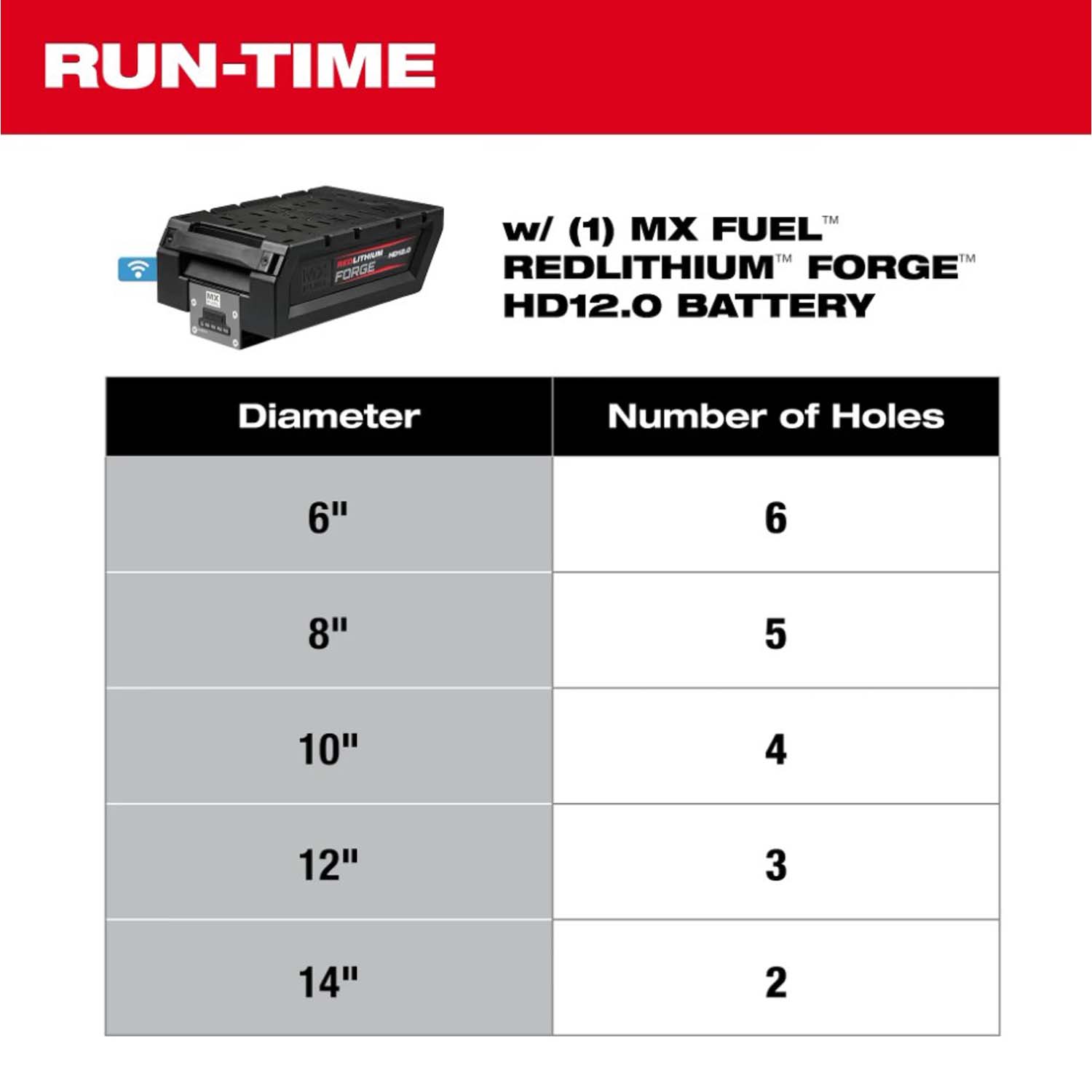

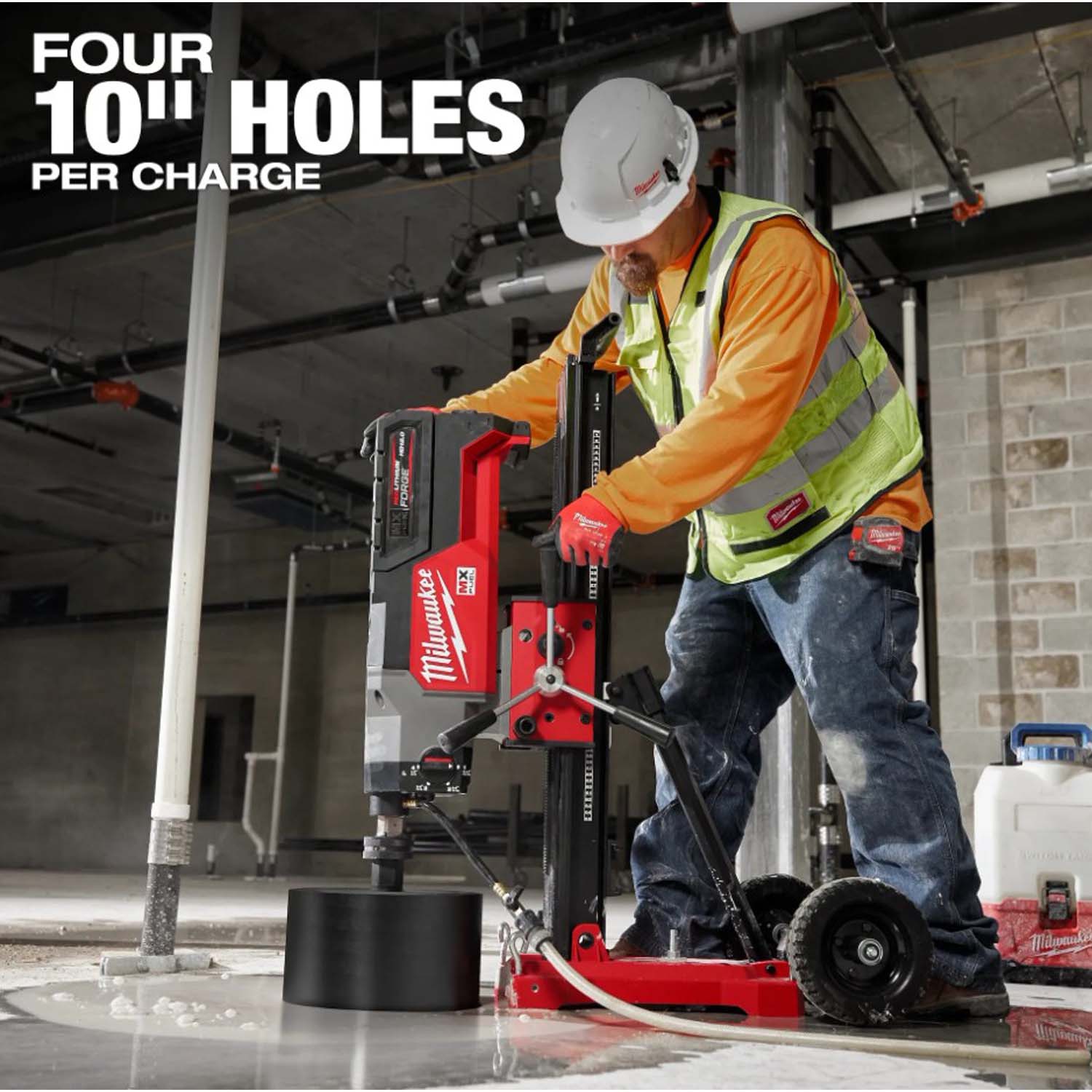

• Four 10” holes per charge

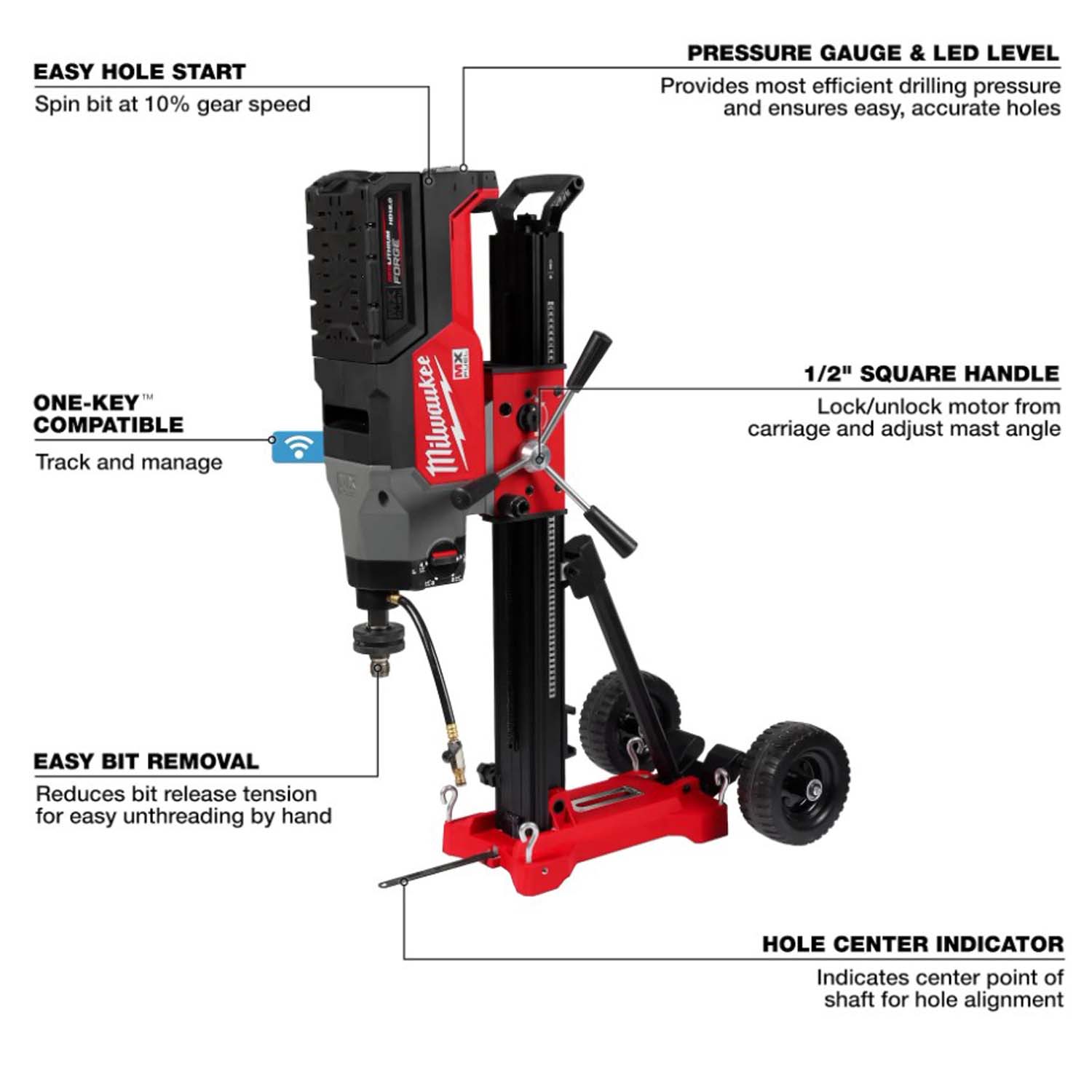

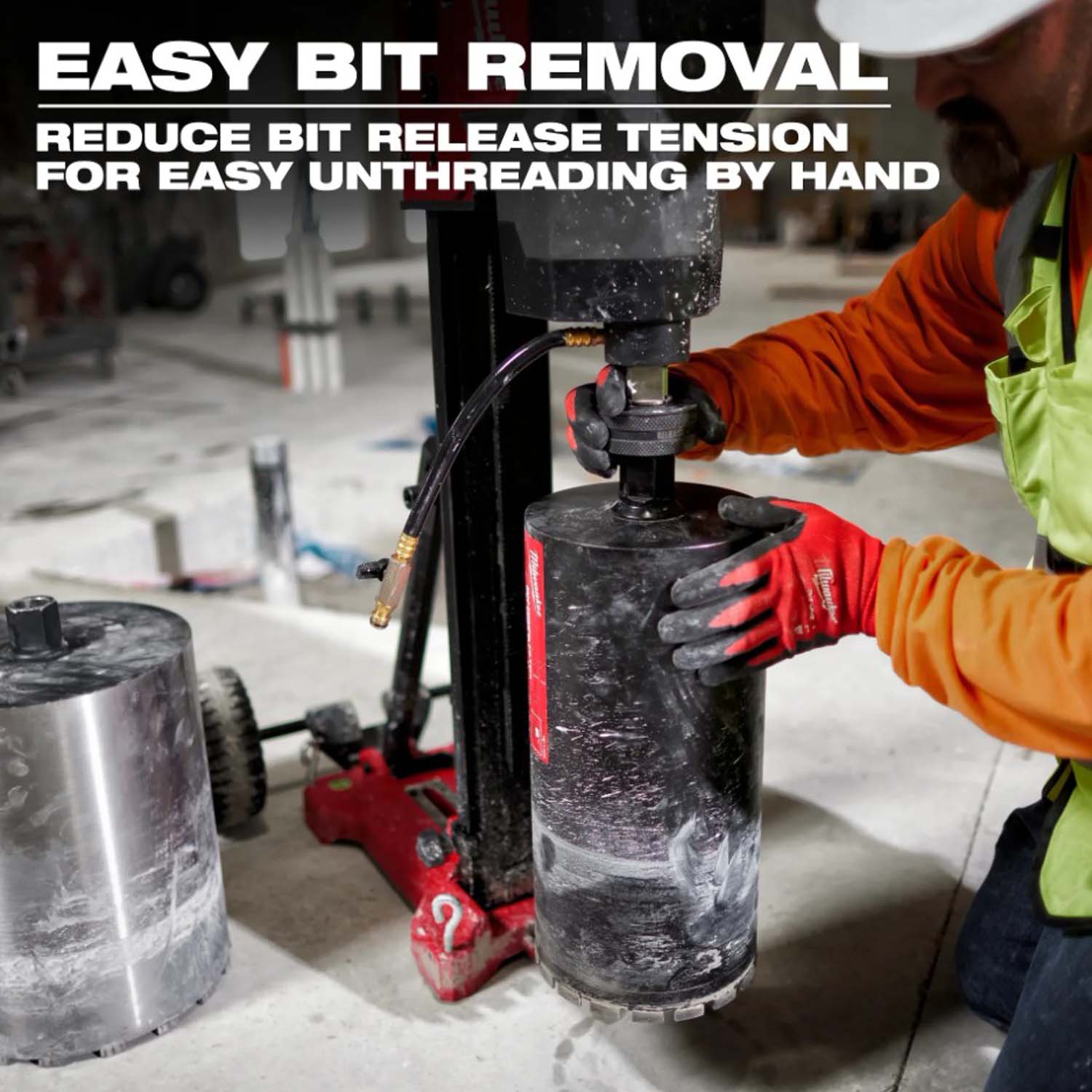

• Quick unthreading with onboard bit removal device
• 3-piece modularity for easy set up and transportation on the jobsite
• Pressure gauge & LED level for more efficient coring
• Hole start function for precise placement of larger holes
• Hole center indicator
• Compatible with ONE-KEY™ to track and manage
• 2-year equipment warranty & 2-year battery warranty

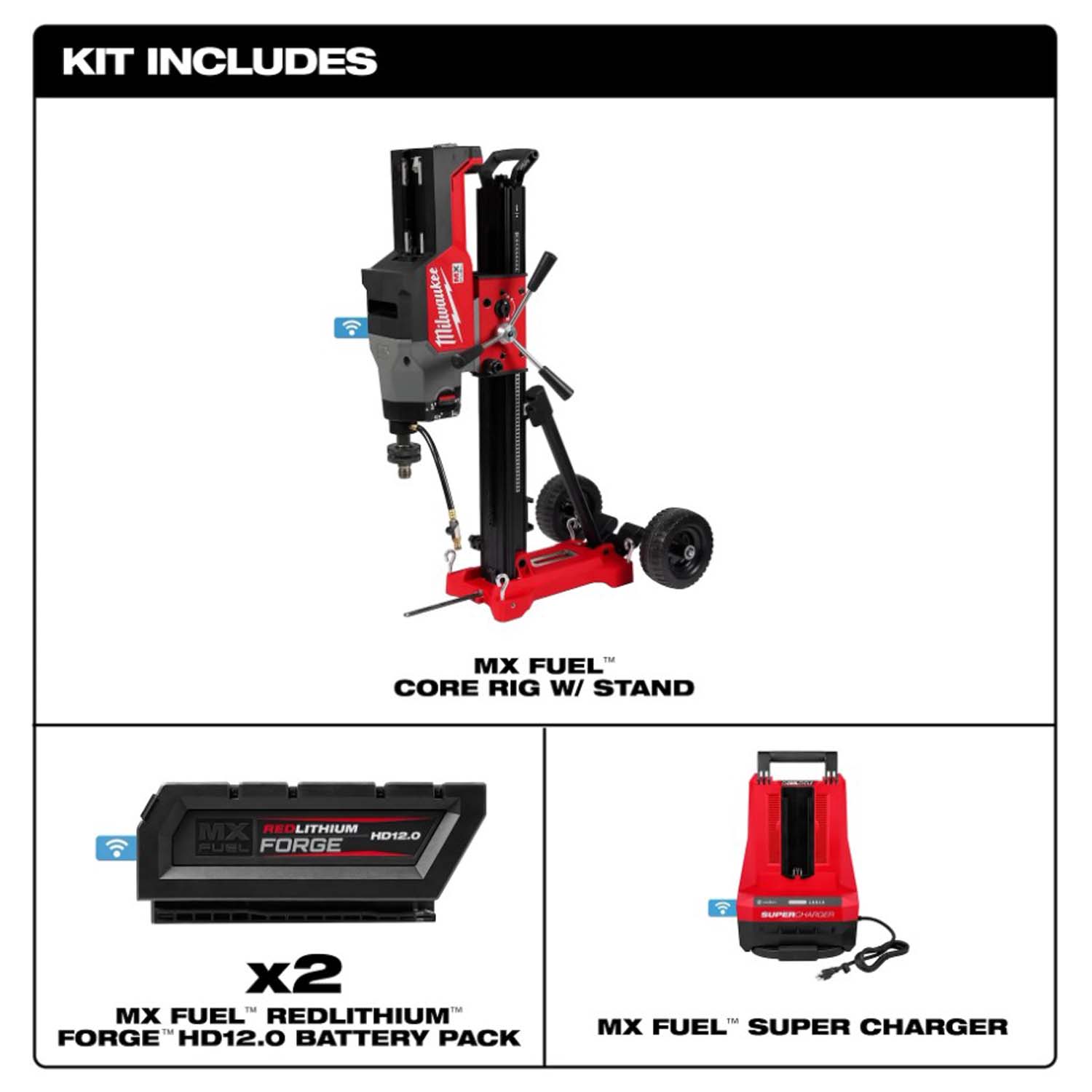

• Includes: (1) MX FUEL™ Core Rig w/ Stand, (2) MX FUEL™ REDLITHIUM™ 12.0 Batteries, (1) MX FUEL™ Supercharger, (1) Core Rig Stand
• Fully compatible with the MX FUEL™ Equipment System
• 65 minute charge time with the MX FUEL™ REDLITHIUM™ FORGE™ HD12.0 on the MX FUEL™ Super Charger
• Both the MX FUEL™ REDLITHIUM™ FORGE™ HD12.0 Battery & MX FUEL™ Super Charger are COOL-CYCLE™ Capable, delivering high-speed cooling for less downtime
• Specifications:
  • Chuck Type: Not Applicable
  • Chuck Size: 1 1/4-7
  • Power Source: Cordless
  • Motor Type: POWERSTATE Brushless
  • Material Composition: Aluminum
  • Length: 33.3 in
  • Weight: 109.5 lb
  • Height: 44.4 in
  • Width: 12.4 in
  • Badge Branding: FUEL™
  • Number of Speed Settings: 4
  • Core Bit Cap Concrete: 14"
  • Drilling Depth: 26.5"
  • First Gear Max Speed: 390 RPM
  • Push Button Activation: Yes
  • Warranty: 2-Year Equipment, 2-Year Battery
  • OneKey Compatible: Yes
  • Fuel: Yes
  • Brushless: Yes
  • Battery System: MX FUEL
  • Maximum RPM: 2200 rpm
• Includes:
  • (1) MX FUEL™ Core Rig w/ Stand Kit(MXF302-2HD)
  • (2) MX FUEL™ REDLITHIUM™ FORGE™ HD12.0 Battery Pack(MXFHD812)
  • (1) MX FUEL™ Super Charger(MXFSC)
