INSULATION RESISTANCE TESTER

Description

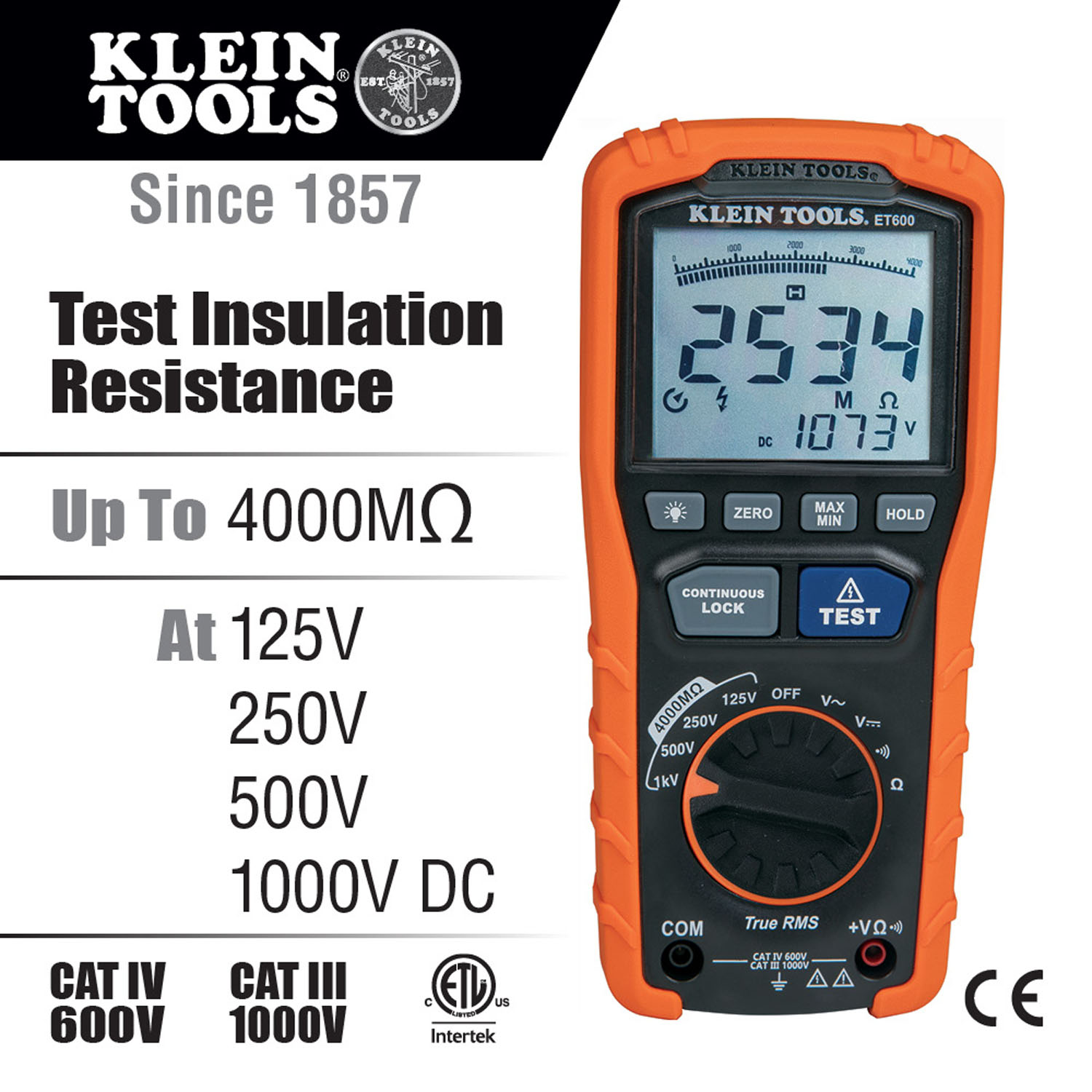

The ET600 is a multi-function Megohmmeter capable of producing 125V, 250V, 500V, and 1000V test voltages for insulation resistance measurements up to 4000M?. Also tests AC/DC voltages up to 1000V with automatic ranging True RMS technology. Convenient lock function and built-in stand for hands free operation. Dual-function backlit display monitors process.

Key Features

• Voltage Tester tests insulation resistance up to 4000M? at 125V, 250V, 500V, and 1000V DC
• Megohmmeter with test and lock buttons for simple insulation testing
• Warning alarm and high voltage icon for detection of voltage
• Measures up to 1000V AC/DC, low resistance, and continuity
• Automatic ranging True Root Mean Square (TRMS) technology for increased accuracy
• Backlit display with bar graph, Auto-power off, High Voltage, Max/Min, and Hold icons
• Low battery indicator with easily replaceable battery and fuse
• Built-in stand and optional magnetic hanger for hands free operation
• Test verification of conformity to EN61557-1,-2,-4
• CAT IV 600V and CAT III 1000V safety rating

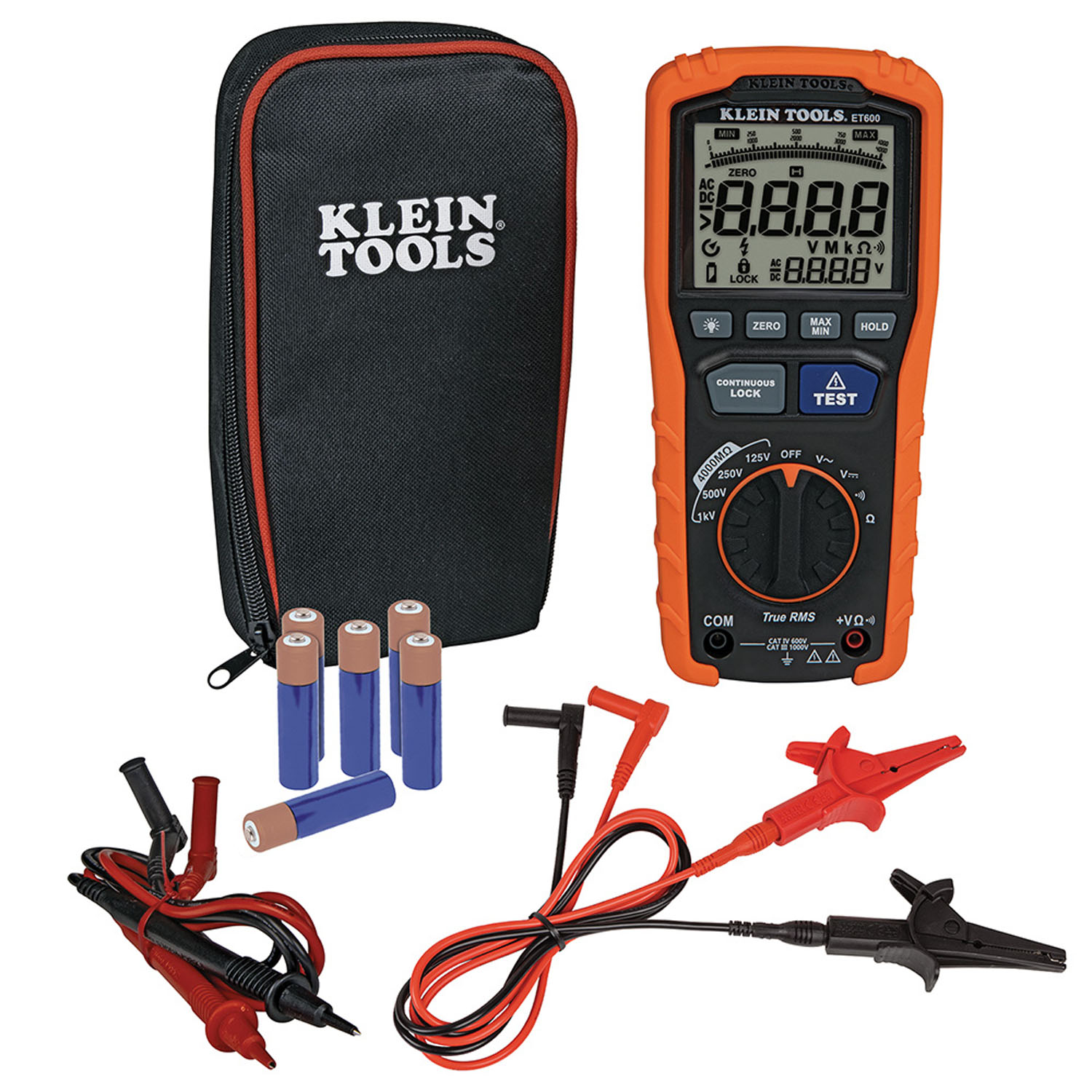

• Includes Right Angle Test Leads and Heavy-Duty Alligator Clip Test Leads
