HEAD POWDER-DRIVEN PIN (MULTIPLE SIZES AVAILABLE)
HEAD POWDER-DRIVEN PIN (MULTIPLE SIZES AVAILABLE)
HEAD POWDER-DRIVEN PIN (MULTIPLE SIZES AVAILABLE)
HEAD POWDER-DRIVEN PIN (MULTIPLE SIZES AVAILABLE)
HEAD POWDER-DRIVEN PIN (MULTIPLE SIZES AVAILABLE)
HEAD POWDER-DRIVEN PIN (MULTIPLE SIZES AVAILABLE)
HEAD POWDER-DRIVEN PIN (MULTIPLE SIZES AVAILABLE)
HEAD POWDER-DRIVEN PIN (MULTIPLE SIZES AVAILABLE)

HEAD POWDER-DRIVEN PIN (MULTIPLE SIZES AVAILABLE)

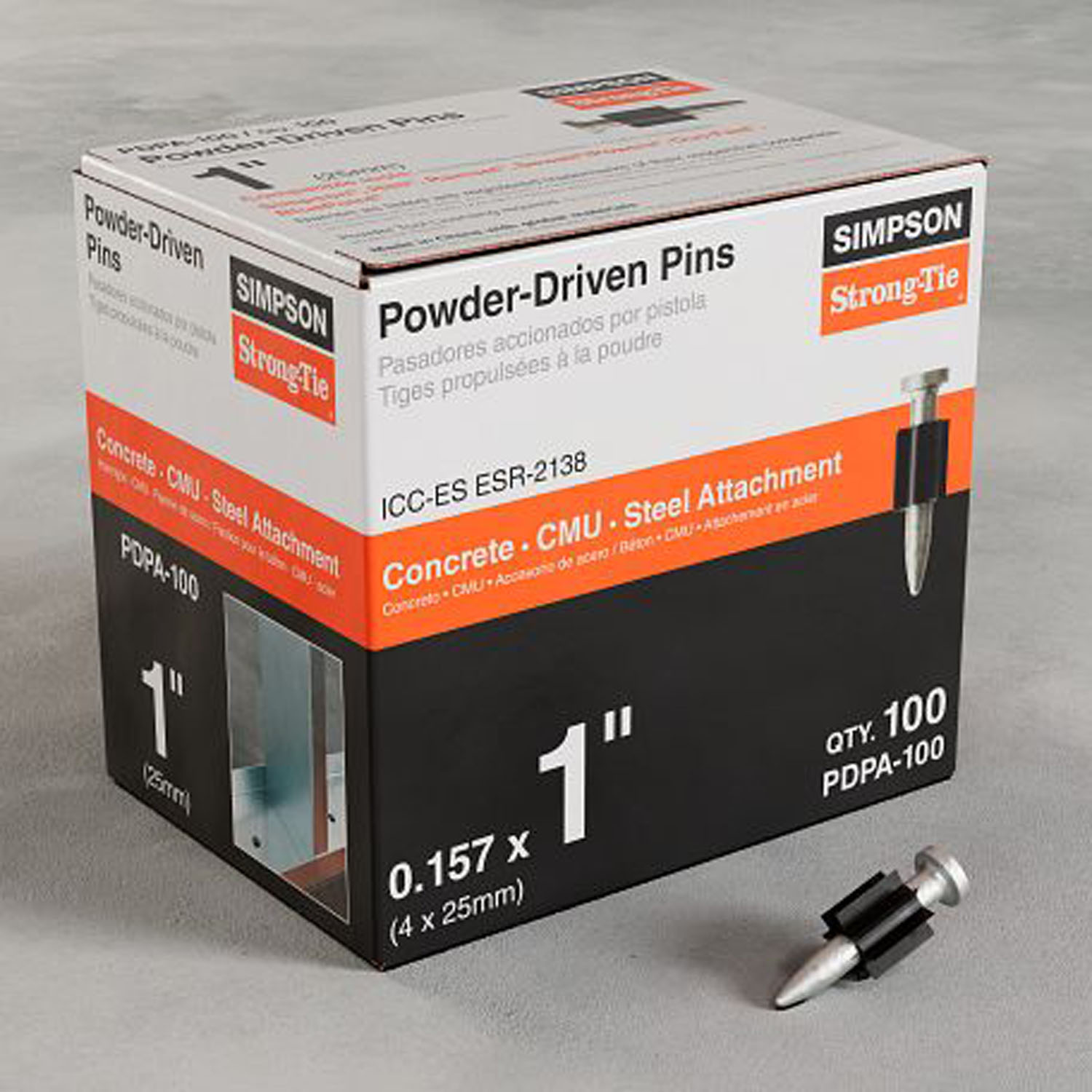

1" X 0.3"

Simpson Strong-Tie

579021

PDPA-100

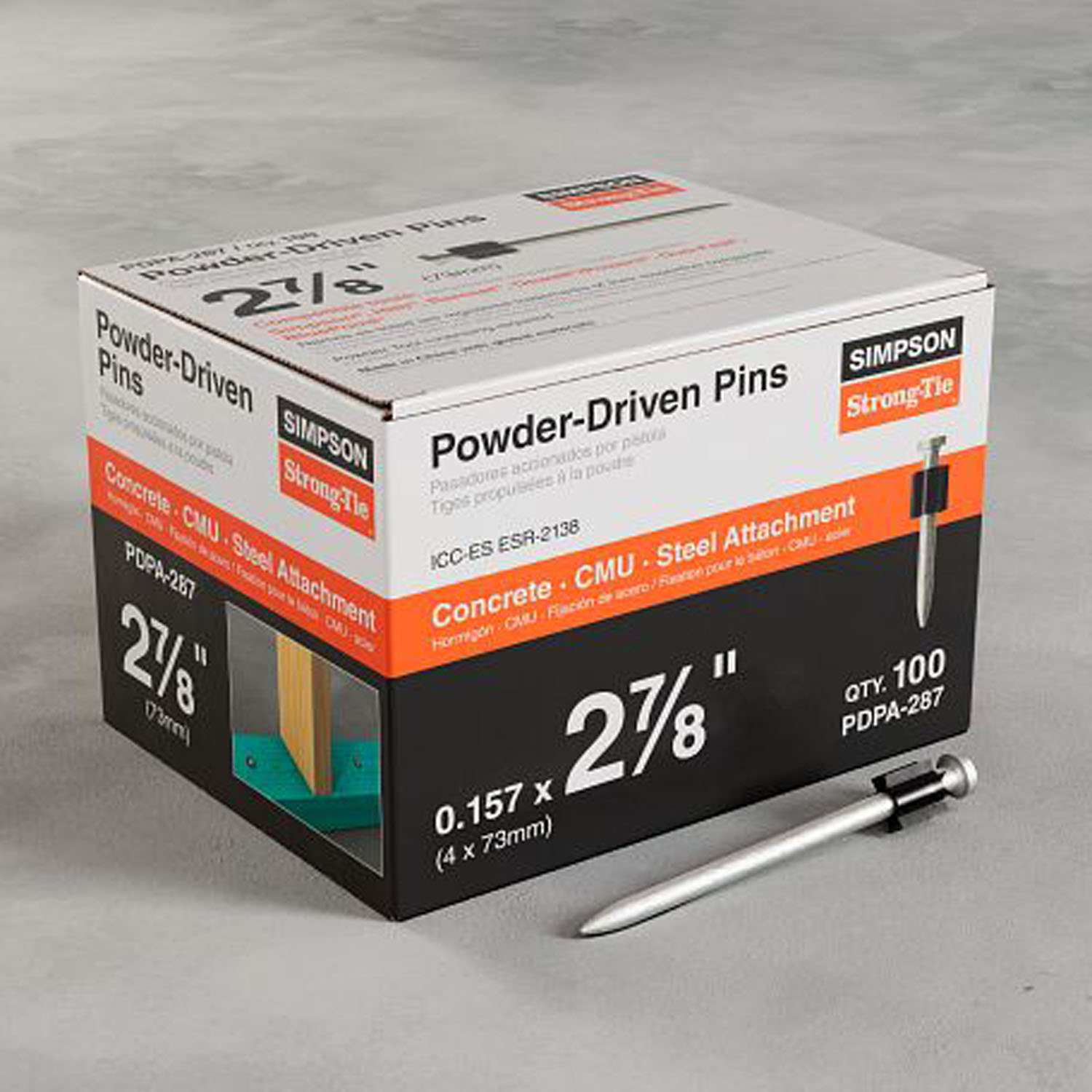

3" X 0.3"

Simpson Strong-Tie

579023

PDPA-287

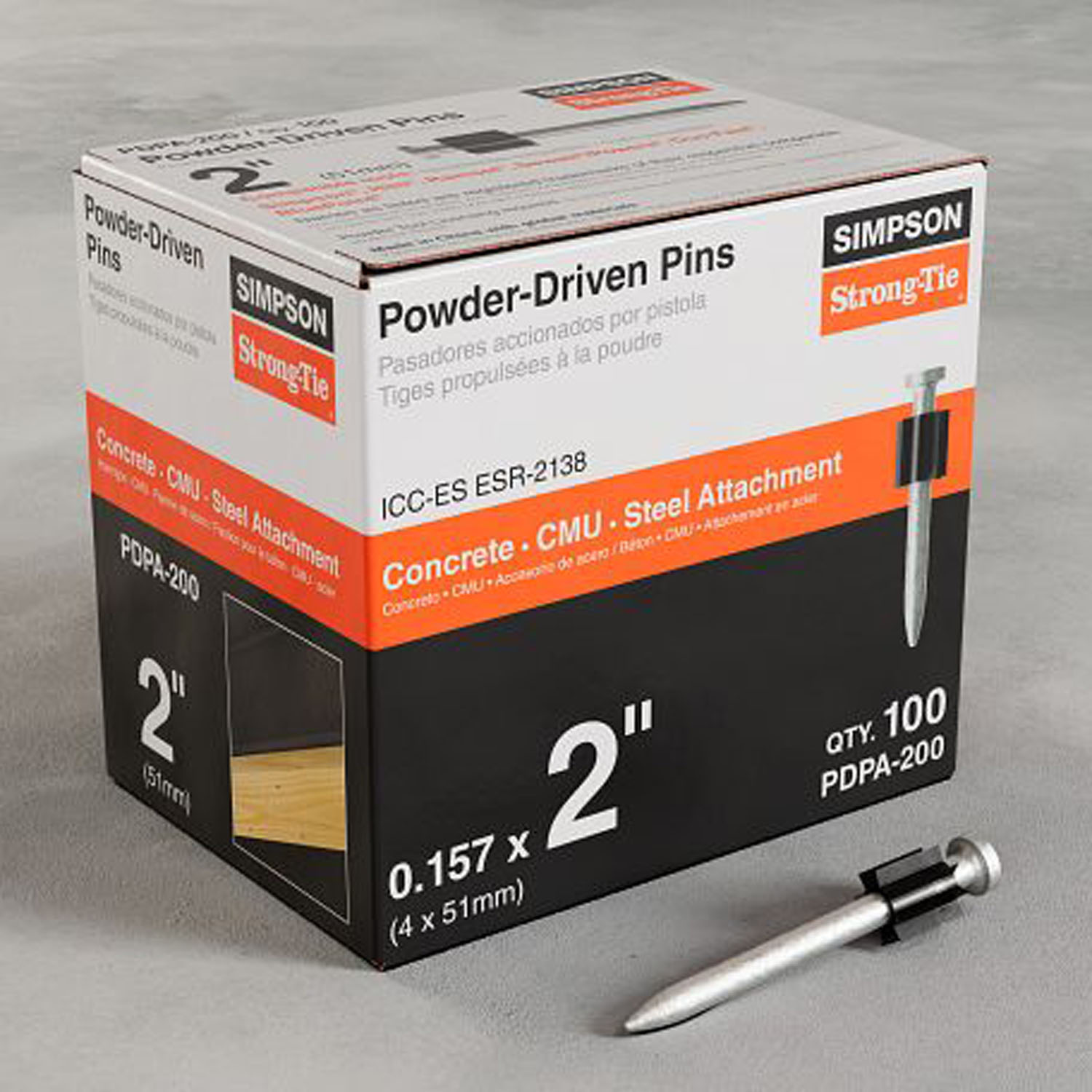

2" X 0.3"

Simpson Strong-Tie

579036

PDPA-200

1-1/2" X 0.3"

Simpson Strong-Tie

579037

PDPA-250

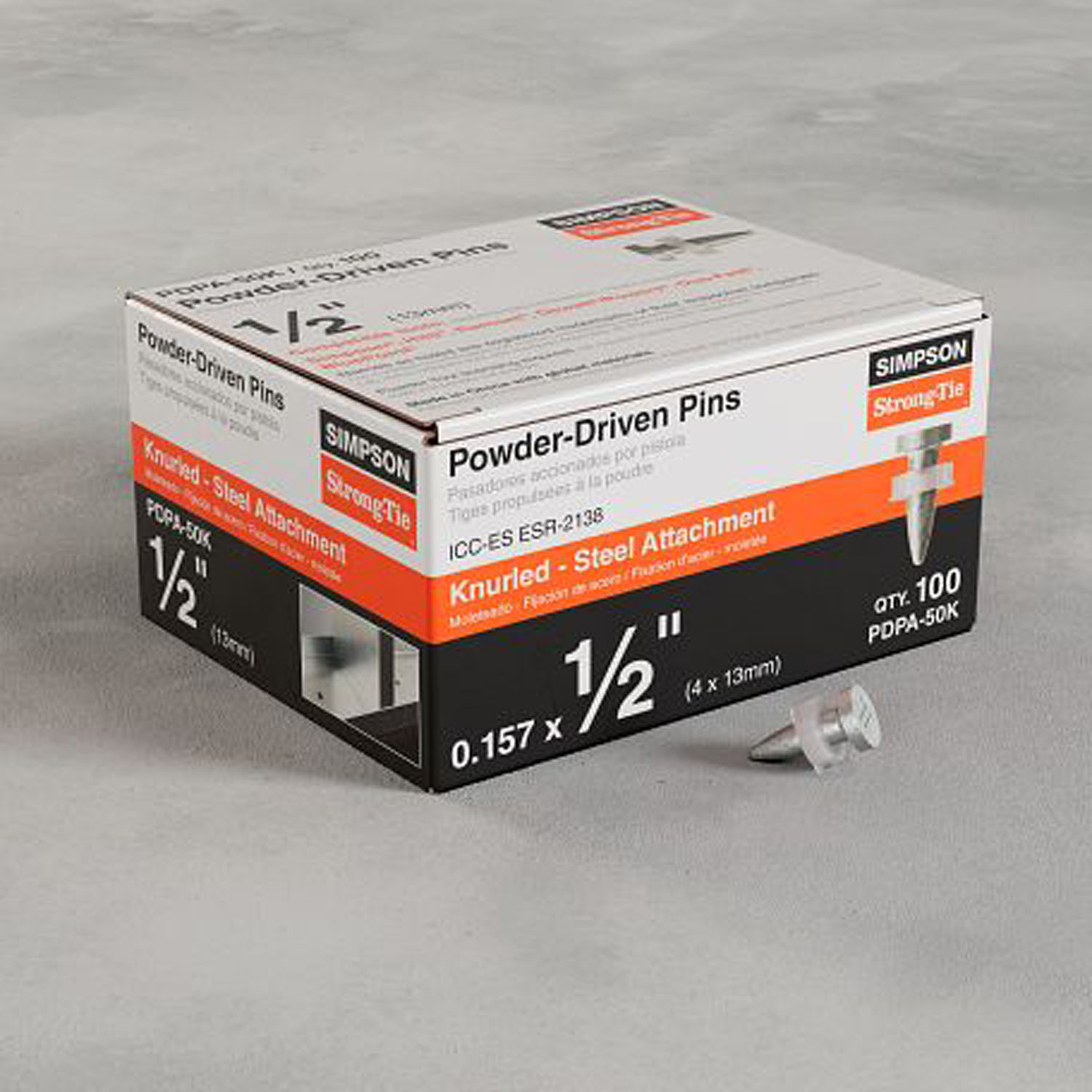

1/2" X 0.3"

Simpson Strong-Tie

579113

PDPA-50K

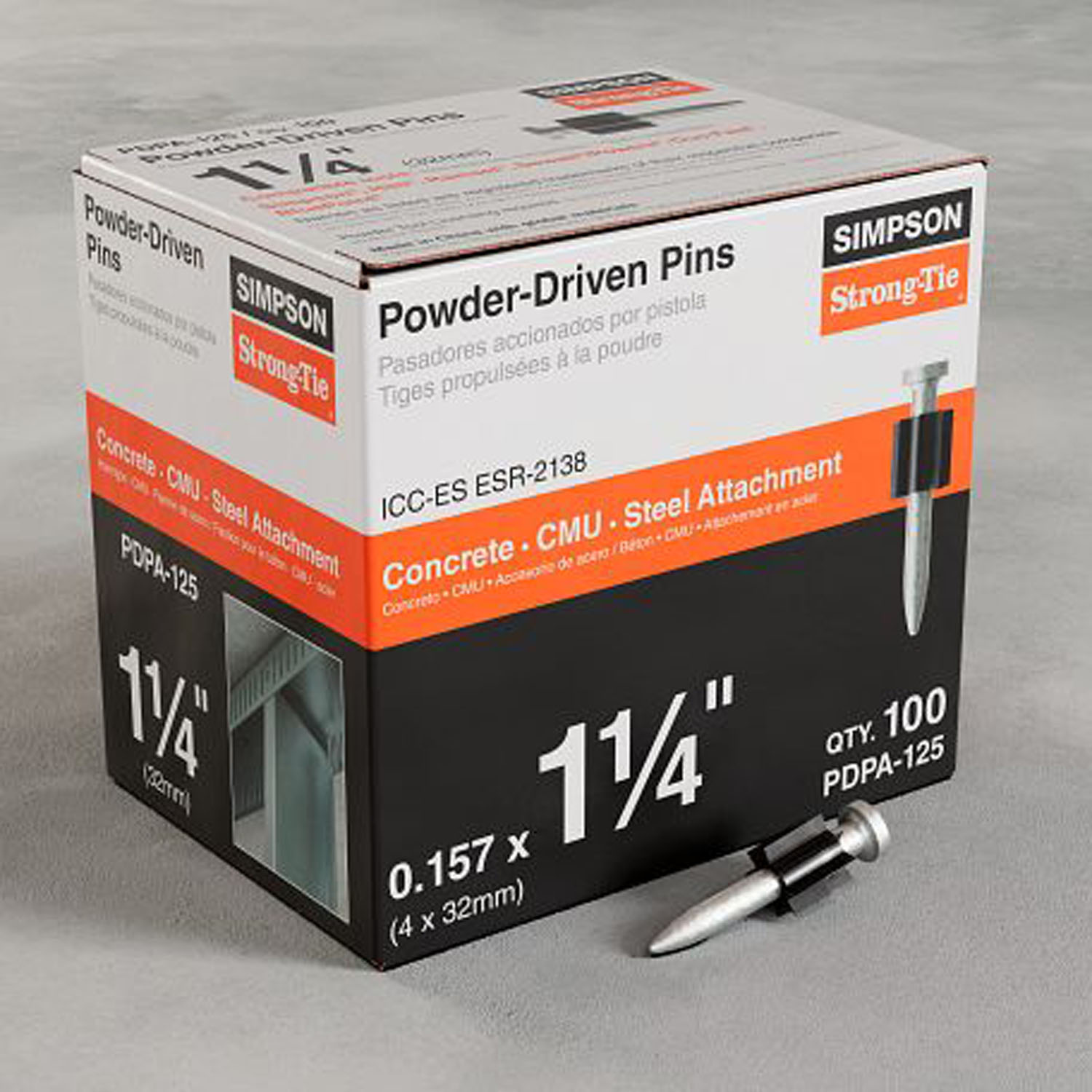

1-1/4" X 0.3"

Simpson Strong-Tie

624121

PDPA-125

Description

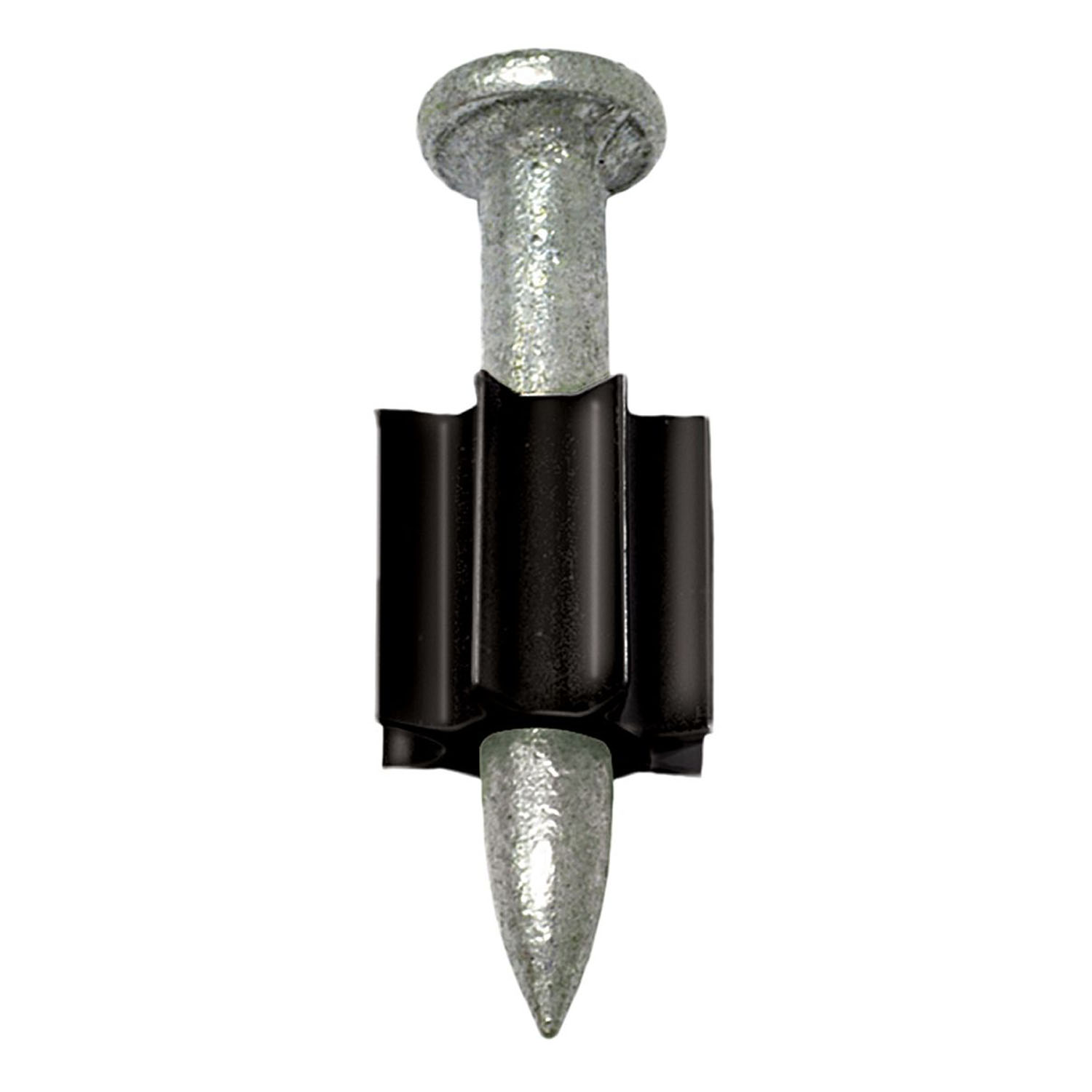

The PDPA is a hardened-steel, powder-actuated fastener designed to fasten building components to concrete, steel and CMU. The PDPA consists of a fastener with a 0.300"-diameter head and a 0.157"-diameter shank. The PDPA provides maximum jobsite productivity with fast installation.

Key Features

  • The minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth
  • Code listed per ICC-ES ESR-2138, Florida FL15730 and LA RR25469
  • Designed for use with Simpson Strong-Tie® powder-actuated tool systems as well as other common tools
  • The PDPA-MG models are mechanically galvanized for additional corrosion protection
PDPA Design Information.pdf
PDPA Design Information.pdf
PDPA.pdf
PDPA.pdf
