GREEN BEAM THREE POINT SELF-LEVELING ALIGNMENT LASER

Description

The Bosch GPL100-30G features a three-point, self-leveling laser with ±1/8 In. accuracy at 30 Ft. for up/down plumb, align and level applications. This unit features green-beam technology, which is up to 4X brighter than standard red beams. It also has the Bosch-exclusive VisiMax™ technology, which delivers maximum beam brightness in most jobsite conditions. The unit includes point projection to the front, so it can be used in a variety of positions for flexibility on the job. It is faster than a standard manual plumb bob. The unit includes several durability features, such as the Smart Pendulum System to lock the laser when switched off, 360 degree rotation, a hard carrying case and full rubber overmold housing. The integrated multipurpose laser mount features strong magnets and allows the user to mount the laser virtually anywhere.

Key Features

• Green-Beam Three-Point Self-Leveling Alignment Laser

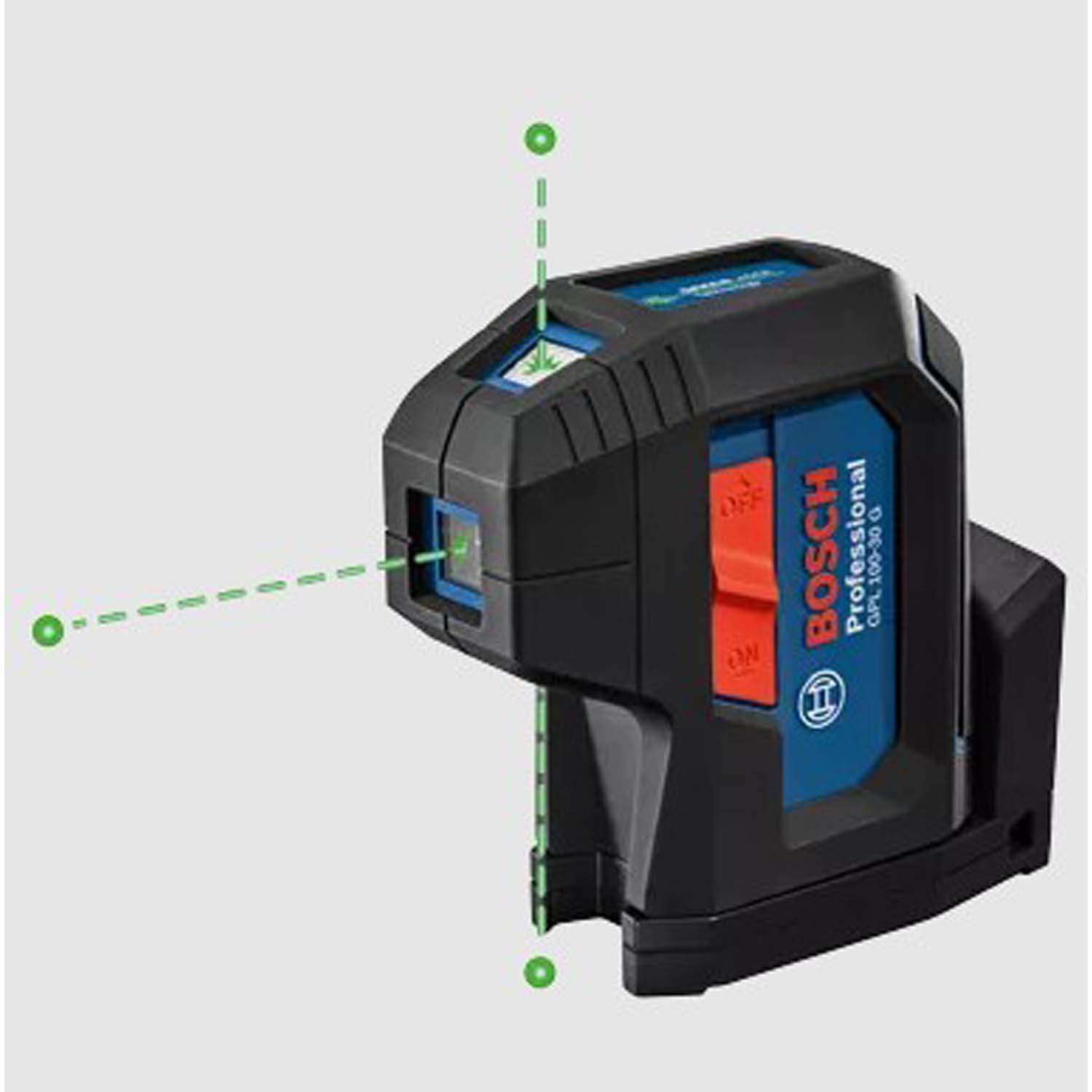

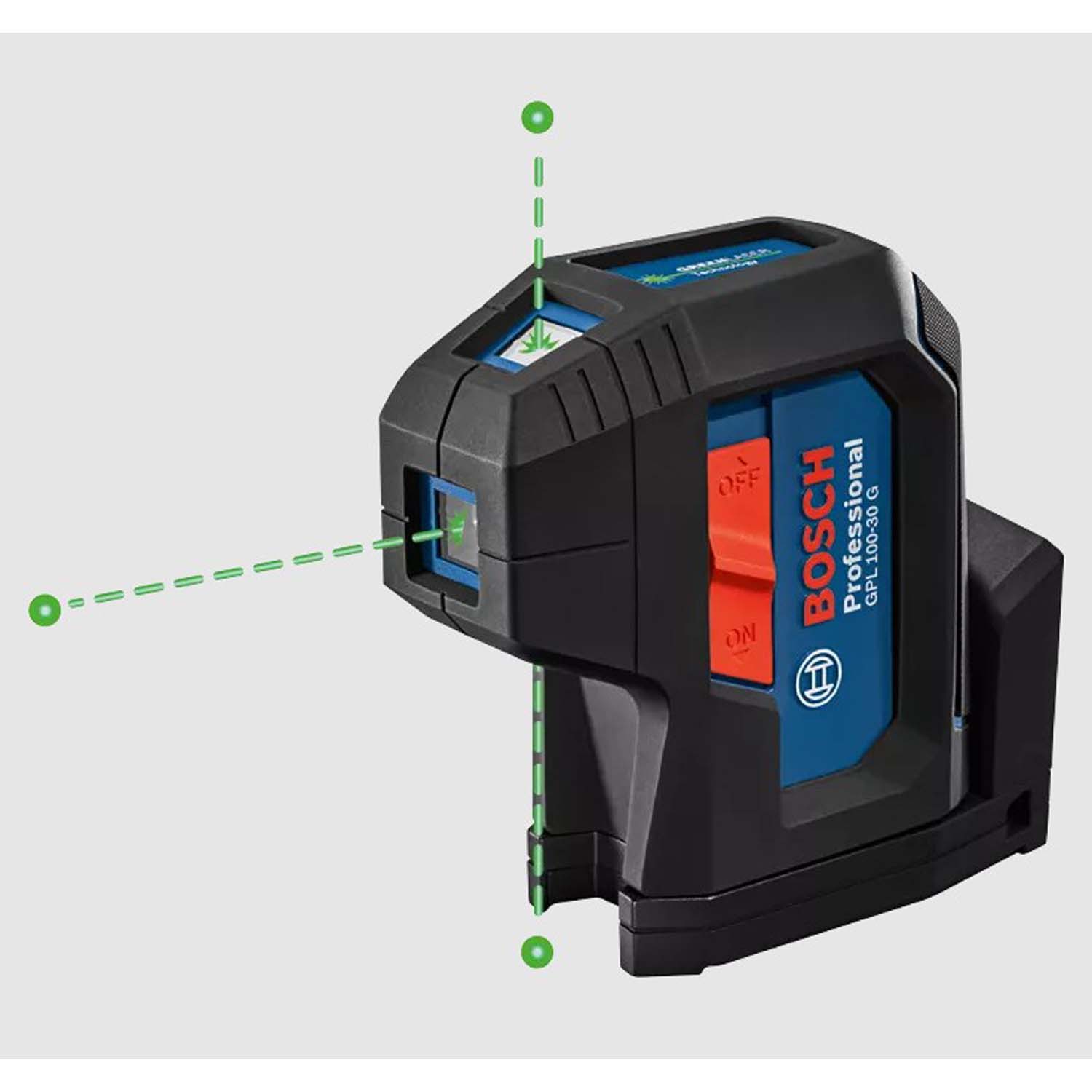

• Three-point plumb and level point projection – accurately transfers and aligns level, plumb, 90° and grade points
• Built-in VisiMax™ technology – monitors power consumption to maximize line visibility and extend battery life
• Bright green-beam laser – up to 4X brighter than standard red beams

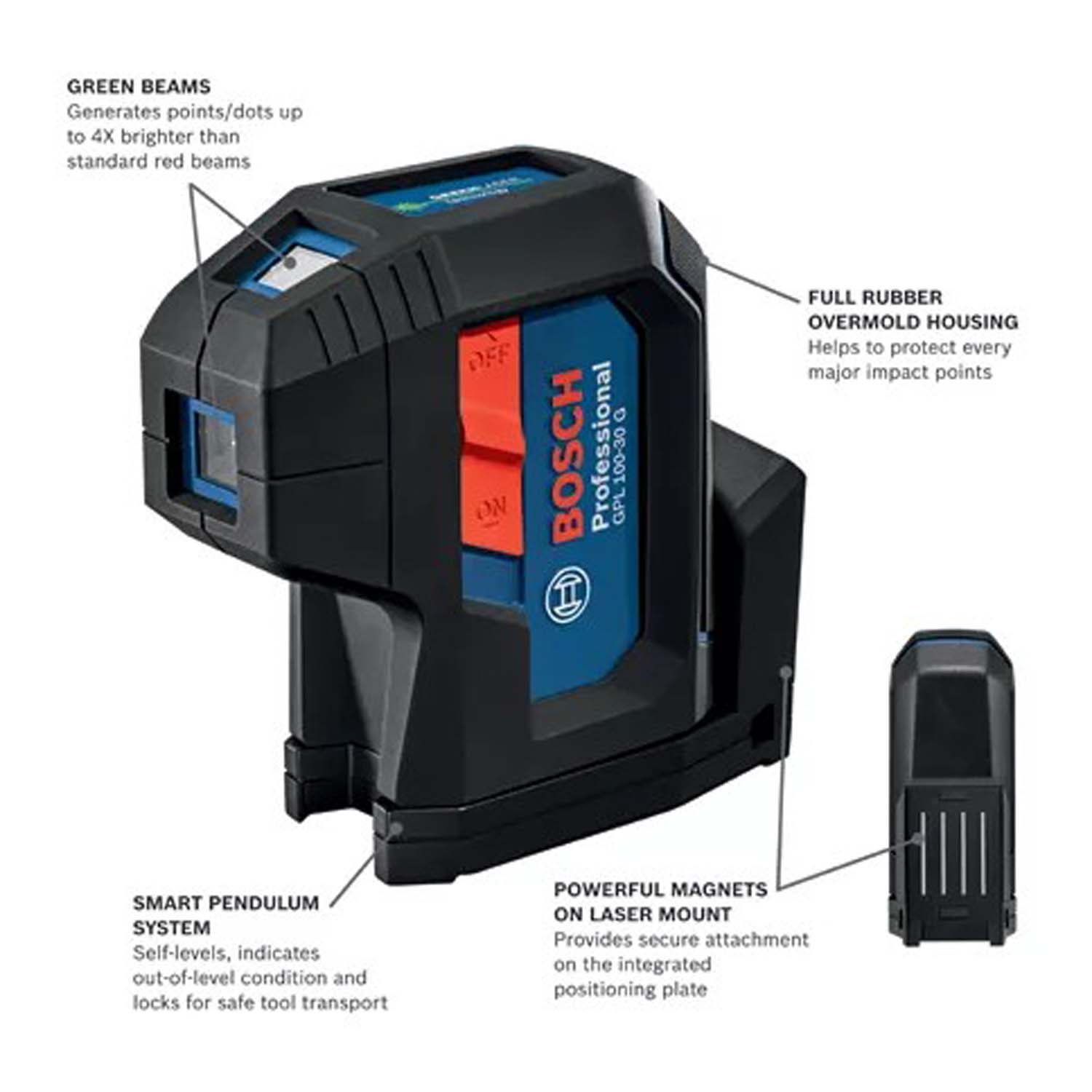

• Full rubber overmold housing – helps to protect every major impact point, with a design similar to a roll cage
• Smart Pendulum System – allows tool to self-level, and it indicates out-of-level condition
• Secure laser transport – after switching off, pendulum is locked, plus 360 degree rotation for extra protection
• Integrated multipurpose laser mount – positions and mounts with magnets or threaded mounts (1/4 In.-20)
• Bosch measuring and layout tools are covered by a one year limited warranty with an additional year when you register your tool within eight weeks of purchase - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
• Functions & key features:
  • Laser Configuration: 1 Horizontal Point and 2 Vertical Points to align, plumb, and transfer points.
  • Working range of up to 125 Ft (38 m).

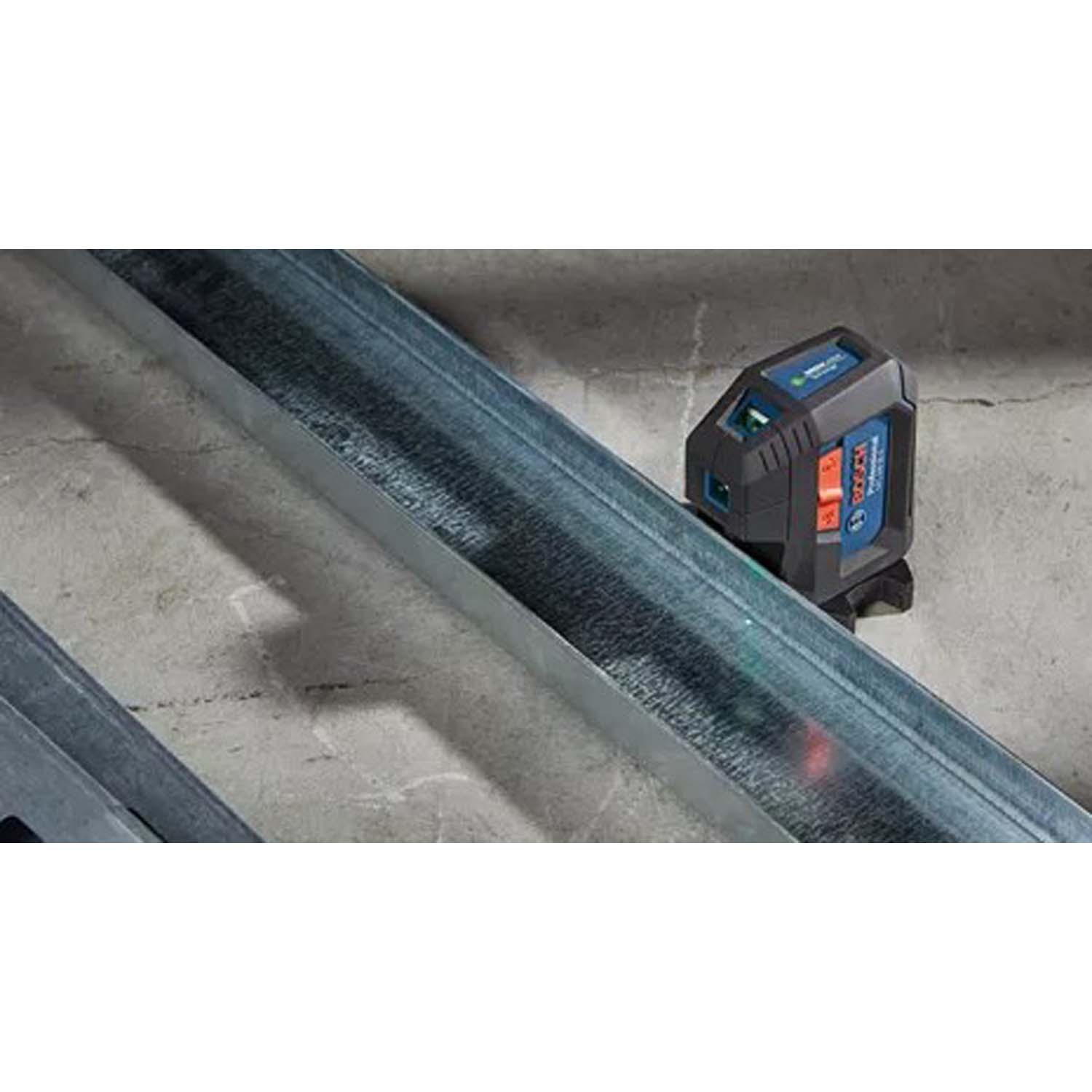

  • Secure and quick positioning to magnetic surfaces.
  • IP 65 - Dust tight and protected against water jets from any direction.
  • Versatile mounting solution with seamless rotation and stability for easy positioning and adjustment of lasers.
• Specifications:
  • Case Type: Hard plastic
  • Height in: 4.5 "
  • IP Rating: IP 65
  • Laser Beam Color: Green
  • Laser Diode: Class 2, 500-540 nm
  • Length in: 4.5 "
  • Leveling Type: Self-Leveling, Up to 4°
  • Material: Plastic
  • Mount Threading: 1/4-20
  • Number of Beams: 3
  • Range: Up to 125-ft.
  • Weight: 0.77 lb
  • Width in: 2 "
  • Works With: Tripod, BT 150, Telescoping Pole System, BP350, Mounts and Positioning Devices, BM 1, BM3, LB10, MM 2
  • Includes:
    • (1) GPL100-30G Green-Beam Three-Point Self-Leveling Alignment Laser
    • (1) Built-In Multipurpose Mount
    • (2) AA Batteries
    • (1) Hard Carrying Case
