600713 Beam Walker Easy Slider from Safewaze - Darragh

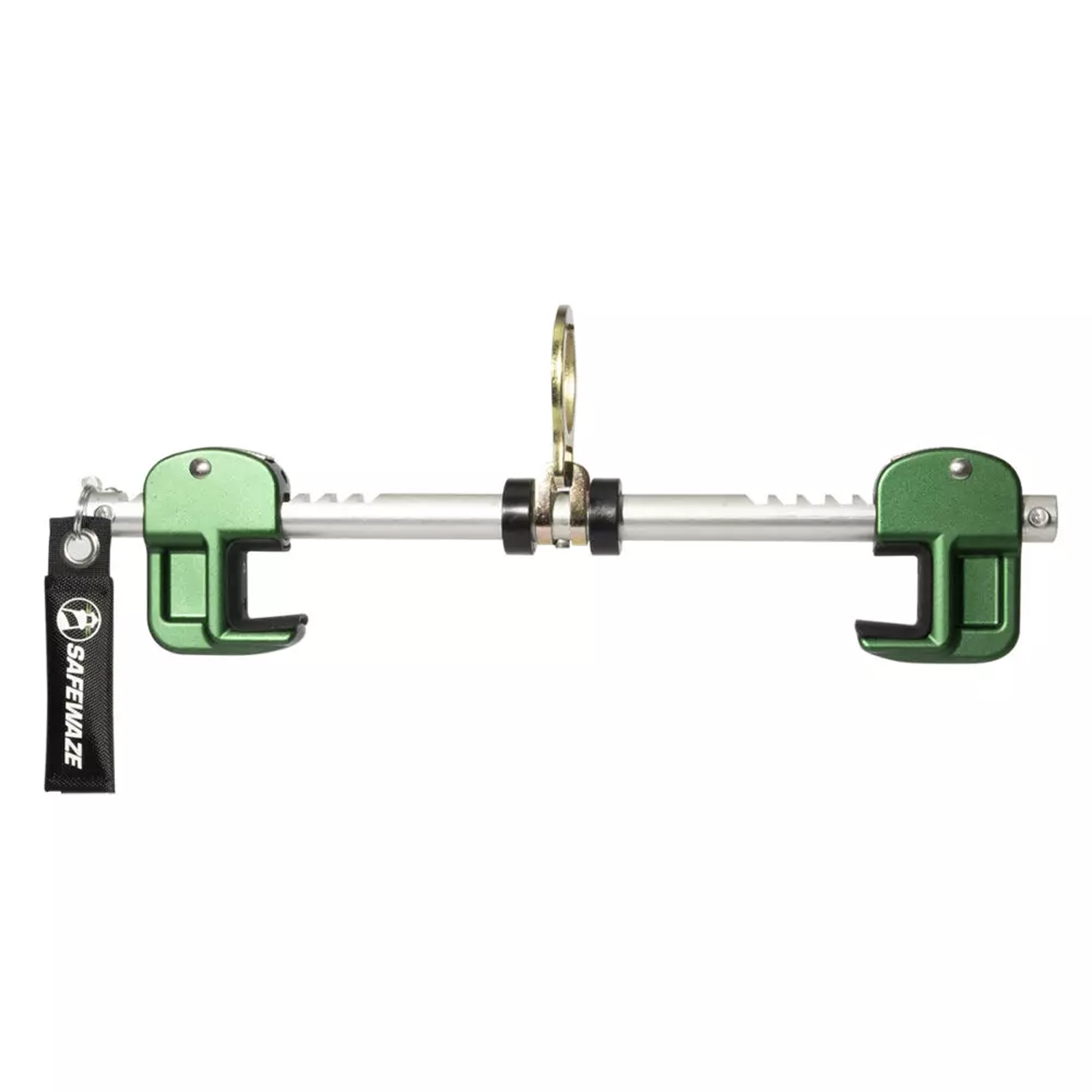

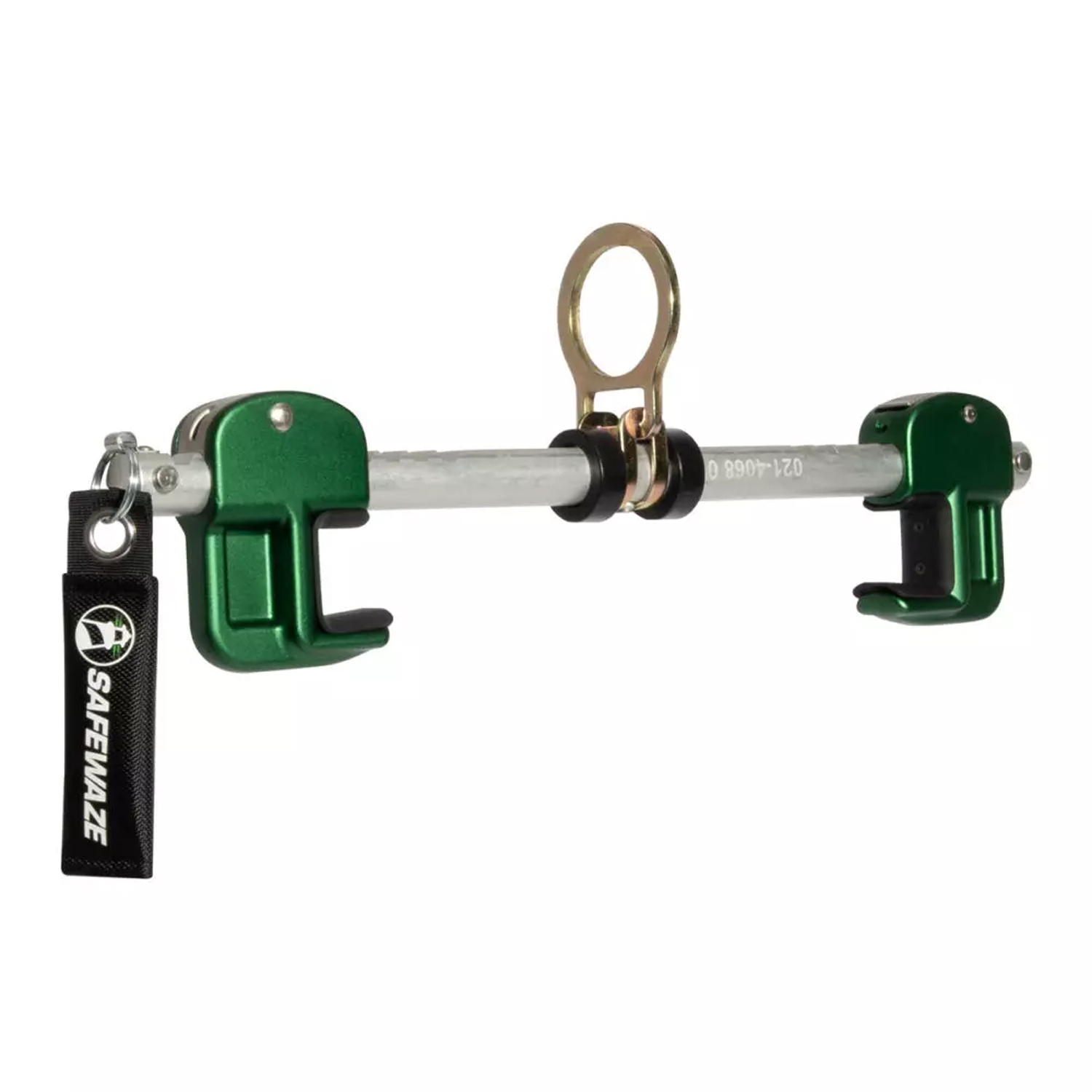

Beam Walker Easy Slider

Safewaze

600713

021-4069

Steel

The Beam Walker Easy Slider offers a pivot D-ring, replaceable jaw liners and smooth trailing plus hands-free mobility. This lightweight compact design can be used on overhead or foot level tie-off with one-handed trigger action and dual adjustment.



Features:

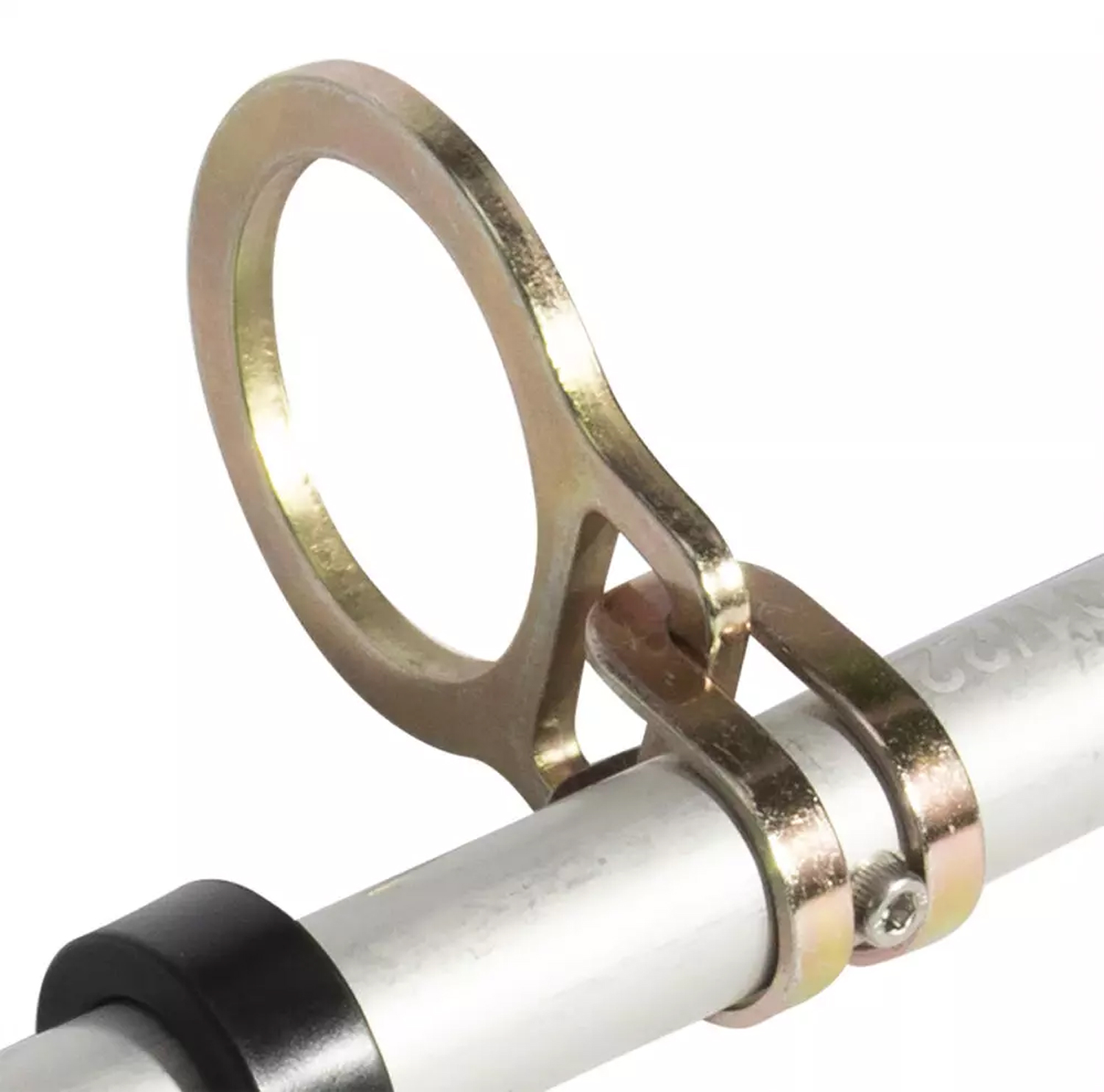

  • 180° rotating connection point

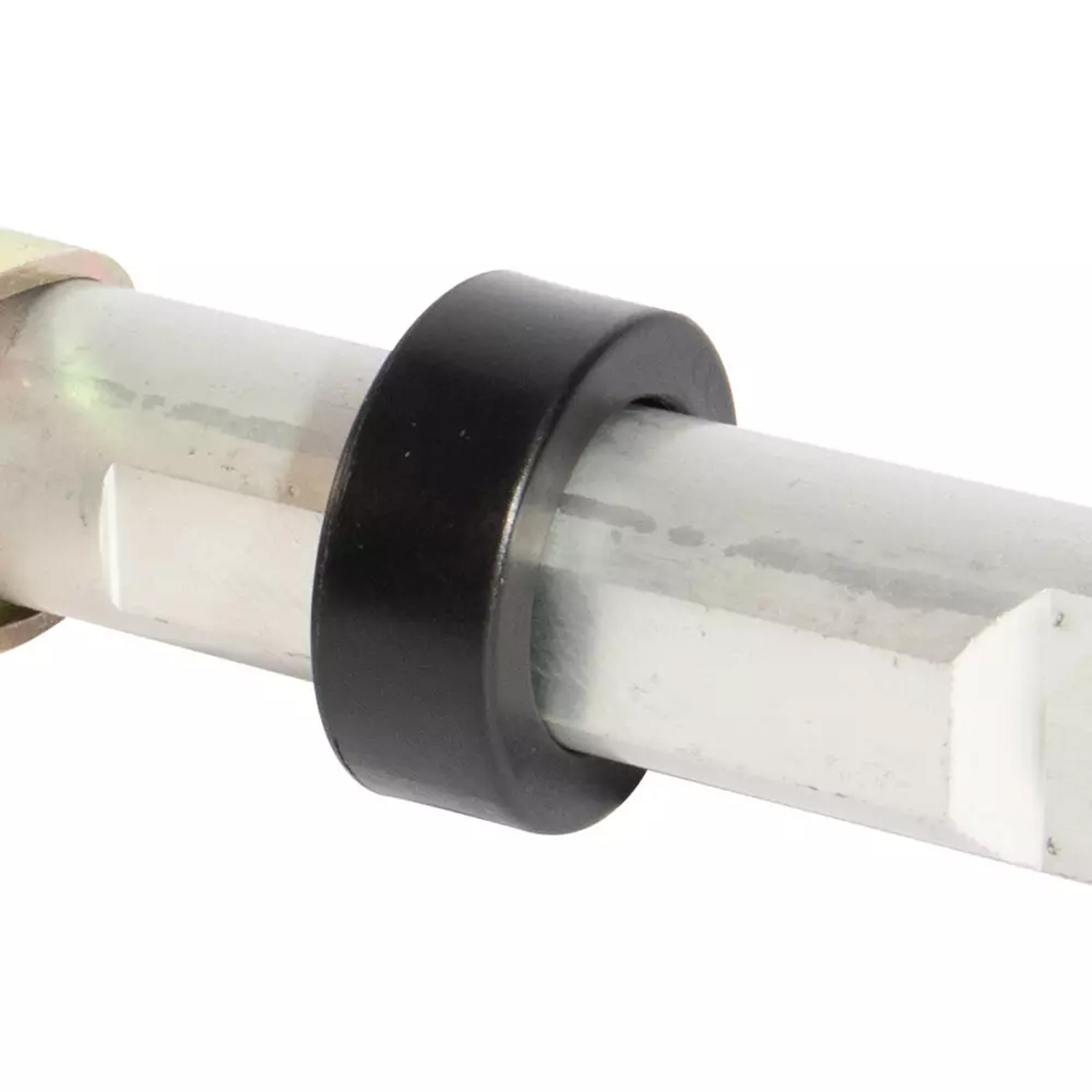

  • Nylon rollers for more effective slide

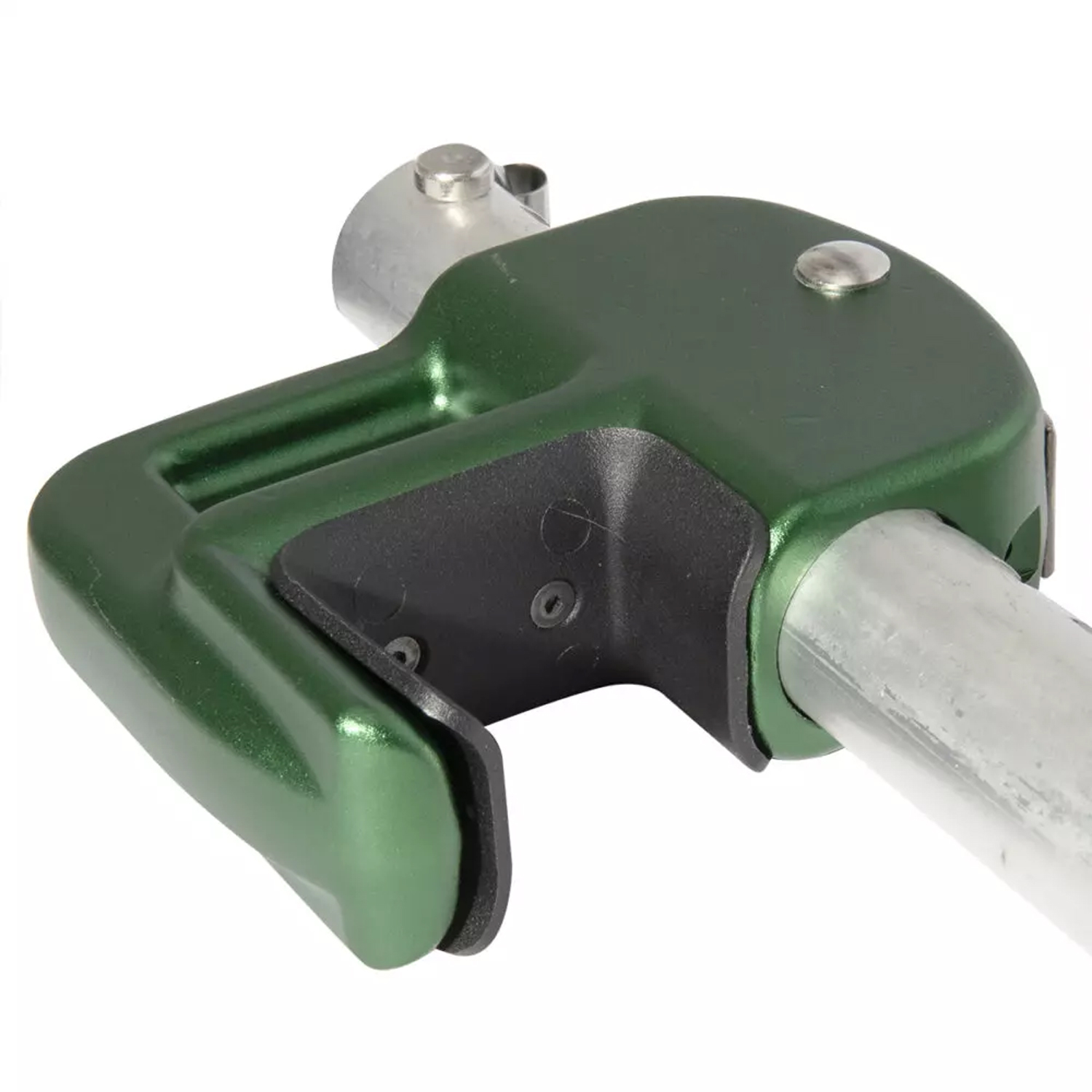

  • Replaceable jaw liners extend product life

  • Easy trailing for hands-free work

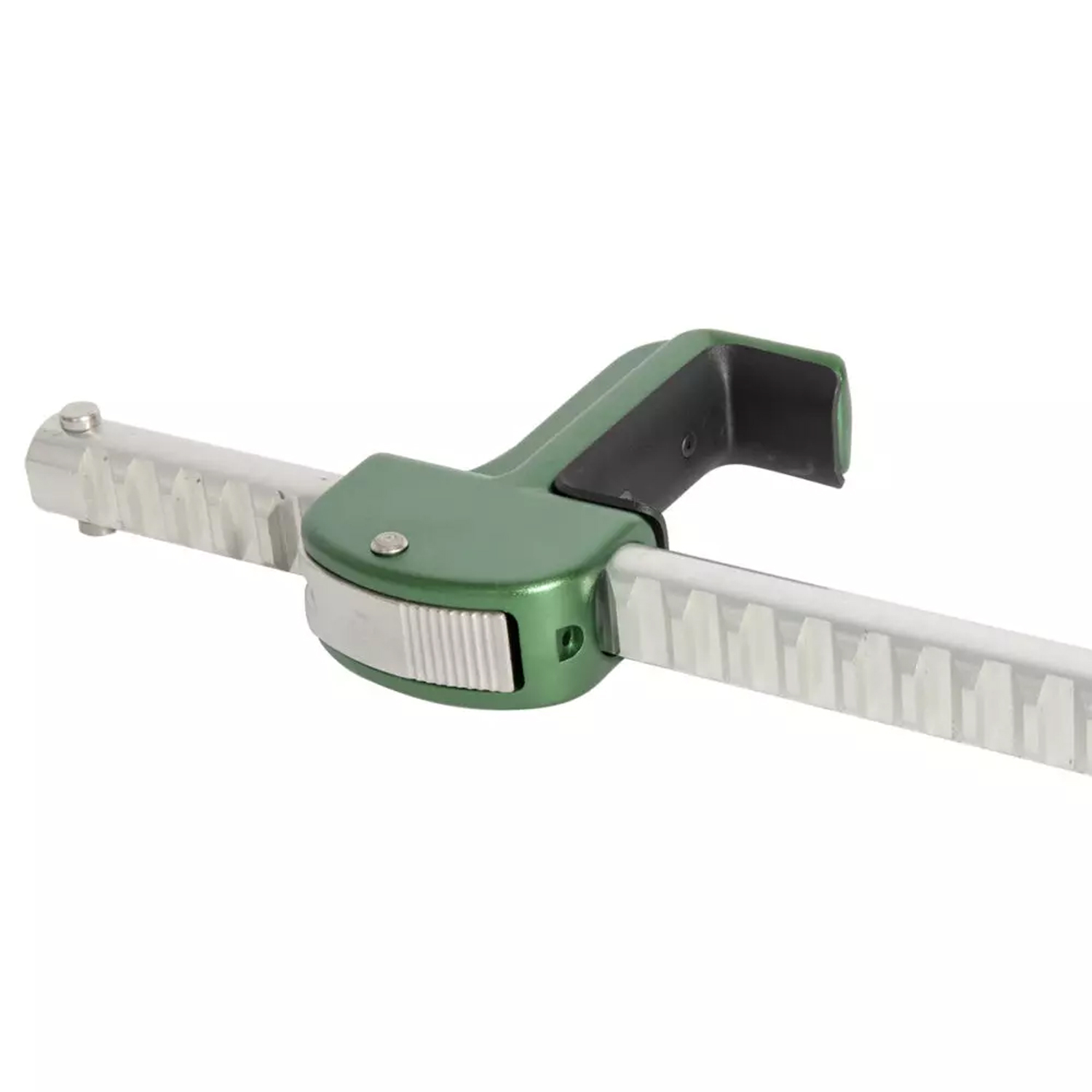

  • Dual adjustment with jaws on both ends

  • Easy, one-handed trigger allows for quick lock & release

  • Lightweight aluminum construction

  • Overhead and foot level tie-off

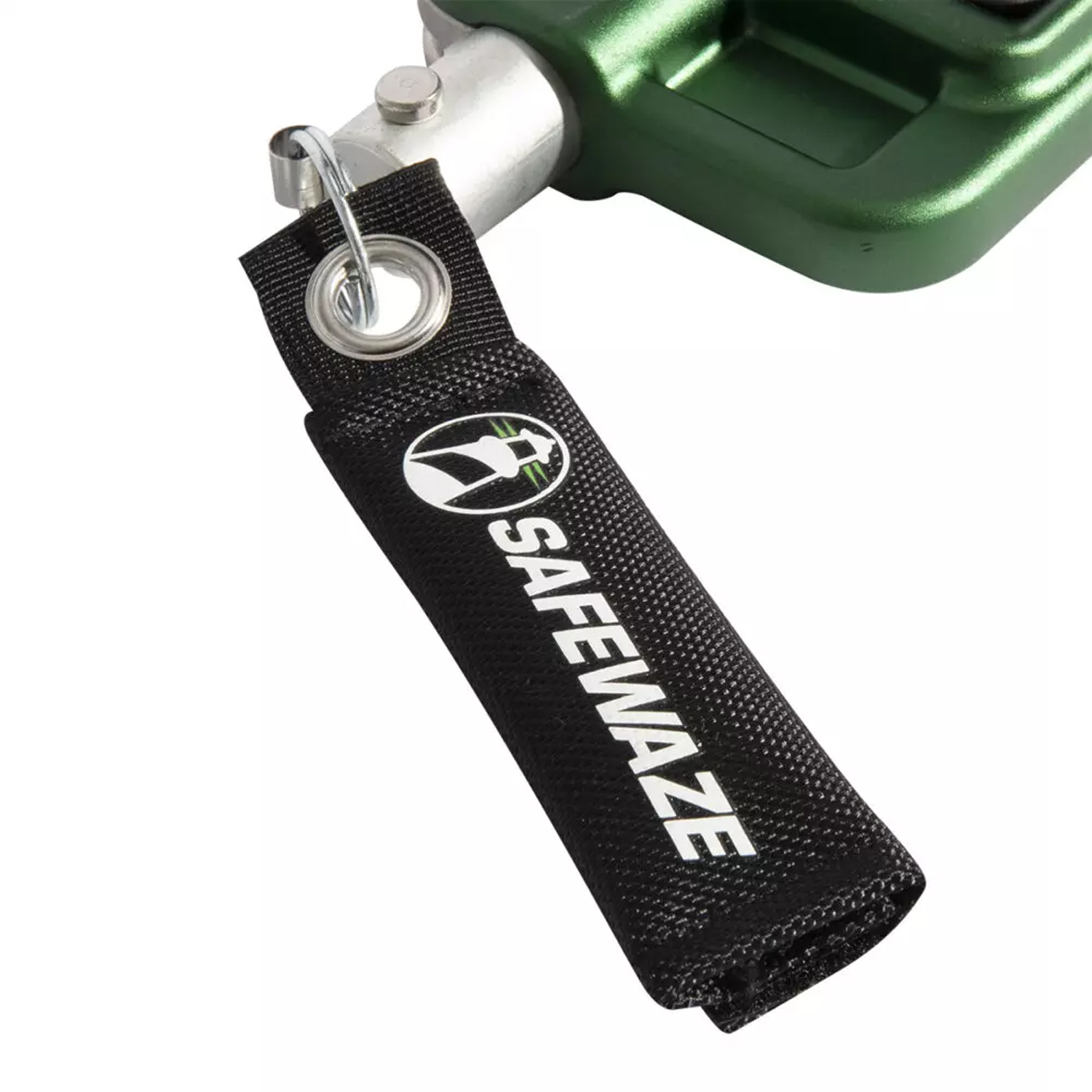

  • Protective label cover to ensure compliance

  • Fits flange up to 1.25"



Specifications

Materials: Aluminum support bar and clamps, nylon rollers and jaws, steel D-ring, polyester label cover
Weight: 3.5 lbs. (1.6 kg)
Overall Length: 19.5"
Beam Flange Width Range: 3.5"-14"
Beam Flange Thickness: Up to 1.25"
Minimum Breaking Strength: 5,000 lbs.
ANSI Weight Capacity: 130-310 lbs. (59-141 kg)
OSHA Weight Capacity: Up to 420 lbs. (191 kg)
ANSI Standards: Z359.18-2017 (Type A)
OSHA Standards: 1926.502, 1910.140, 1910.66
