Steel

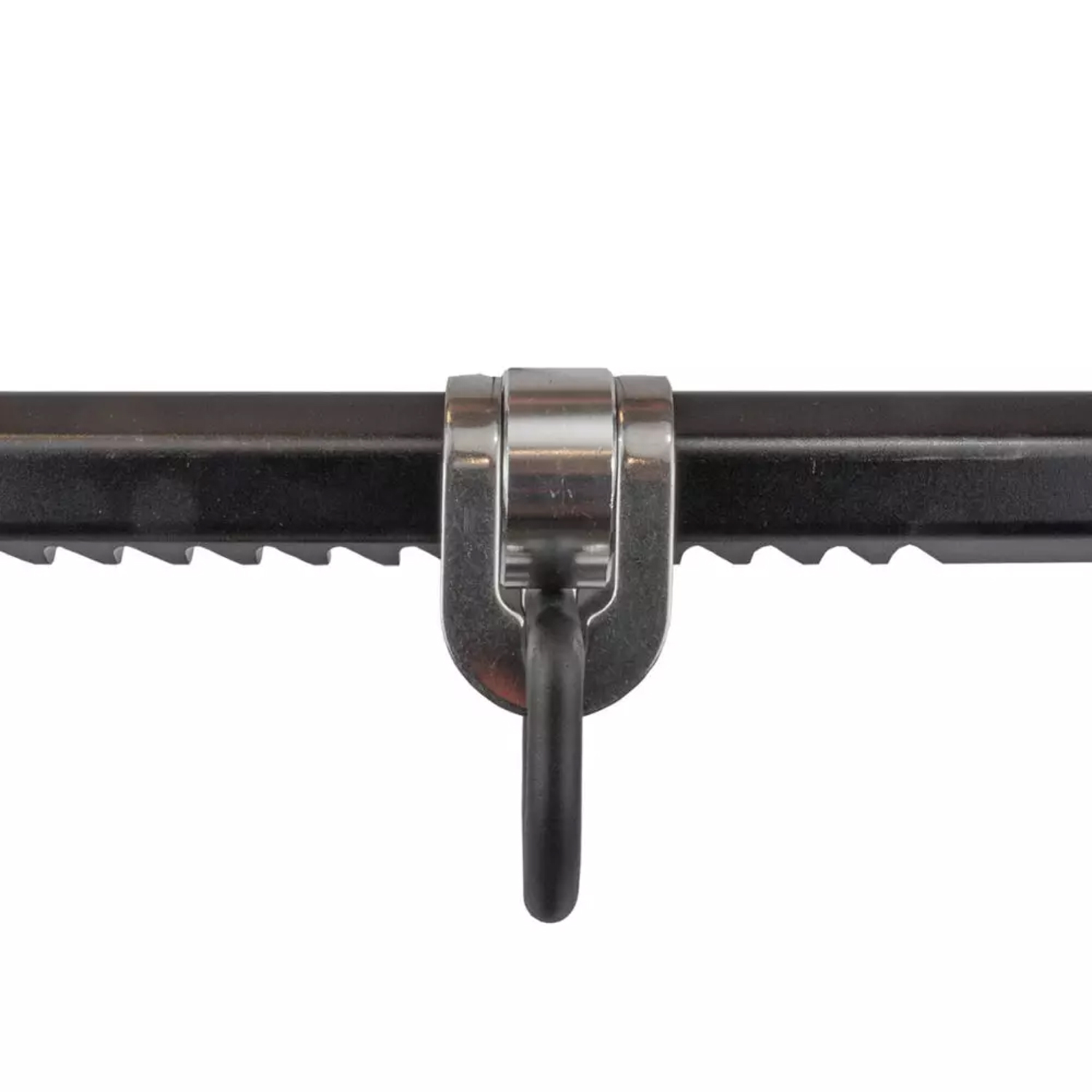

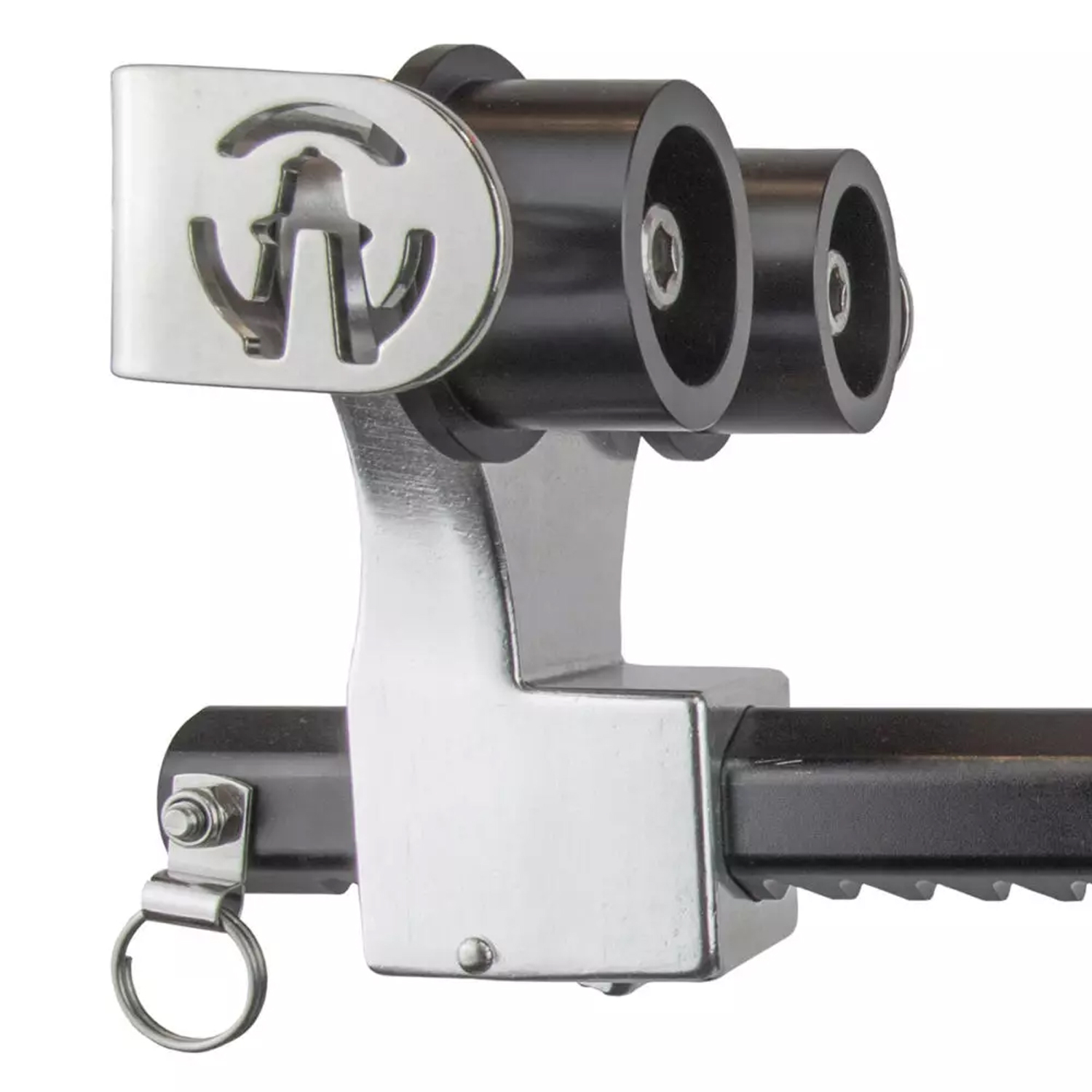

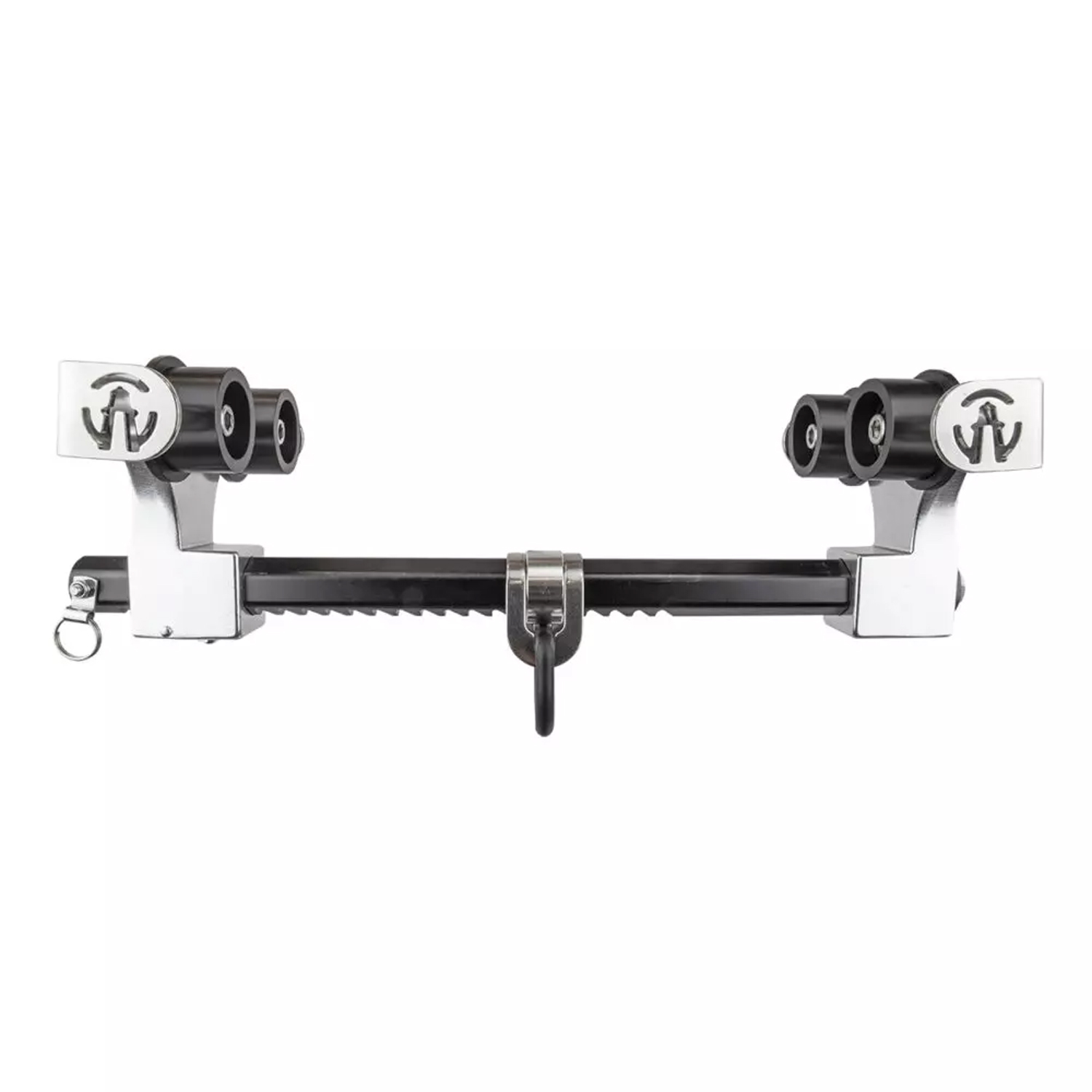

The Beam Trolley Anchor is easily positioned anywhere along an overhead horizontal I-beam. The durable nylon wheels glide smoothly over the beam surface while the steel D-ring provides an accessible tie-off point. The anchor is ideal for use in steel and specialty/food processing applications.
Features:
- Lightweight aluminum body
- Stainless steel rail guides
- Coated steel D-ring attachment point
- Abrasion, heat & chemical resistant nylon wheels
Specifications
Materials: |
Aluminum; stainless steel; Ertalon® nylon wheels; Coated steel D-ring |
Weight: |
7.1 lbs. (3.2 kg) |
Beam Flange Width Range: |
3.5"-14" |
Beam Flange Thickness: |
Up to 1.75" |
Minimum Breaking Strength: |
5,000 lbs. |
ANSI Weight Capacity: |
130-310 lbs. (59-141 kg) |
OSHA Weight Capacity: |
Up to 420 lbs. (191 kg) |
OSHA Standards: |
1926.502, 1910.140, 1910.66 |
Other Standards: |
CE 0321, EN 795:1996 (+A1:2000) Class B |
