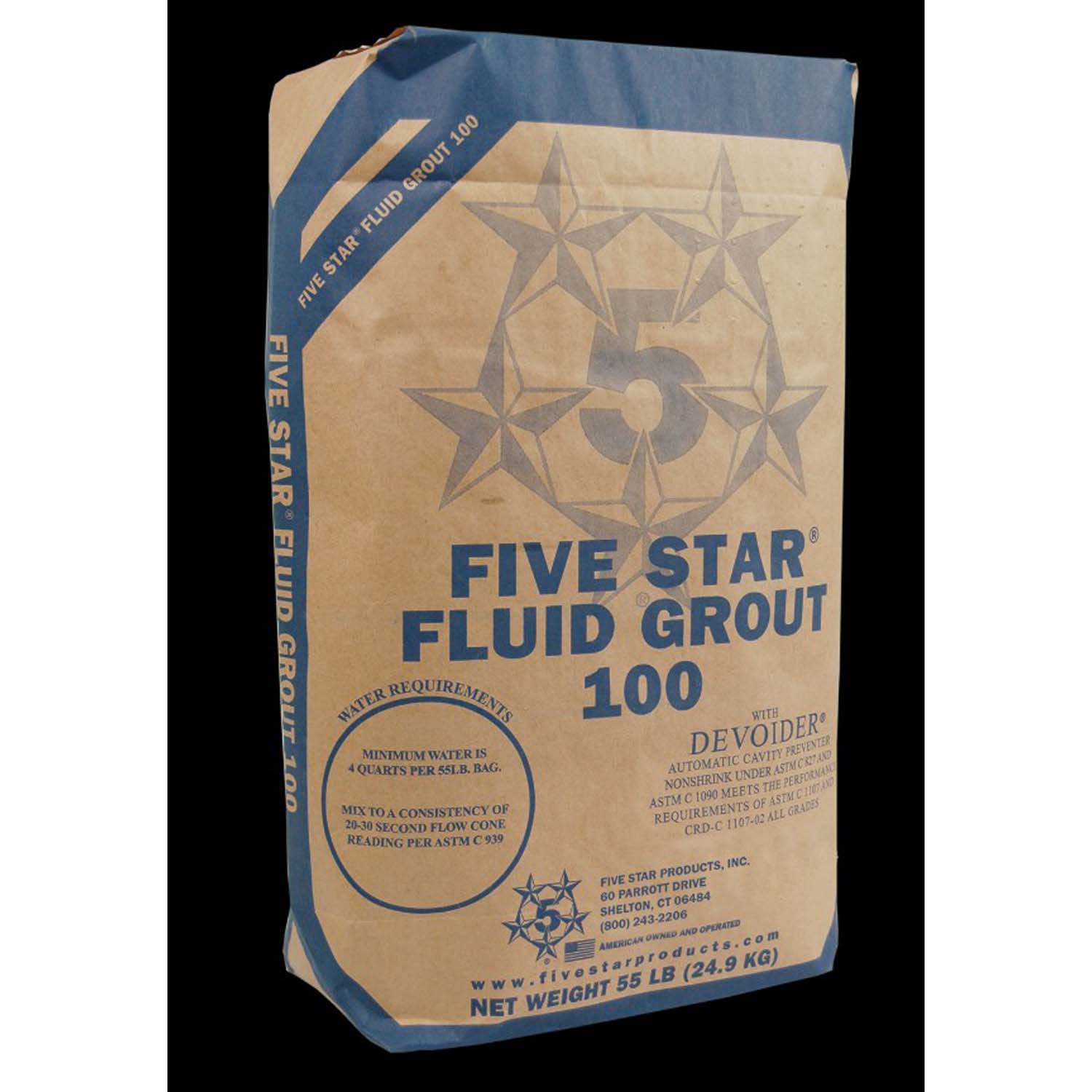

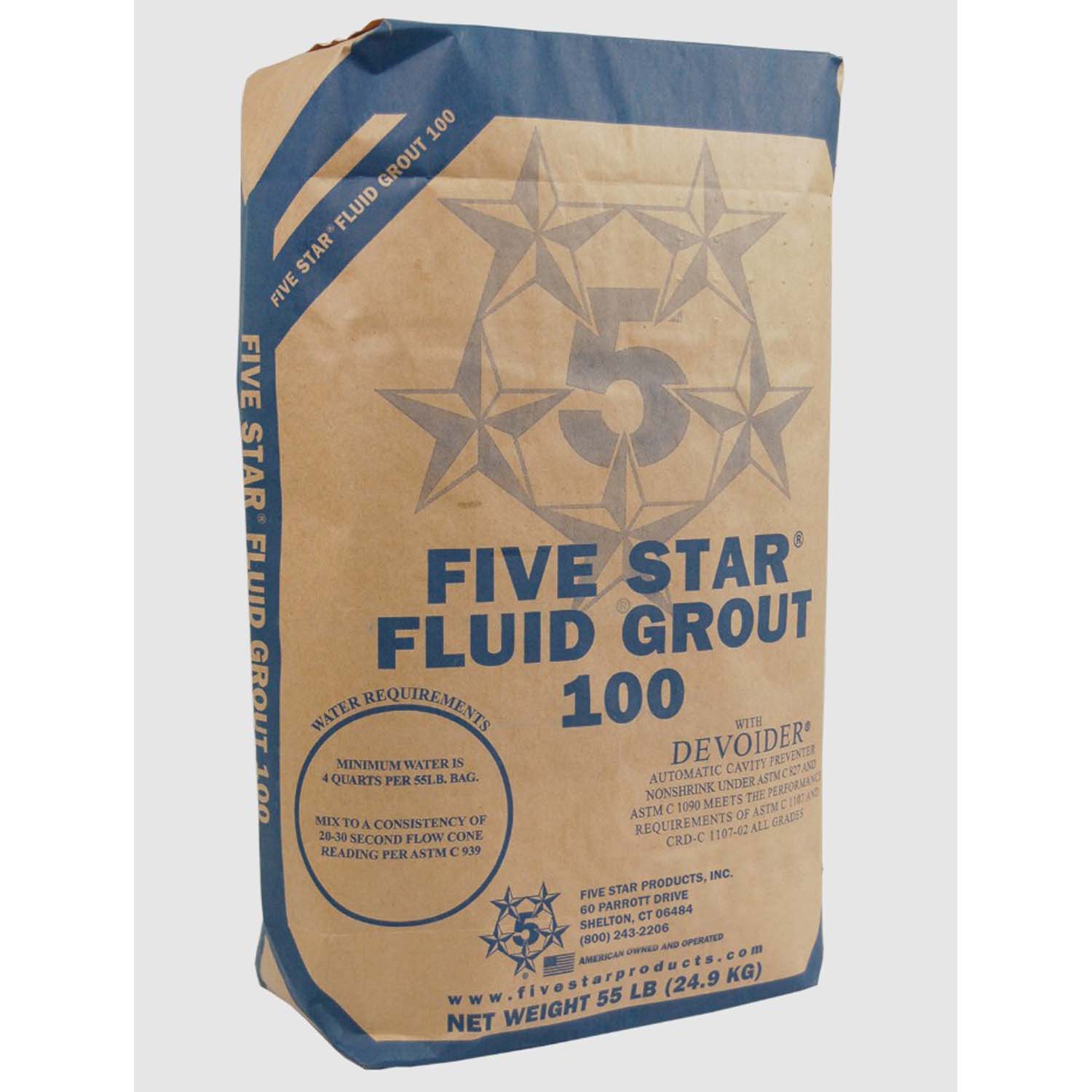

5 STAR FLUID GROUT 100

Description

Five Star® Fluid Grout 100 is a cement-based, nonmetallic, precision, non-shrink fluid grout designed to support machinery and equipment in static or low vibratory conditions requiring precision grouts. It is formulated with Air Release technology, which enables product placement at a wide range of temperatures [40°F – 90°F (4°C – 32°C)] and at different water ratios while providing reliable and consistent in-place results with a 95% Effective Bearing Area (EBA) performance. It can be mixed from a plastic to a fluid consistency, increasing the ease of installation while providing compressive strengths as high as 10,000 psi (69 MPa) in 28 days. Perfect for tight clearance applications down to ½ in. (12 mm).

Five Star® Fluid Grout 100 is the industry’s leading cement-based, nonmetallic, non-shrink fluid grout for supporting machinery and equipment. It is formulated with Air Release technology that combines high performance with the greatest reliability. When tested in accordance with ASTM C 827, Five Star® Fluid Grout 100 exhibits positive expansion. Five Star® Fluid Grout 100 meets the performance requirements of ASTM C 1107-02 Grades A, B and C, ASTM C 1107-07 and CRD-C 621-93 specifications for non-shrink grout over a wide temperature range, 40°F – 95°F (4°C – 35°C).

Key Features

• Air release technology per ACI 351.1 R
• Placement within tight clearances down to ½ in.
• High 1, 7, 28-day strength
• Permanent support for machinery requiring precision alignment
• Does not contain gas-generating additives, such as aluminum powder
• Non-shrink from the time of placement
• 95% Effective Bearing Area (EBA) is typically achieved following proper grouting procedures
• Uses:
  • Grouting clearances to ½ in.
  • Grouting of anchors and dowels
  • Grouting of machinery and equipment to maintain precision alignment
  • Non-shrink grouting of structural steel and precast concrete
  • Preplaced aggregate grouting
  • Support of tanks and vessels
  • Available for Nuclear Safety Zone applications
• Packaging:
  • SKU/Product Code: 25000
  • Description: Five Star® Fluid Grout 100
  • # Units/Pallet: 56
  • Unit Size (Weight | Volume – A  & B)
