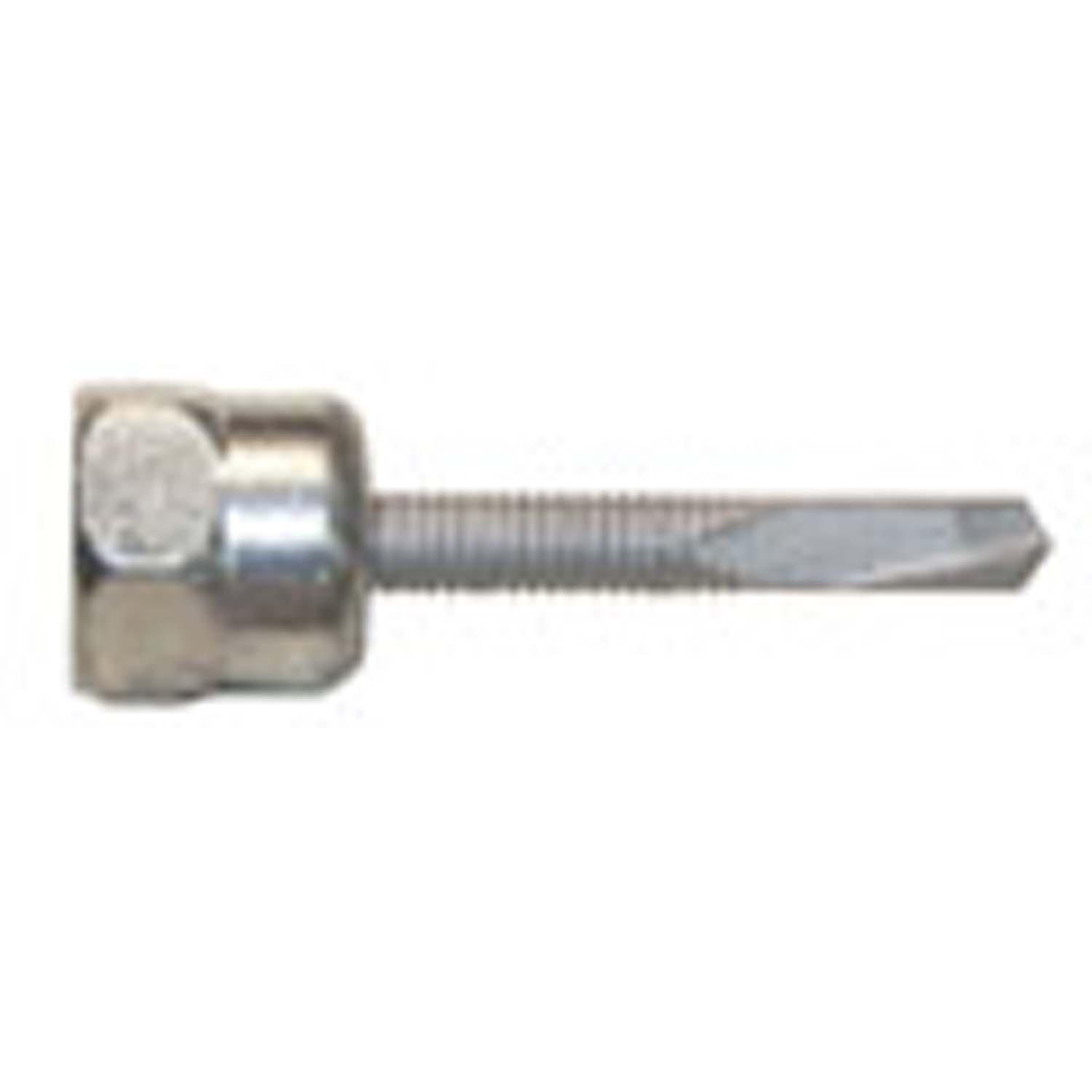

3/8 IN. VERTICAL THREADED ROD ANCHOR 12 IN. X 1.5 FOR STEEL 25/BX

Key Features

• Teks Drill Point technology delivers one step installation process
  • No predrilling required
  • Reduces installation time and cost
• Threaded rod attachment
  • Allows specifiers and designers to engineer systems with fewer attachment points
  • Holds from 446-3125 lbs.
• Installs with SAMMYS Nut Driver
  • Ensures correct installation torque
  • Reduces occurrences of fastener failure due to over driving
• Made with Teks® self-drilling fasteners
• Installs into steel range from 20 gauge - 1/2" thicknesses.
• Saves time from traditional methods.
• Quick to install using the Sammys Nut Driver with an 18V cordless drill/driver.
• A standard screwgun with a depth sensitive nosepiece should be used to install Teks®. For optimal fastener performance, the screwgun should be a minimum of 6 amps and have an RPM range of 0-2500.
• Assembled in the U.S.A.
• Specifications:
  • Model: TEK 50
  • Product Name: Sammys®
  • Rod Size: 3/8" - 16
  • Substrate: Steel
  • Mount Style: Vertical
  • Substrate Fastener Size: #12-24 x 1-1/2" Teks® 5
  • Ultimate Pullout: 3125 lb (3/16")
  • Type: Rod Anchor
  • Product Family: Sammys® Steel 3/8" Rod
  • Anchor Size: #12-24
  • Anchor Diameter: 7/32"
  • Total Length: 1-1/2"
  • Material: Steel
  • Finish: Climaseal®, Electro-Zinc
  • Head: 5/8" AF End-Drilled
  • Drive: Sammys® #14 (Black) Nut Driver (8113910)
  • Grade: C1022 screw, C1010 cap
  • UL Maximum Pipe Size: 4"
  • UL Test Load: 1500 lb
  • FM Max Pipe Size: 4"
  • FM Test Load: 1475 lb
  • Minimum Thickness: .250"-1/4"
  • Maximum Thickness: 1/2"
  • Recommended Installation Tool: SAMMYS® #14 (BLACK) NUT DRIVER (8113910)
  • UL Approved: EX5098
  • FM Approved: 3020935
  • Box Quantity: 25
• Application: Installs vertically into the bottom of steel structures for hanging threaded rod.
