3/8-1/2 IN. BANG-IT CAST-IN-PLACE CONCRETE INSERT ANCHOR FOR METAL DECKING (75/BOX)

Description

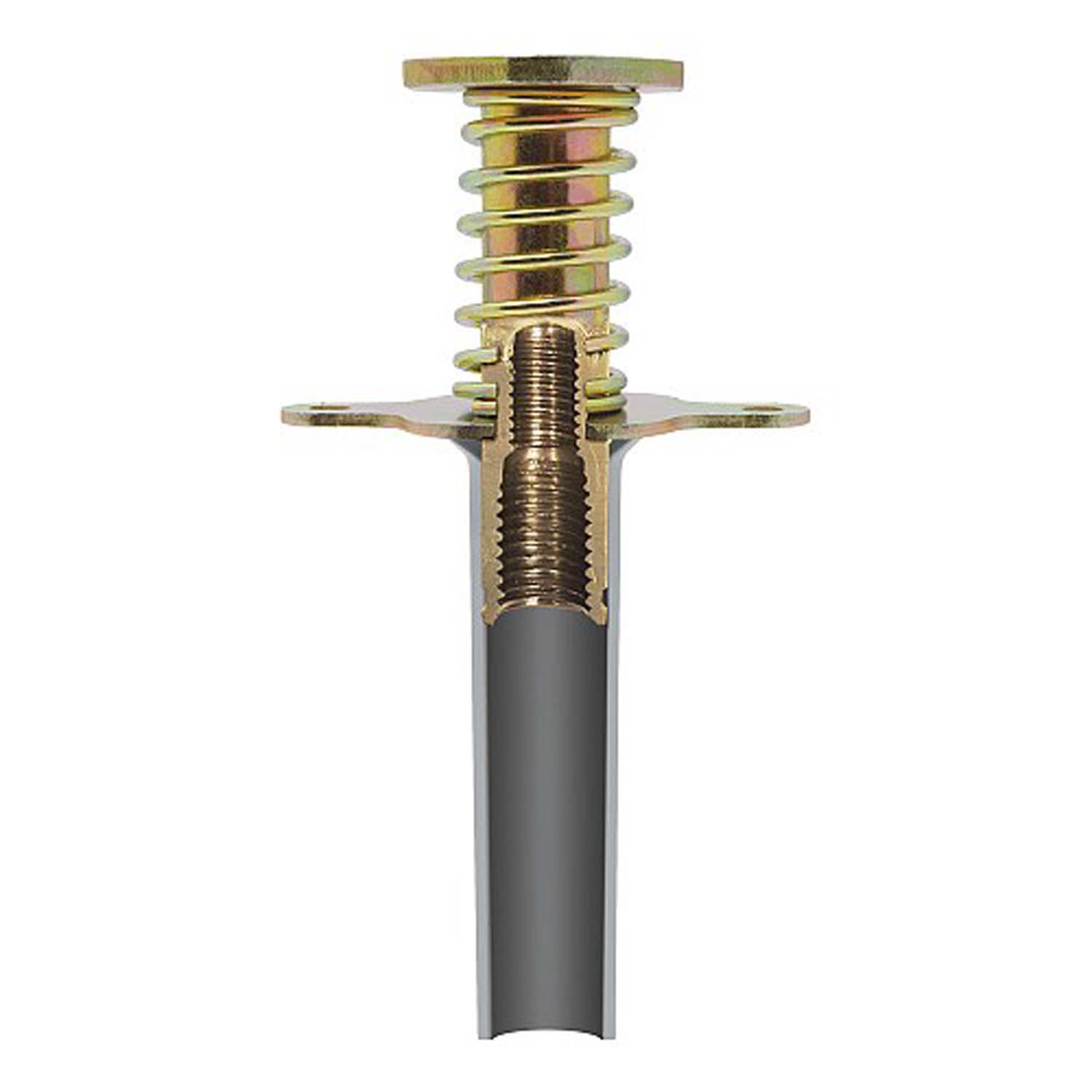

Bang-It+ concrete inserts are designed for installation in and through composite steel deck (i.e. “pan-deck”) used to support newly poured concrete floor or roof slabs. The Bang-It+ concrete inserts are specifically designed to provide hangar attachments for mechanical, electrical, plumbing (MEP) and fire protection.After installation, the protective sleeve of the insert protrudes below the surface of the deck. The sleeves are color coded by size and allow overhead attachment of steel threaded rod in sizes ranging from 1/4" to 3/4" in diameter. The sleeve prevents sprayed fireproofing material and acoustical dampening products from clogging the internal threads of the insert. It also prevents burying, masking or losing the insert location.A push-in thread version is also available which does not require turning the threaded rod or threaded bolt during installation, which can be ideal for applications such as mounting prefabricated hardware and hanger assemblies.

Key Features

• Fast and simple to install, low installed cost
• Sturdy base design resists inserts from being kicked over after placement

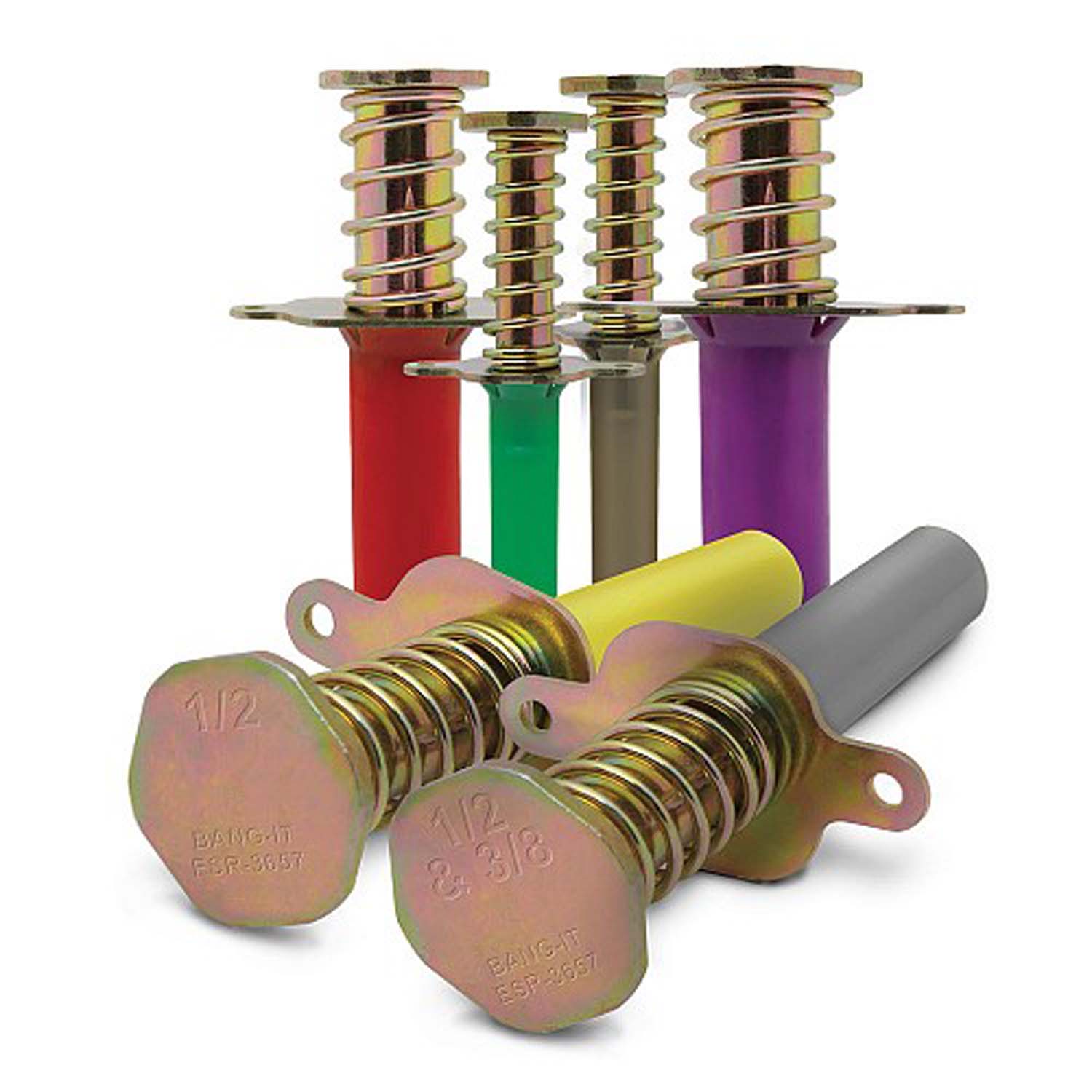

• Color coded by size for simple identification, can be further marked by trade and/or utility

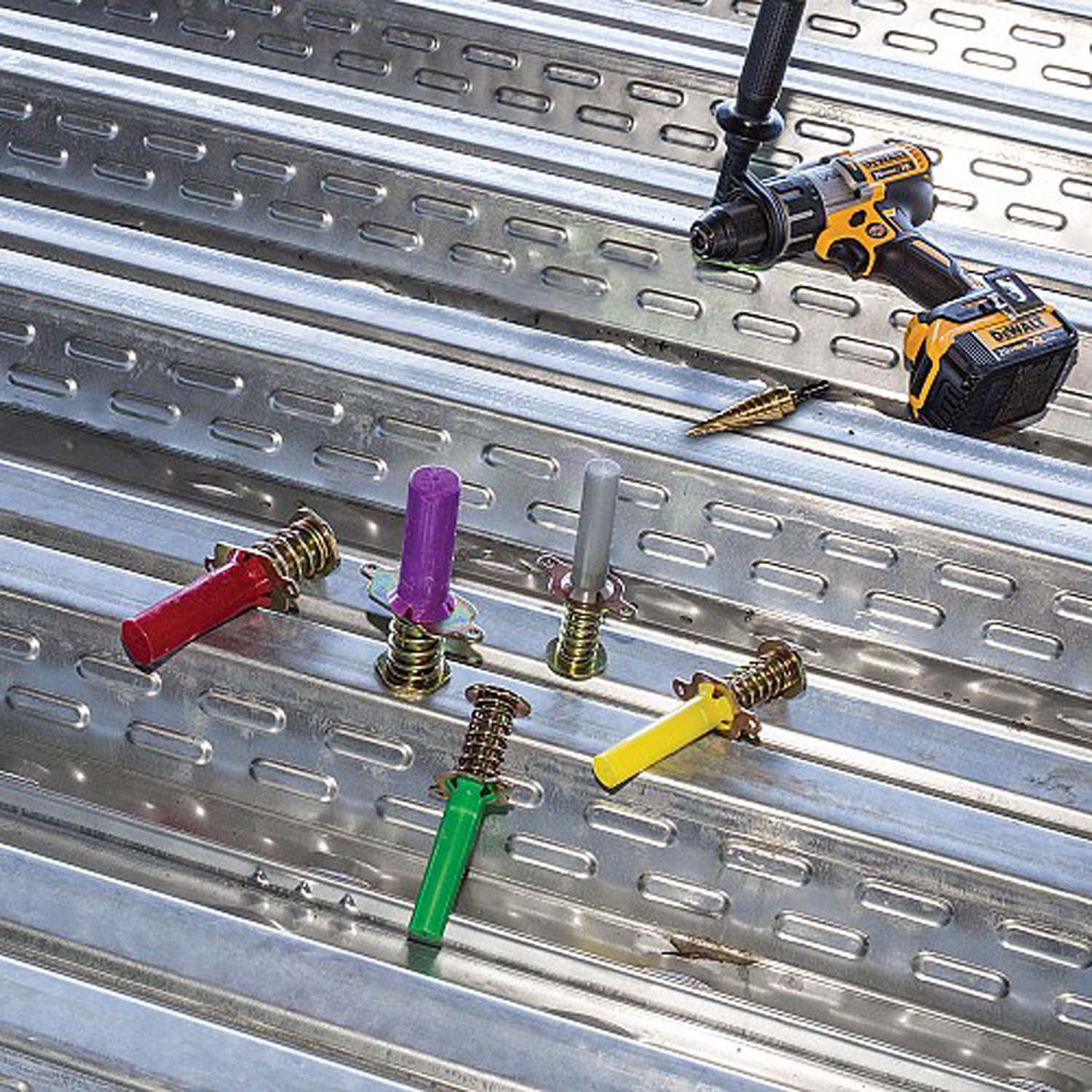

• Inserts can be installed in upper and lower steel deck profiles with limited concrete topping thickness (see installation details)
• Multi thread inserts allow for multiple diameters using the same part
• All sizes of multi thread inserts rated for tension and shear loading

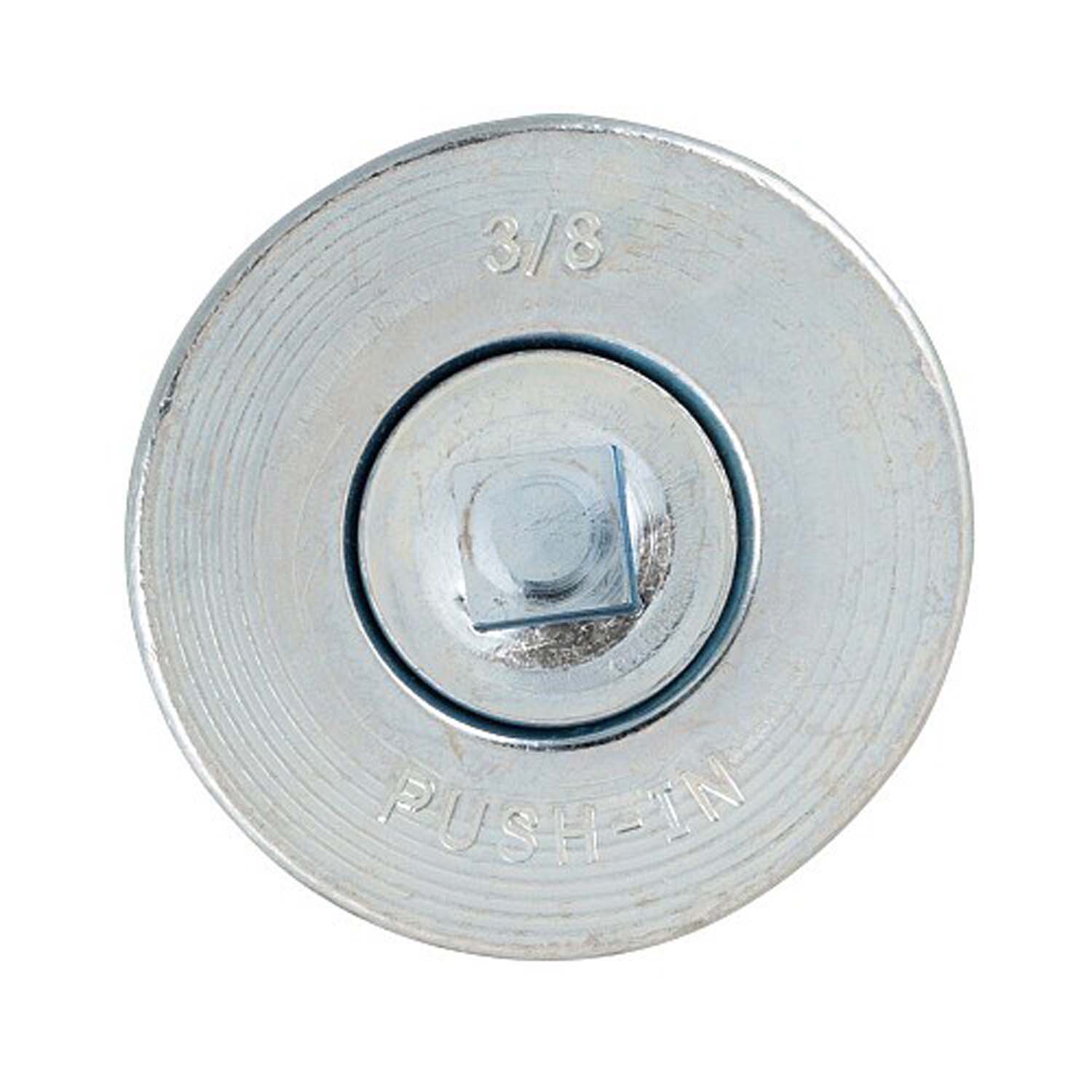

• Push-In thread version does not require turning threaded rod elements during installation
• Inserts can be considered for use and placement with DEWALT Bridge Bar
• Specifications:
  • Description: 3/8-1/2" Bang-It+ Multi
  • Suggested min. hole size in steel deck: 7/8"
  • Anchor Diameter: 3/8-1/2"

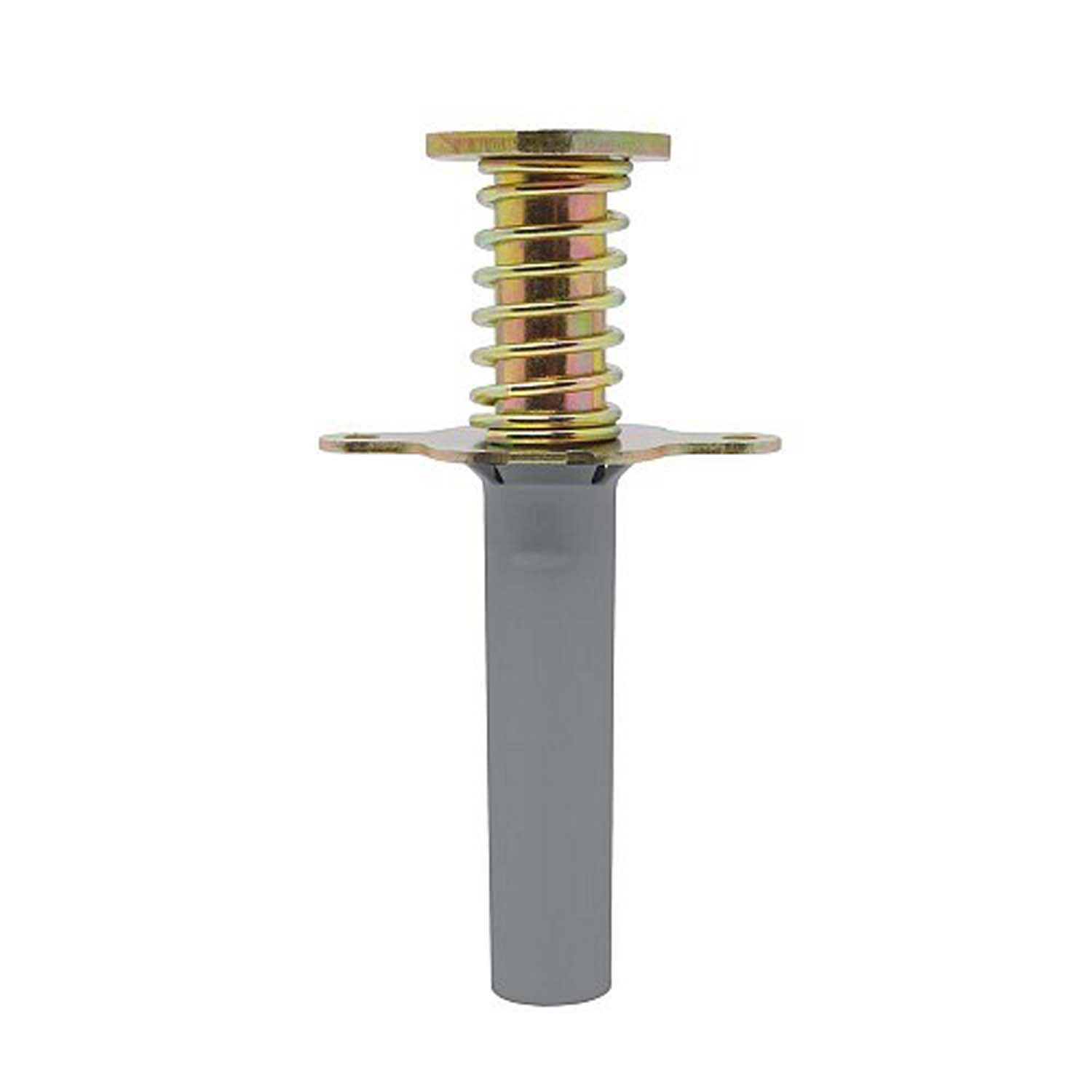

  • Color code: Gray
  • Pack Qty: 75
• Applications:
  • Hanging Threaded Rod Elements
  • HVAC Ductwork and Strut Channels
  • Suspending Trapeze and Cable Trays
  • Pipe Supports and Spinkler Systems
  • Mechanical Utility Lines
  • Conduit and Lighting Systems
  • Cracked and Uncracked Concrete
  • Wind and seismic loading (SDC A - F)
• Approvals:
  • International Code Council, Evaluation Service (ICC-ES), ESR-3657 for concrete-filled steel decks
  • Code compliant with the 2024 IBC/IRC, 2021 IBC/IRC, 2018 IBC/IRC and 2015 IBC/IRC
  • Tested in accordance with ASTM E488 and ICC-ES AC446 for use in cracked and uncracked concrete and with the design provisions of ACI 318 (Strength Design method)
  • Evaluated and qualified by an accredited independent testing laboratory for recognition in cracked and uncracked concrete as well as seismic and wind loading
  • City of Los Angeles, LABC and LARC Supplement (within ESR-3657)
  • Underwriters Laboratories (UL Listed) - File No. EX1289 and VFXT7.EX1289, see listing for sizes Also UL listed and recognized for use in air handling spaces (i.e. plenum rated locations) in accordance with UL 2043; as referenced by UL 203 for pipe hanger equipment
  • FM Approvals (Factory Mutual), Class Numbers 1951, 1952, 1953 for pipe hanger components– see approval for sizes
