347027 3/4 IN. X 4 FT. X 8 FT. RESIN-FORM FILM FACED FORMPLY from Darragh C - Darragh

3/4 IN. X 4 FT. X 8 FT. RESIN-FORM FILM FACED FORMPLY

347027

RESIN-FORM

Description

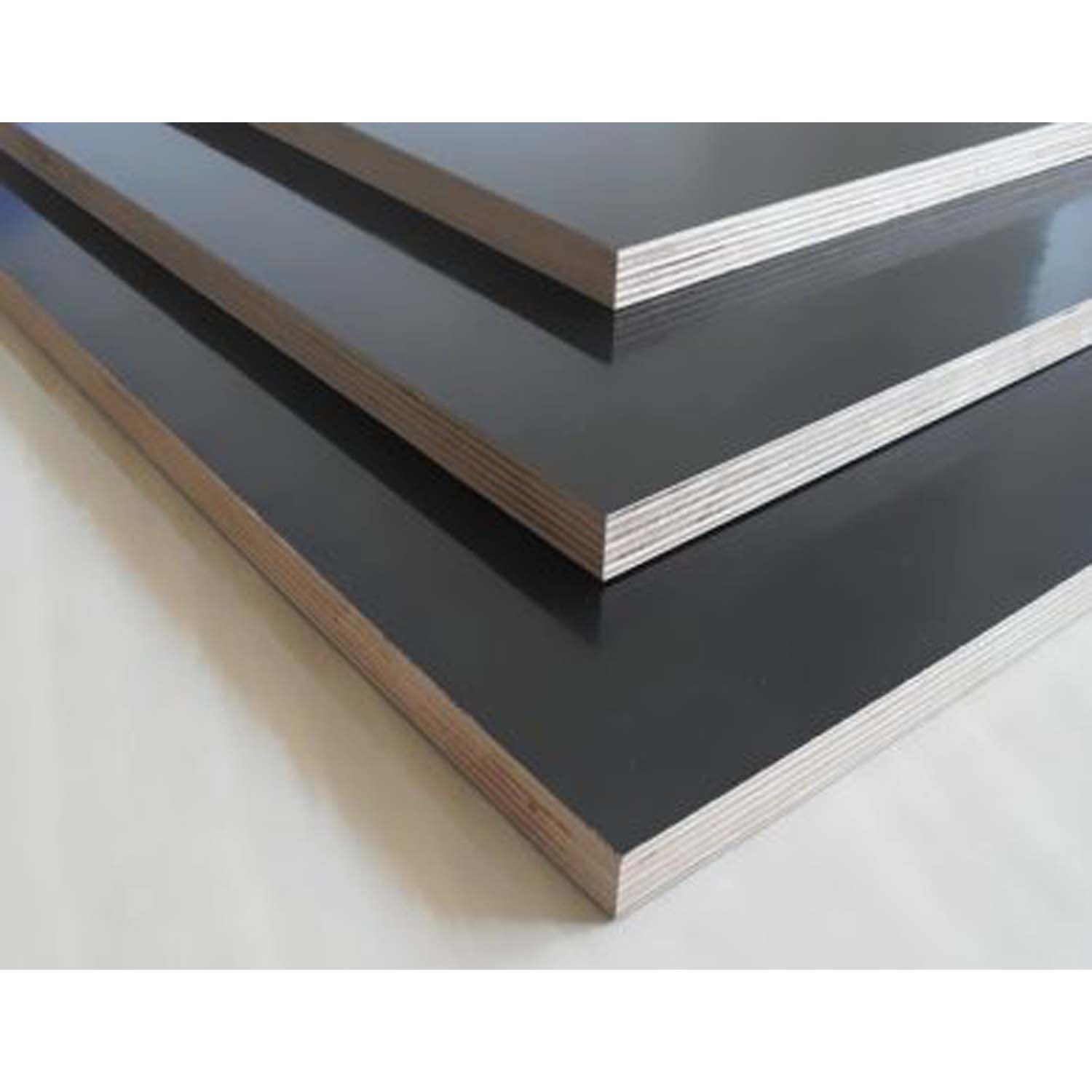

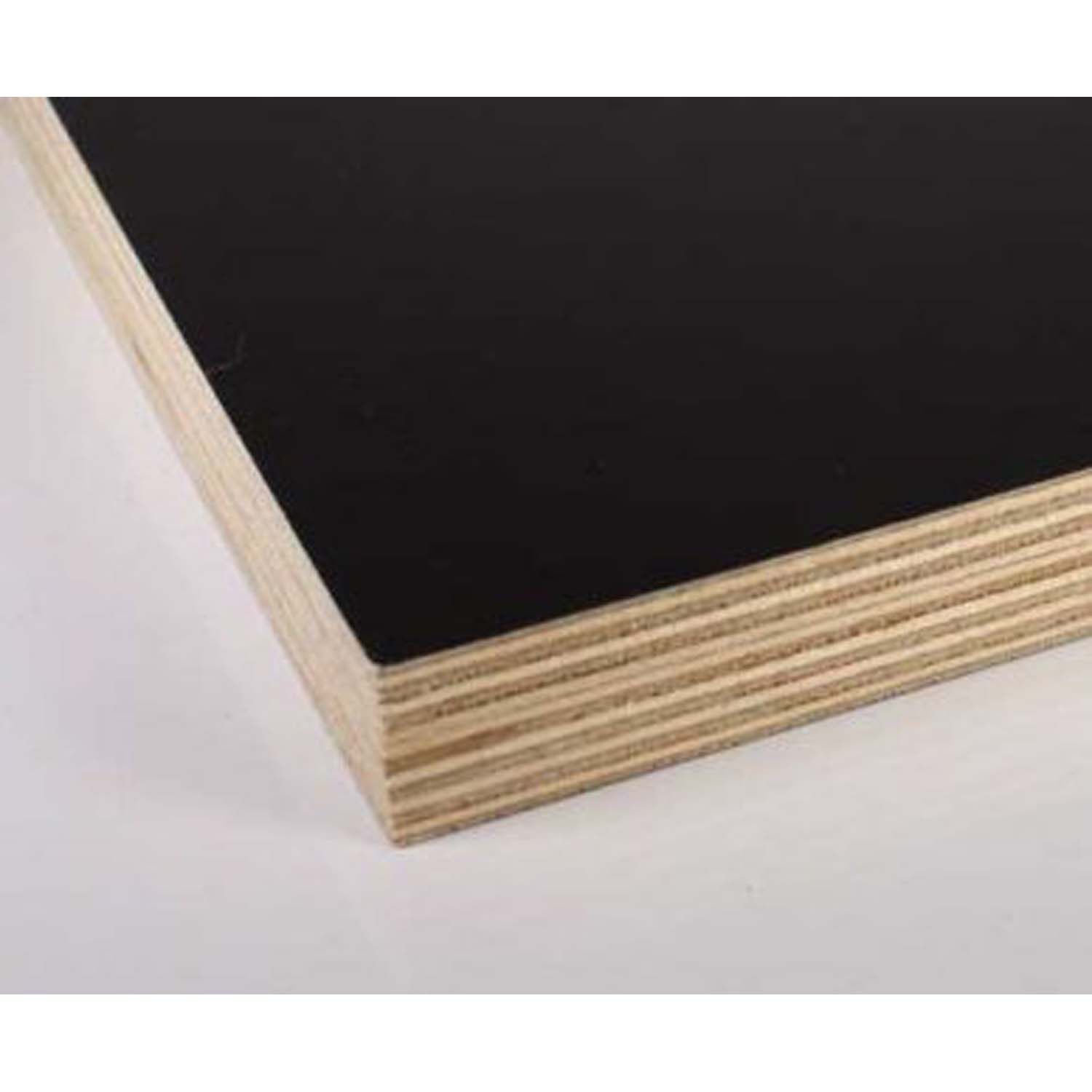

Resin-Form Birch panels are coated with a smooth and wear resistant phenolic film. Panels are used for concrete form-ply. Standard color is dark brown.

The product can be supplied in special colors; for example, light brown, black, green, and opaque yellow. Special colors are not recommended for concrete form-work. They are well suited for interior decoration in buildings and the interior lining of delivery vans.

Key Features

  • Resin-From Birch panels
  • Smooth and wear resistant
  • Multiple colors options
  • Bonding: Phenolic resin glue line.
  • Surface: Face and reverse: Brown phenolic film, Coatings 120 g/m2 (Standard) and 220 g/m2 (Optional)
  • Edge protection: Acrylic-based paint.
  • Panel size:
    • 4X8:  48”x96”
  • Properties of panel surface:
    • The values are approximate and meant for guidance when choosing the film thicknesses.
  • Taber abrasion DIN 53799:
    • Coating 120 g/m2 300 rev’s
    • Coating 220 g/m2 600 rev’s
    • Improved water resistance through coating.
    • The coating is resistant to weak alkalis.
    • Direct exposure to sunlight may accelerate the aging and color alterations of the surface.
    • The coating thickness must be chosen according to the designed concrete quality, number of reuses and casting conditions.
  • Moisture content 8-10%
  • Installation instructions:
    • Cover the panels to protect them from direct sunshine and rain.
    • Seal all cut edges.
    • Use good quality form oil.
    • Seal screw holes with silicone to reduce moisture absorption.|
    • Clean the panels carefully after every use.
    • Handle panels with care to get maximum reuse.
