602553 3/4 IN. DRIVE STANDARD LENGTH IMPACT SOCKET 6 POINT SET 3/4 TO 2-1/2 - Darragh

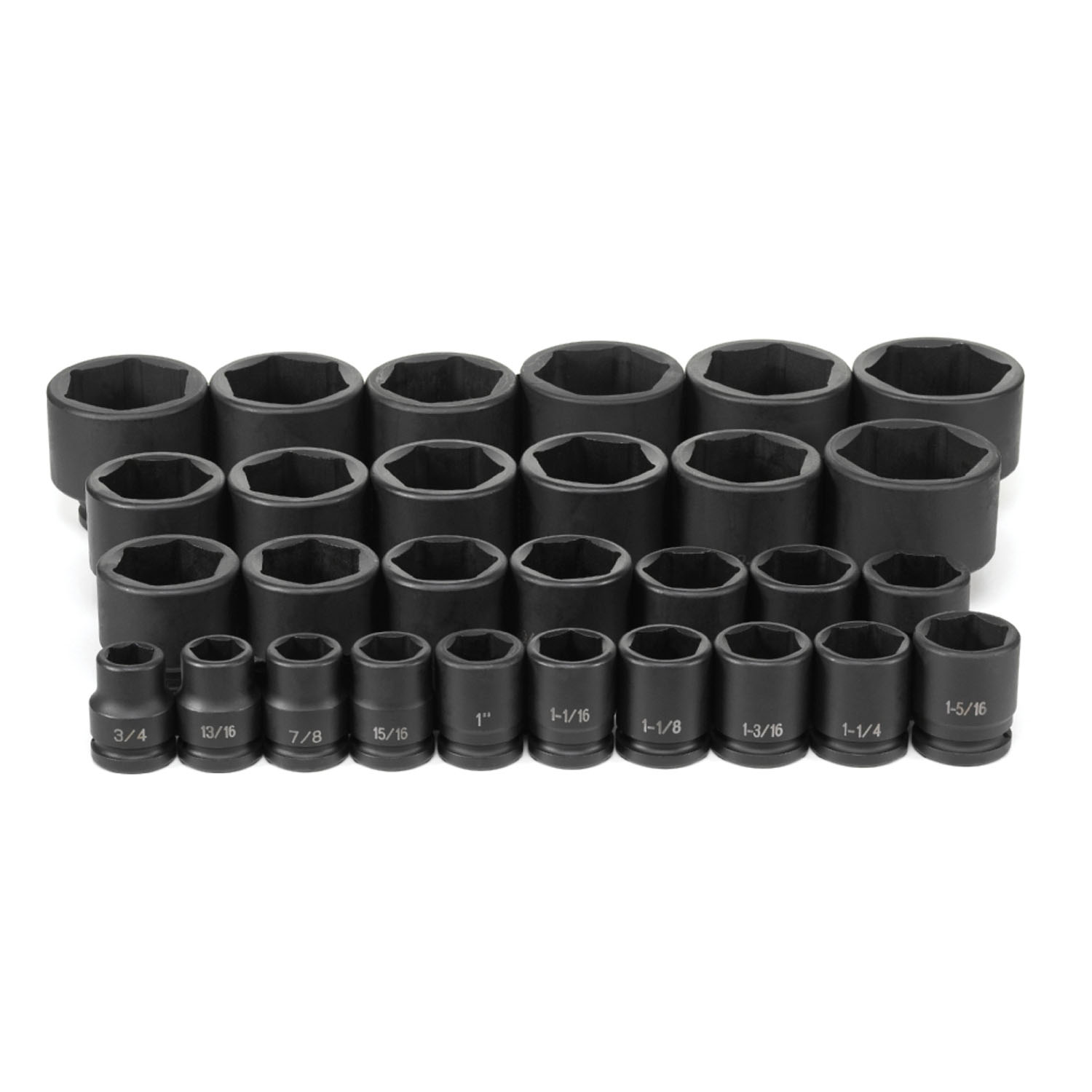

3/4 IN. DRIVE STANDARD LENGTH IMPACT SOCKET 6 POINT SET 3/4 TO 2-1/2 IN.

Grey Pneumatic

602553

8029

Contains

ITEM # SIZE SHP PIN O-RING R1 A B C D E
3024R 3/4"" I 3220 3210 3110 1.50 1.18 .98 .51 1.97
3026R 13/16"" I 3220 3210 3110 1.50 1.26 1.06 .59 2.05
3028R 7/8"" I 3220 3210 3110 1.50 1.34 1.06 .59 2.05
3030R 15/16"" I 3220 3210 3110 1.50 1.42 1.06 .63 2.05
3032R 1"" III 3220 3210 3110 1.50 1.57 1.06 .63 2.05
3034R 1-1/16"" III 3220 3210 3110 1.50 1.57 1.06 .75 2.05
3036R 1-1/8"" III 3221 3211 3111 1.65 1.65 1.06 .83 2.05
3038R 1-3/16"" III 3221 3212 3111 1.73 1.73 1.06 .83 2.05
3040R 1-1/4"" III 3221 3212 3111 1.73 1.73 1.06 .87 2.05
3042R 1-5/16"" III 3221 3212 3111 1.73 1.85 1.22 .87 2.2
3044R 1-3/8"" III 3221 3212 3111 1.73 1.97 1.22 .87 2.20
3046R 1-7/16"" III 3221 3212 3111 1.73 2.01 1.22 .98 2.20
3048R 1-1/2"" III 3221 3212 3111 1.73 2.09 1.22 .98 2.20
3050R 1-9/16"" III 3221 3212 3111 1.73 2.20 1.46 .98 2.44
3052R 1-5/8"" III 3221 3212 3111 1.73 2.28 1.46 1.06 2.44
3054R 1-11/16"" III 3221 3212 3111 1.73 2.50 1.46 1.06 2.44
3056R 1-3/4"" III 3221 3212 3111 1.73 2.56 1.46 1.06 2.44
3058R 1-13/16"" III 3221 3212 3111 1.73 2.64 1.69 1.18 2.68
3060R 1-7/8"" III 3221 3212 3111 1.73 2.68 1.69 1.18 2.68
3062R 1-15/16"" III 3221 3212 3111 1.73 2.76 1.77 1.18 2.76
3064R 2"" III 4520 4511 3112 2.13 2.80 1.85 1.26 2.83
3066R 2-1/16"" III 4520 4511 3112 2.13 2.91 1.85 1.26 2.83
3068R 2-1/8"" III 4520 4511 3112 2.13 3.03 1.85 1.26 2.83
3070R 2-3/16"" III 4520 4511 3112 2.13 3.03 1.93 1.38 2.91
3072R 2-1/4"" III 4520 4511 3112 2.13 3.15 1.93 1.38 2.91
3074R 2-5/16"" III 4520 4511 3112 2.13 3.23 1.97 1.46 2.95
3076R 2-3/8"" III 4520 4511 3112 2.13 3.31 1.97 1.46 2.95
3078R 2-7/16"" III 4520 4511 3112 2.13 3.39 1.97 1.46 2.95
3080R 2-1/2"" III 4520 4511 3112 2.13 3.46 1.97 1.46 2.95
