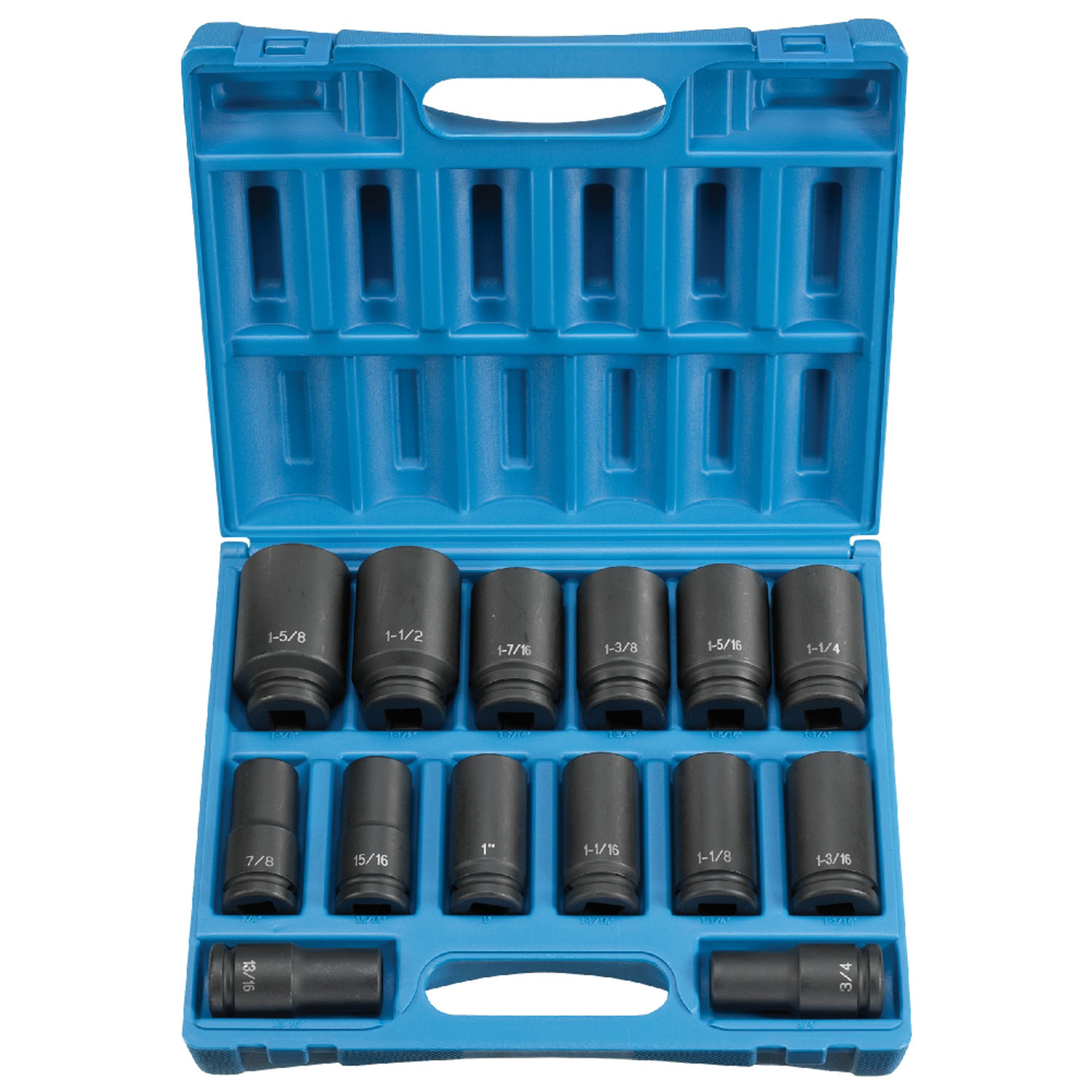

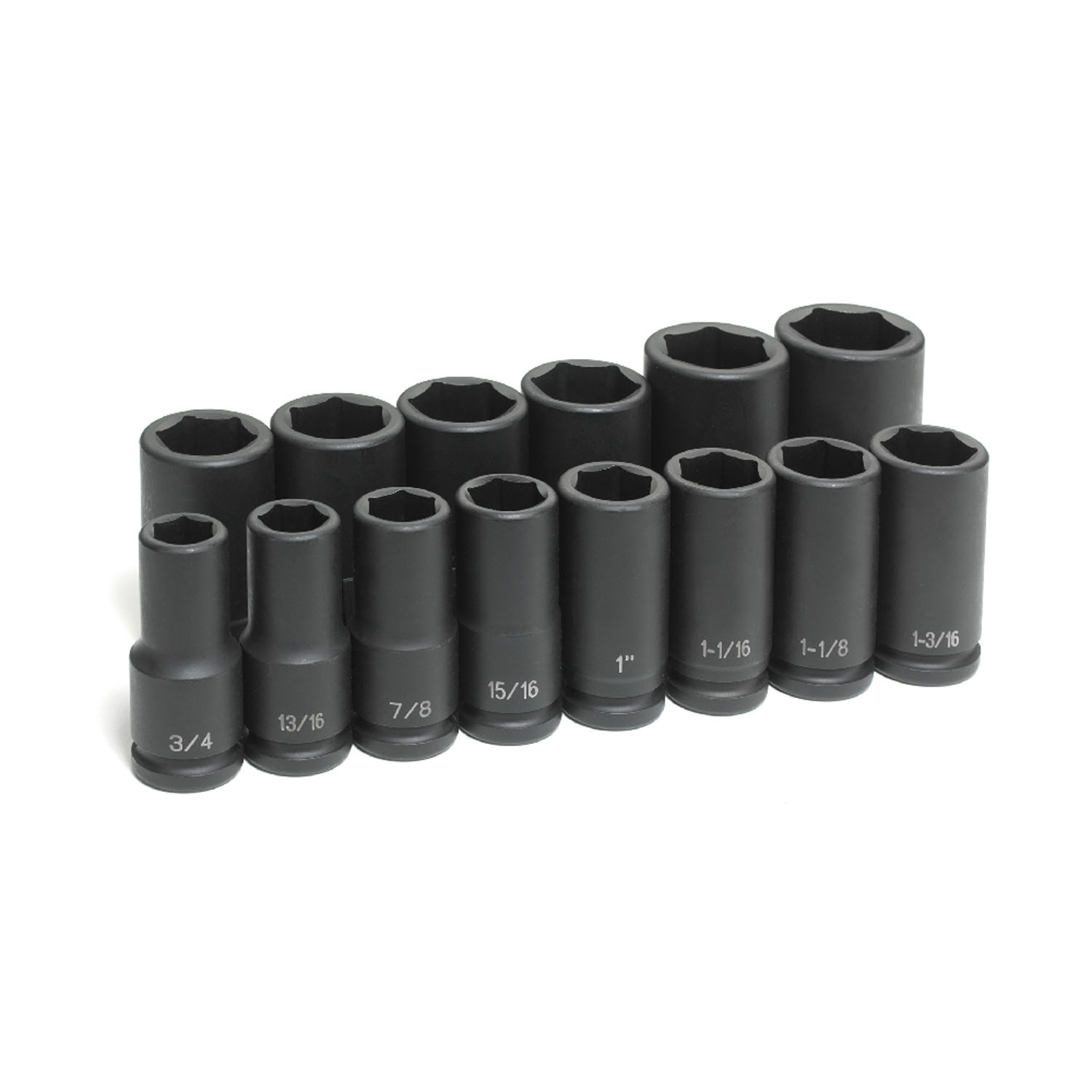

3/4 IN. DRIVE DEEP LENGTH IMPACT 6 POINT SOCKET SET 3/4 TO 1-5/8 IN.
Grey Pneumatic
2104592
8038D
Contains
| ITEM # | SIZE | SHP | PIN | O-RING | R1 | A | B | C | D | E |
|---|---|---|---|---|---|---|---|---|---|---|
| 3024D | 3/4" | I | 3220 | 3210 | 3110 | 1.50 | 1.18 | 2.36 | .75 | 3.35 |
| 3026D | 13/16" | I | 3220 | 3210 | 3110 | 1.50 | 1.26 | 2.36 | .87 | 3.35 |
| 3028D | 7/8" | I | 3220 | 3210 | 3110 | 1.50 | 1.34 | 2.36 | .87 | 3.35 |
| 3030D | 15/16" | I | 3220 | 3210 | 3110 | 1.50 | 1.42 | 2.36 | .94 | 3.35 |
| 3032D | 1" | III | 3220 | 3210 | 3110 | 1.50 | 1.57 | 2.36 | .98 | 3.35 |
| 3034D | 1-1/16" | III | 3220 | 3210 | 3110 | 1.50 | 1.57 | 2.36 | 1.06 | 3.35 |
| 3036D | 1-1/8" | II | 3221 | 3211 | 3111 | 1.65 | 1.65 | 2.36 | 1.14 | 3.35 |
| 3038D | 1-3/16" | II | 3221 | 3212 | 3111 | 1.73 | 1.73 | 2.36 | 1.18 | 3.35 |
| 3040D | 1-1/4" | III | 3221 | 3212 | 3111 | 1.73 | 1.93 | 2.36 | 1.26 | 3.35 |
| 3042D | 1-5/16" | III | 3221 | 3212 | 3111 | 1.73 | 1.97 | 2.36 | 1.34 | 3.35 |
| 3044D | 1-3/8" | III | 3221 | 3212 | 3111 | 1.73 | 1.97 | 2.36 | 1.38 | 3.35 |
| 3046D | 1-7/16" | III | 3221 | 3212 | 3111 | 1.73 | 2.01 | 2.36 | 1.46 | 3.35 |
| 3048D | 1-1/2" | III | 3221 | 3212 | 3111 | 1.73 | 2.28 | 2.76 | 1.50 | 3.74 |
| 3052D | 1-5/8" | III | 3221 | 3212 | 3111 | 1.73 | 2.36 | 2.76 | 1.50 | 3.74 |
| CA8038D | ||||||||||
| SL02D |
