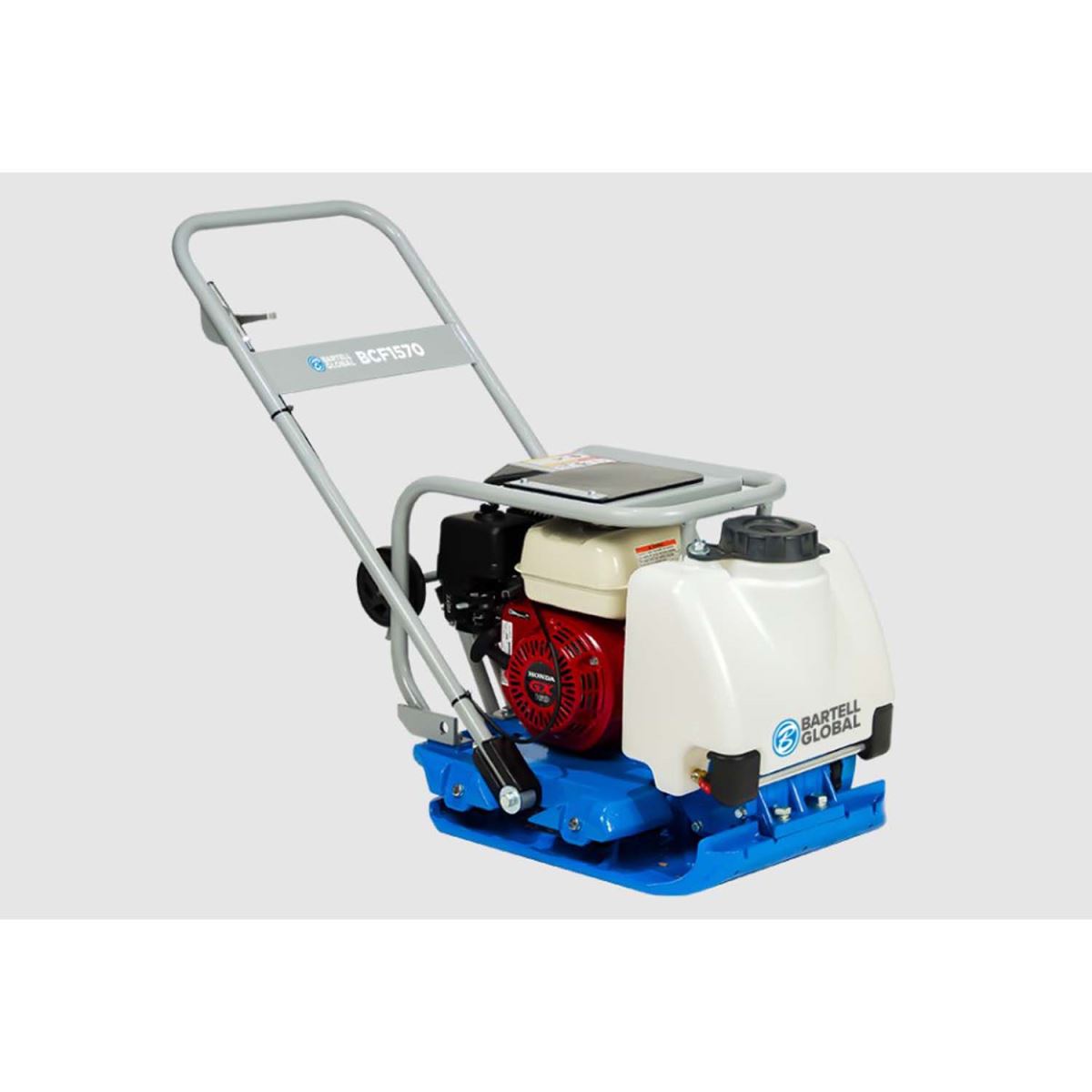

20 X 21 IN. FORWARD PLATE COMPACTOR WITH HONDA GX160 ENGINE

Description

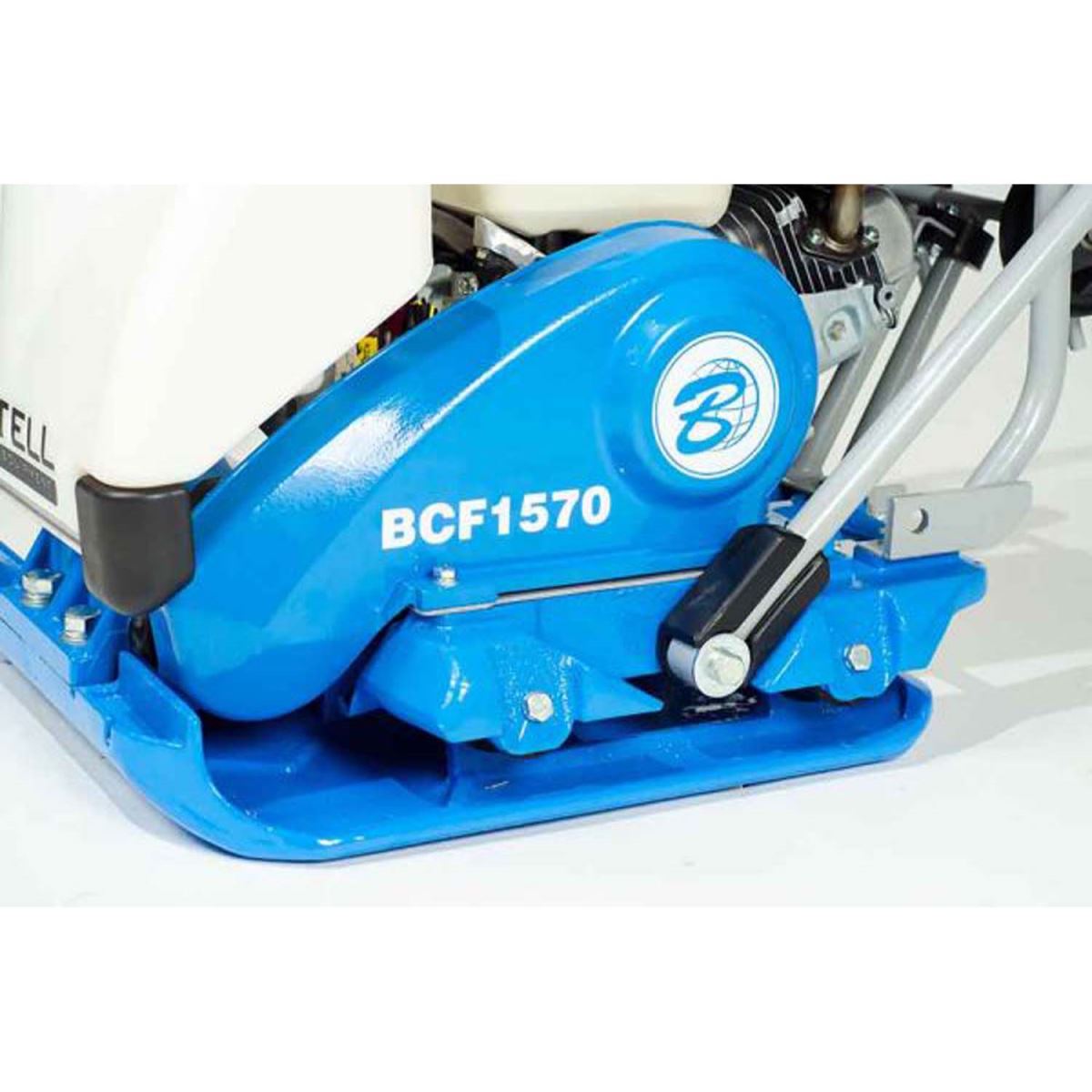

Bartell forward plates are innovative, hard-hitting, and low maintenance. The BCF1570 is our most popular forward compactor and is perfect for a wide range of compaction applications. The built-in water tank allows the compactor to be used on asphalt, and also allows for better dust control on dirt/soil.

Key Features

• Robust throttle control mounted on handle for safe and convenient operator control
• Anti-vibration handle
• Folding handle for compact storage
• Robust throttle control mounted on handle for safe and convenient operator control
• Anti-vibration handle
• Folding handle for compact storage

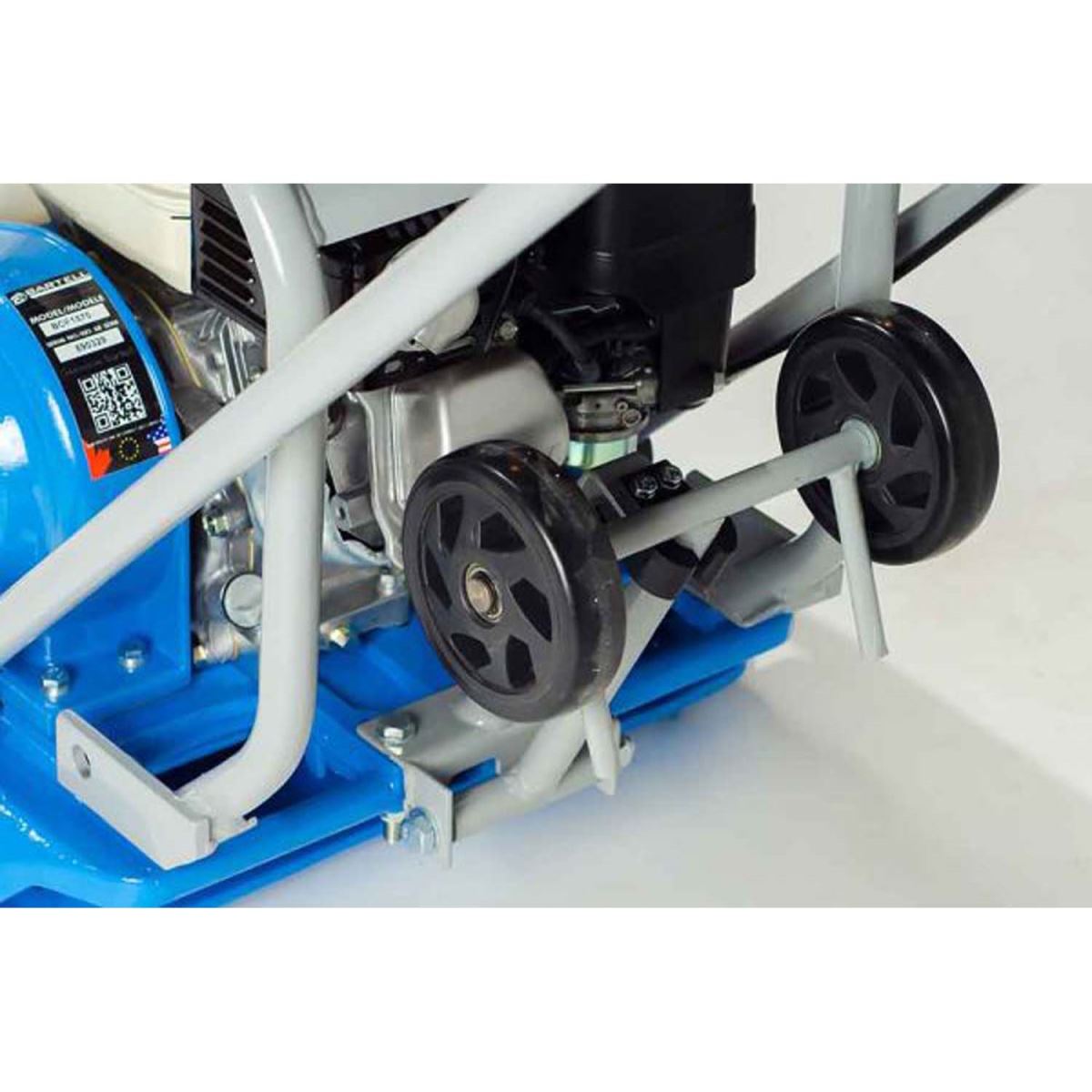

• Retractable wheels flip down for built-in mobility
• Integrated lifting bale for safe loading and unloading
• Straight-edge plate design leaves no unreachable margins
• Sealed housing keeps debris from interfering with the belt
• Built-in removable water tank
• Optional urethane mat protects pavers and slabs from scratches and breakage
• Specification
  • Engine: Honda GX160, 4.8hp (3.6kW)
  • Compaction Force: 3461 lbf, 15 kN,1570 kgf
  • Max Travel Speed: 82'/min (25m/min)
  • Length: 44" (1118mm)
  • Width: 20" (508mm)
  • Height: 33" (838mm)
  • Weight: 217lbs (98kg)
  • Plate Size: 20' x 21' (500mm x525mm)
