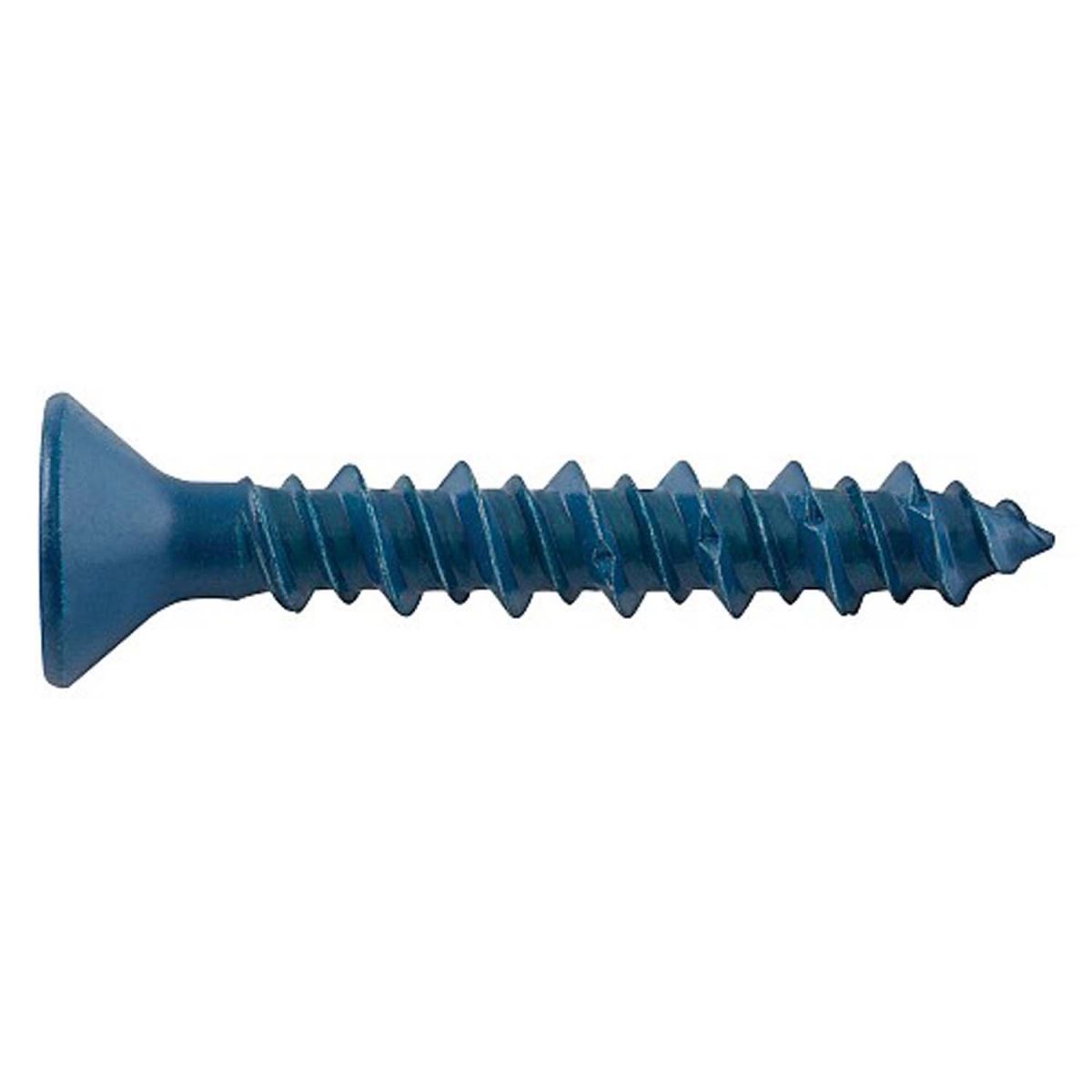

1/4 X 5 X 1-7/8 IN. T-25 ULTRACON+ STAR FLAT HEAD BLUE CONCRETE SCREW ANCHOR

Description

The UltraCon+ fastening system is a complete family of screw anchors for light to medium duty applications in concrete, masonry block, brick, and wood base materials. The UltraCon+ is fast and easy to install and provides a neat, finished appearance. The UltraCon+ screw anchor is engineered with matched tolerance drill bits and installation tools designed to meet the needs of the user and also provide optimum performance. The UltraCon+ features a gimlet point for selfdrilling into wood base materials without pre-drilling. The UltraCon+ screw anchor is available in carbon steel with a Stalgard coating in several colors. Head styles include a slotted hex washer head, Phillips flat head, Star flat head, Phillips Trimfit flat head, Star Trimfit flat head and Hex flange head.

Key Features

• Available in several head styles
• Several colors and finishes to match application
• Removable (reusable in wood)
• Gimlet point for self drilling into wood
• Does not exert expansion forces
• No hole spotting required
• Good corrosion protection with Stalgard coating
• High-low thread design for greater stability and grip
• Specifications:

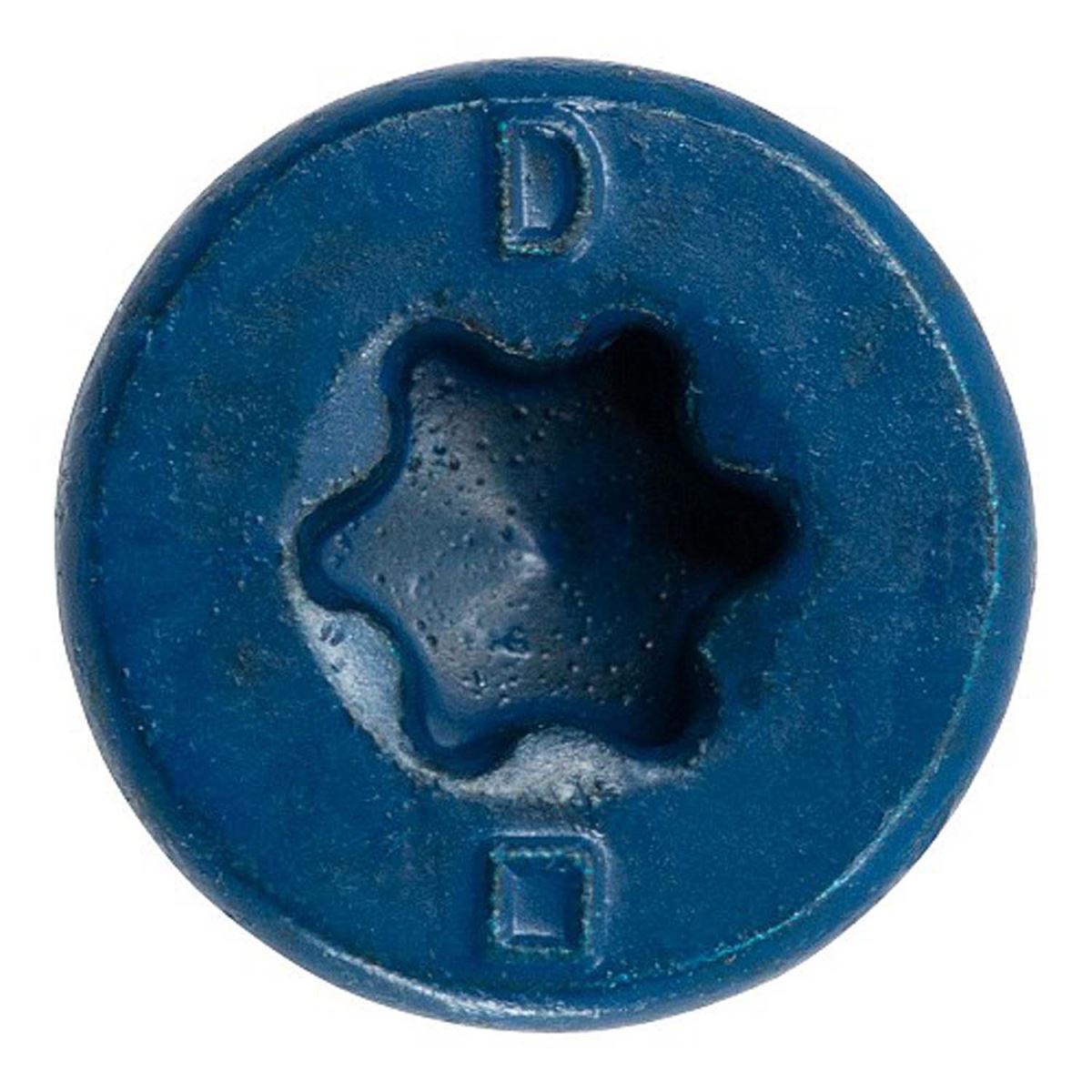

  • Head Style: Star Flat
  • Screw Size: 3/16" X 1-1/4"
  • Thread Length: 1"
  • Anchor Material: Carbon Steel
  • Driver: T-25
  • Pack Qty: 100
• Applications:
  • Window and door frames
  • Shutters and guards
  • Lighting fixtures
  • Thresholds
  • Joint flashing
  • Screened enclosures
• Approvals & Listings
  • International Code Council, Evaluation Service (ICC-ES), ESR-3068 for uncracked concrete, ESR-3196 for masonry, ESR-3042 for wood, and ESR-3213 for chemically treated lumber
  • Code compliant with the International Building Code/International Residential Code: 2021 IBC/IRC, 2018 IBC/IRC, 2015 IBC/IRC, and 2012 IBC/IRC
  • Tested in accordance with ACI ACI 355.2/ASTM E488 and ICC-ES AC193 for use in concrete, ICC-ES AC106 for use in masonry, ICC-ES AC233 for use in wood, and ICC-ES AC257 for use in pressure treated lumber
  • Evaluated and qualified by an accredited independent testing laboratory for reliability against brittle failure, e.g. hydrogen embrittlement
  • City of Los Angeles, LABC and LARC Supplement (within ICC-ES evaluation reports)
  • Miami-Dade County Notice of Acceptance (NOA) No. 21-0113.01
  • Florida Statewide Approval FL29080
