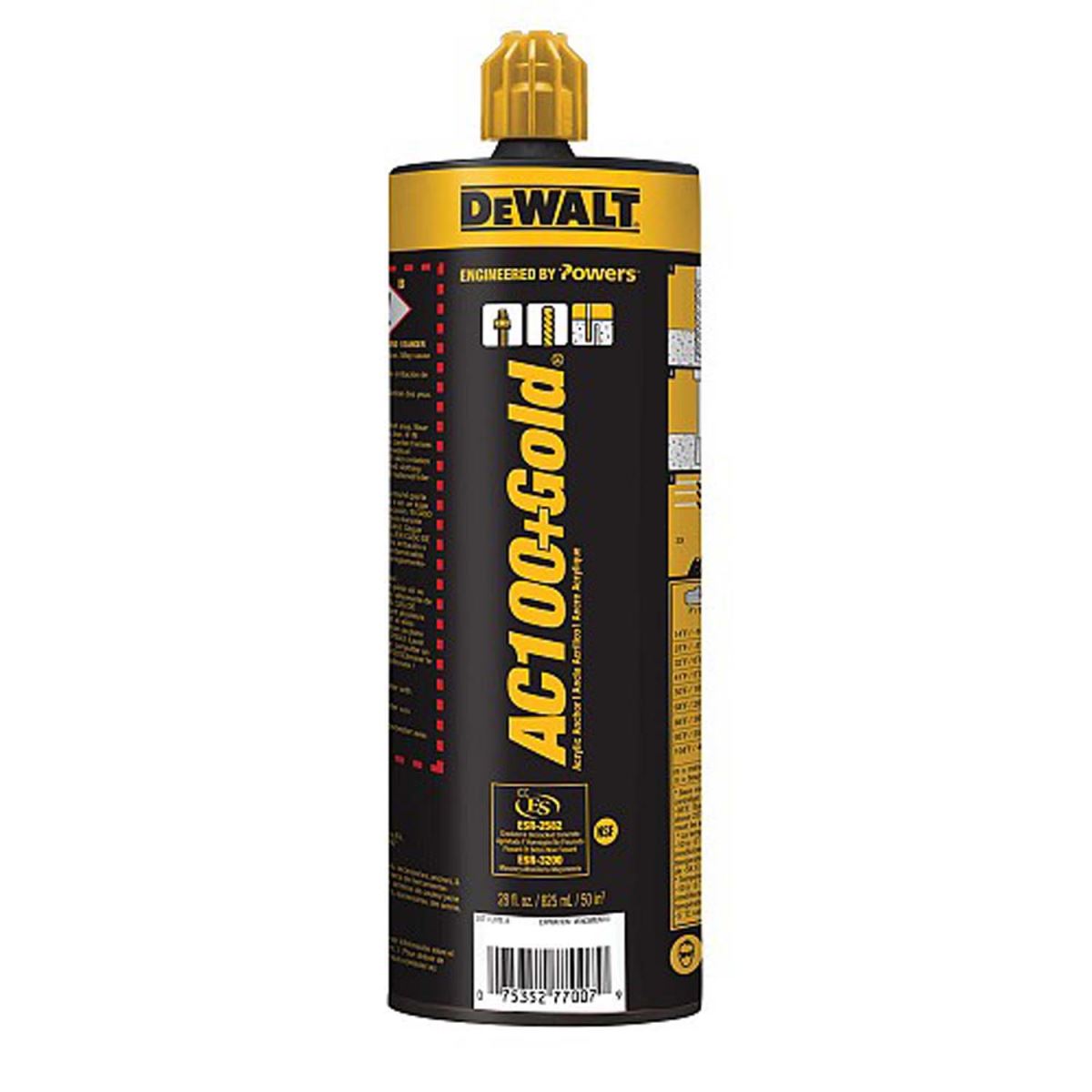

14 OZ AC100 GOLD VINYLESTER ADHESIVE ANCHOR DUAL CARTRIDGE

Description

The AC100+ Gold is a two-component vinylester adhesive anchoring system. The system includes injection adhesive in plastic cartridges, mixing nozzles, dispensing tools and hole cleaning equipment. The adhesive is designed for bonding threaded rod and reinforcing bar elements into drilled holes in concrete and masonry base materials. It can be considered for use in solid base materials as well as hollow base materials with screen tubes.

Key Features

• Designed for use with threaded rod and reinforcing bar hardware elements
• Consistent performance in low and high strength concrete
• Evaluated and recognized for freeze/thaw performance and sustained loading
• Evaluated and recognized for a range of embedments
• Versatile low odor formula with optimized cure time
• Evaluated and recognized for long term and short term loading (see performance tables)
• Mixing nozzles proportion adhesive and provide simple delivery method into drilled holes
• Cartridge design allows for multiple uses using extra mixing nozzles
• Universal product for concrete and masonry (hollow and solid base materials)
• Application:
  • Bonding threaded rod and reinforcing bar into hardened concrete and masonry
  • Evaluated for use in dry and water-saturated concrete (including water filled holes)
  • Suitable to resist loads in cracked or uncracked concrete base materials
  • Adhesive system can be installed in a wide range of base material temperatures; qualified for anchoring applications as low as 14°F (-10°C)
  • Tested and qualified for wind and seismic loading (SDC A - F)
• Approvals:
  • International Code Council, Evaluation Service (ICC-ES) ESR-2582 for concrete
  • International Code Council, Evaluation Service (ICC-ES) ESR-3200 for masonry
  • International Code Council, Evaluation Service (ICC-ES) ESR-4105 for Unreinforced Masonry (URM)
  • Code compliant with the 2021 IBC/IRC, 2018 IBC/IRC, 2015 IBC/IRC and 2012 IBC/IRC
  • Tested in accordance with ASTM E488 / ACI 355.4 and ICC-ES AC308 for use in structural concrete with design according to ACI 318 (-19 & -14) Chapter 17 and ACI 318 Appendix D
  • Tested in accordance with ICC-ES AC58 and ICC-ES AC60 for use in masonry walls
  • Compliant with NSF/ANSI Standard 61 for drinking water system components – health effects
  • Compliant to California DPH for VOC emissions and South Coast AQMD for VOC content (LEED v4.1)
  • Conforms to requirements of ASTM C881 including C882 and AASHTO M235, Types I, II, IV and V, Grade 3, Class A and conforms to requirements of ASTM C881 Types I and IV, Grade 3, Class B
  • Department of Transportation listings – see www.DEWALT.com or contact transportation agency
