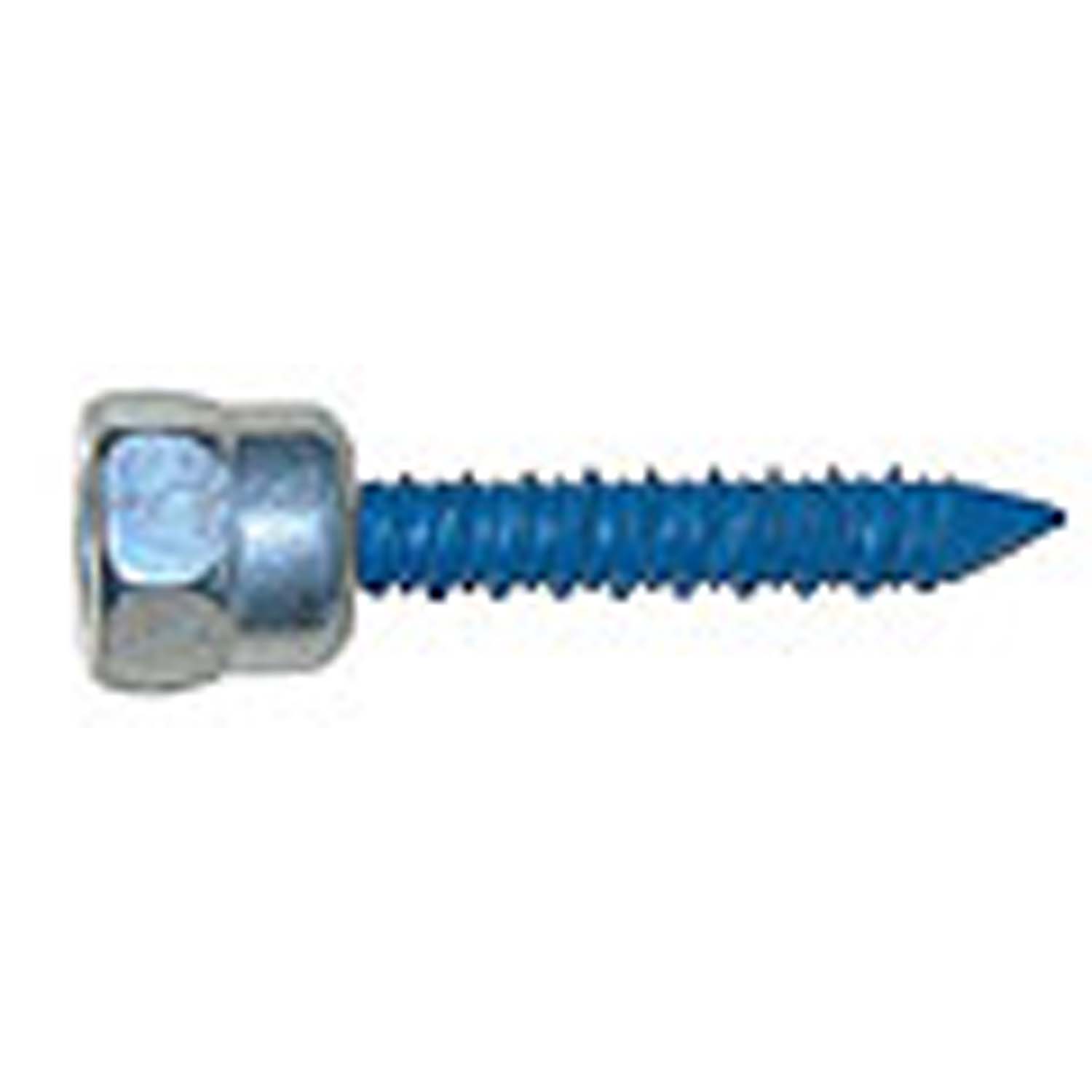

1/4 IN. VERTICAL THREADED ROD ANCHOR 16 IN. X 1.75 FOR STEEL 25/BX

Key Features

• Easy two step installation process
  • Drill hole & drive Sammys concrete anchor using one kit (concrete installation kit)
  • Reduces installation time and cost
• Threaded rod attachment
  • Allows specifiers and designers to engineer systems with fewer attachment points
  • Holds up to 2400 lbs.
• Installs with SAMMYS Nut Driver
  • Ensures correct installation torque
  • Reduces occurrences of fastener failure due to over driving
• 1/4" pre-drilled pilot hole required.
• Concrete Installation Tool available for a one tool installation process.
• Assembled in the U.S.A.
• Specifications:
  • Model: CST 200
  • Product Name: Sammys®
  • Rod Size: 1/4" - 20
  • Substrate: Concrete
  • Mount Style: Vertical
  • Substrate Fastener Size: 5/16" x 1-3/4"
  • Ultimate Pullout: 2400lb
  • Type: Rod Anchor
  • Product Family: Sammys® Steel 1/4 Rod
  • Anchor Diameter: 5/16"
  • Hole Size: 1/4"
  • Material: Steel
  • Finish: Climaseal®, Electro-Zinc
  • Head: 5/8" AF End-Drilled
  • Drive: Sammys® #14 (Black) Nut Driver (8113910)
  • Grade: C1022 screw, C1010 cap
  • Recommended Installation Tool: SAMMYS® #14 (BLACK) NUT DRIVER (8113910)
  • Box Quantity: 25
• Application: Installs vertically into the bottom of steel structures for hanging threaded rod.
• Installation Instructions:
  • 1. Using an SDS 250 carbide tip bit or a HEX RECEIVER with a #250 carbide tip bit, pre-drill the concrete member to a depth of 2" with a hammer/rotary hammer drill set on impact mode.
  • 2. After pre-drilling has been completed, install the SLEEVE TOOL over the bit (the bit should remain in the drill), and insert the #14 (black) nut driver (p/n 8113910) into the opposite end.
  • 3. Insert the CST screw into the nut driver.
  • 4. Place tip of screw into the pre-drilled hole, turn impact/drill unit to drill mode and begin insertion. When the nut driver spins freely on the CST screw, installation is complete. Stop and remove drill.
  • 5. The concrete screw is ready to receive 1/4", 3/8", 1/2" or metric all thread rod or bolt stock (#14SW red nut driver used with 1/2" screw).
  • Use a 1200 maximum RPM drill for installation. Do not install concrete screws wihle the drill unit is in impact mode - doing so will destroy the pullout factor of the screw.
