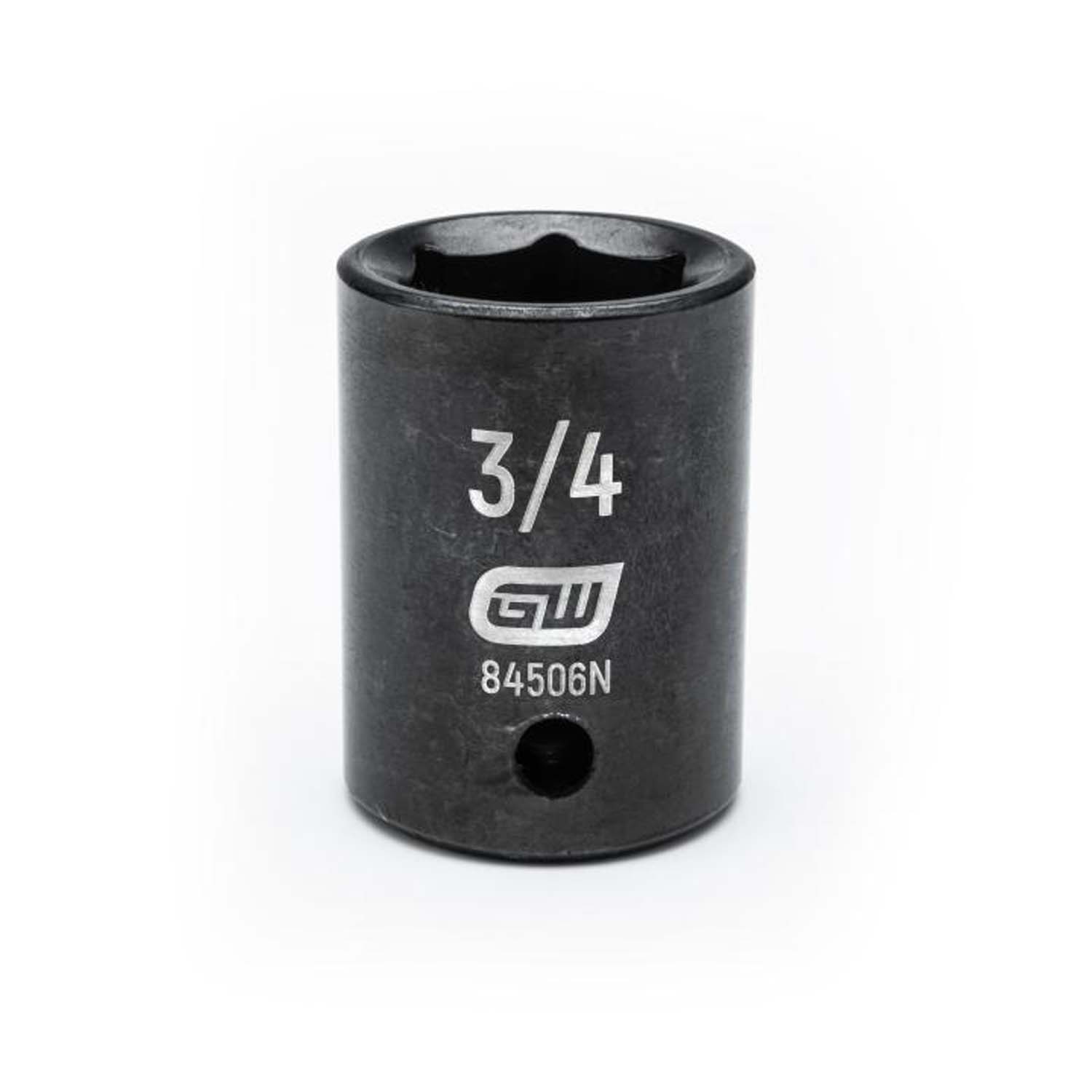

1/2 IN. DRIVE 6 POINT STANDARD IMPACT SAE SOCKET 3/4 IN.
GearWrench
603716
84506N
Description
GEARWRENCH offers a wide range of impact products in open stock & sets that are designed to deliver the performance and strength that the professional users require. They are made from chrome molybdenum alloy steel for exceptional strength and durability. Our sockets have a manganese phosphate coating to resist corrosion. The sockets also feature highly visible laser etched markings and a secondary size hard stamping. The sockets feature off-corner loading to reduce fastener rounding. The GEARWRENCH impact product family will allow the professional user to FORGE AHEAD.
Key Features
- Chrome molybdenum alloy steel (Cr-Mo) for exceptional strength and durability
- Off-corner loading design reduces fastener rounding
- Black oxide finish to resist corrosion
- High-visibility laser-etched markings provide quick size identification
- Secondary hard stamped size markings
- Meets or exceeds ASME specifications
- Specifications:
- Dim. A : Drive End : 1.173 in
- Dim. B : Wrench End : 1.173 in
- Dim. D : Bolt Clearance : 0.571 in
- Prop 65 : No Warning
- Dim. E : Wrench Depth : 0.512 in
- ASME Specification : B107.2
- Dim. F : Length to Shoulder : 1.614 in
- Overall Length : 1.614 in
- Size : 3/4 in
- Type : Socket
- Packaging : Hang Tab
- Weight (Catalog) : 0.32 lb
- Warranty : Full Lifetime
- Socket Size (SAE) : 3/4 in
- Drive Tang Size : 1/2 in
- Length Format : Standard
- Finish : Black Oxide
- Magnetic : No
- SAE/Metric/Torx : SAE
SAE/Metric - UPC : 099575000638
- Material : Chrome-Molybdenum (Cr-Mo)
- Drive Type : 6 Point
| Item | Description | |
|---|---|---|
 |
603507 | 1/2 IN. DRIVE 6 POINT STANDARD IMPACT SAE SOCKET 1-1/16 IN. |
 |
603545 | 1/2 IN. DRIVE 6 POINT STANDARD IMPACT METRIC SOCKET 24MM |
 |
603546 | 1/2 IN. DRIVE 6 POINT STANDARD IMPACT METRIC SOCKET 22MM |
 |
603547 | 1/2 IN. DRIVE 6 POINT STANDARD IMPACT METRIC SOCKET 21MM |
 |
603548 | 1/2 IN. DRIVE 6 POINT STANDARD IMPACT METRIC SOCKET 19MM |
 |
603549 | 1/2 IN. DRIVE 6 POINT STANDARD IMPACT METRIC SOCKET 18MM |
 |
603550 | 1/2 IN. DRIVE 6 POINT STANDARD IMPACT METRIC SOCKET 17MM |
 |
603551 | 1/2 IN. DRIVE 6 POINT STANDARD IMPACT METRIC SOCKET 16MM |
 |
603552 | 1/2 IN. DRIVE 6 POINT STANDARD IMPACT METRIC SOCKET 15MM |
 |
603553 | 1/2 IN. DRIVE 6 POINT STANDARD IMPACT METRIC SOCKET 13MM |
 |
603554 | 1/2 IN. DRIVE 6 POINT STANDARD IMPACT METRIC SOCKET 12MM |
 |
603555 | 1/2 IN. DRIVE 6 POINT STANDARD IMPACT METRIC SOCKET 10MM |
 |
603556 | 1/2 IN. DRIVE 6 POINT STANDARD IMPACT SAE SOCKET 11/16 IN. |
 |
603557 | 1/2 IN. DRIVE 6 POINT STANDARD IMPACT SAE SOCKET 5/8 IN. |
 |
603558 | 1/2 IN. DRIVE 6 POINT STANDARD IMPACT SAE SOCKET 9/16 IN. |
 |
603559 | 1/2 IN. DRIVE 6 POINT STANDARD IMPACT SAE SOCKET 3/8 IN. |
 |
603715 | 1/2 IN. DRIVE 6 POINT STANDARD IMPACT SAE SOCKET 1/2 IN. |
 |
603717 | 1/2 IN. DRIVE 6 POINT STANDARD IMPACT SAE SOCKET 13/16 IN. |
 |
603718 | 1/2 IN. DRIVE 6 POINT STANDARD IMPACT SAE SOCKET 7/8 IN. |
 |
603719 | 1/2 IN. DRIVE 6 POINT STANDARD IMPACT SAE SOCKET 15/16 IN. |
 |
603720 | 1/2 IN. DRIVE 6 POINT STANDARD IMPACT SAE SOCKET 1-1/8 IN. |
 |
603721 | 1/2 IN. DRIVE 6 POINT STANDARD IMPACT SAE SOCKET 1-3/16 IN. |
 |
603722 | 1/2 IN. DRIVE 6 POINT STANDARD IMPACT SAE SOCKET 1-1/4 IN. |
 |
603723 | 1/2 IN. DRIVE 6 POINT STANDARD IMPACT SAE SOCKET 1-5/16 IN. |
 |
603724 | 1/2 IN. DRIVE 6 POINT STANDARD IMPACT SAE SOCKET 1-3/8 IN. |
 |
603725 | 1/2 IN. DRIVE 6 POINT STANDARD IMPACT SAE SOCKET 1-7/16 IN. |
 |
603726 | 1/2 IN. DRIVE 6 POINT STANDARD IMPACT SAE SOCKET 1-1/2 IN. |
 |
603727 | 1/2 IN. DRIVE 6 POINT STANDARD IMPACT METRIC SOCKET 25MM |
 |
603728 | 1/2 IN. DRIVE 6 POINT STANDARD IMPACT METRIC SOCKET 26MM |
 |
603729 | 1/2 IN. DRIVE 6 POINT STANDARD IMPACT METRIC SOCKET 28MM |
 |
603730 | 1/2 IN. DRIVE 6 POINT STANDARD IMPACT METRIC SOCKET 29MM |
 |
603731 | 1/2 IN. DRIVE 6 POINT STANDARD IMPACT METRIC SOCKET 30MM |
 |
603732 | 1/2 IN. DRIVE 6 POINT STANDARD IMPACT METRIC SOCKET 27MM |
